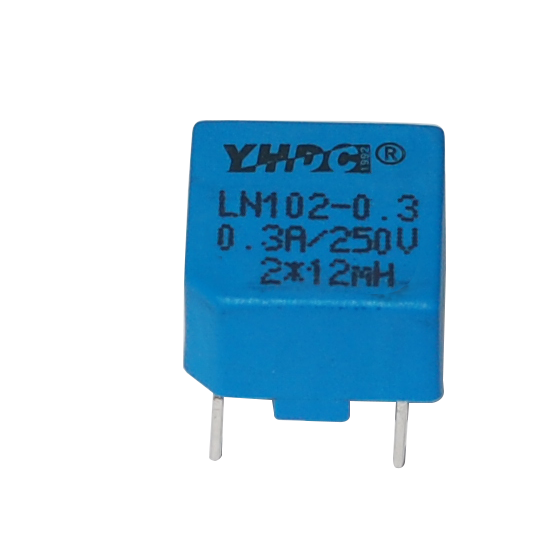

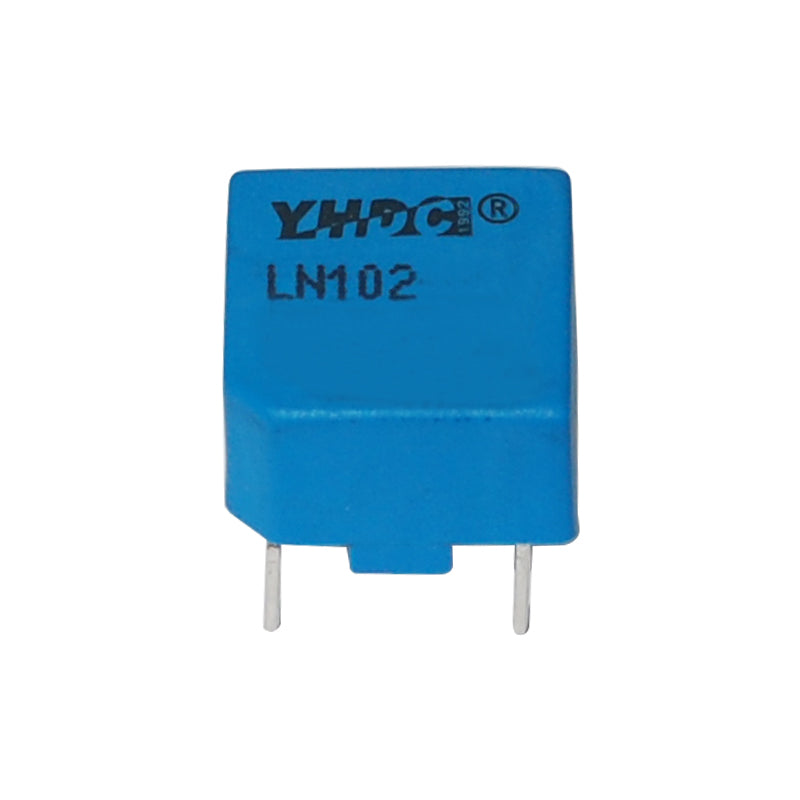

LN series common mode choke LN102 Rated current 0.3～2A resistance 500～70mΩ
LN series common mode choke LN102 Rated current 0.3～2A resistance 500～70mΩ

LN series common mode choke LN102 Rated current 0.3～2A resistance 500～70mΩ

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
It is used for switching power supply, suppressing common node interference signal.

Technical Index:
Mounting type: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +100°C
Storage temperature: -20°C ~ +100°C
Dielectric strength: 1.5KV/1min (between two coils) ; 4KV/1min (between coil & shell)

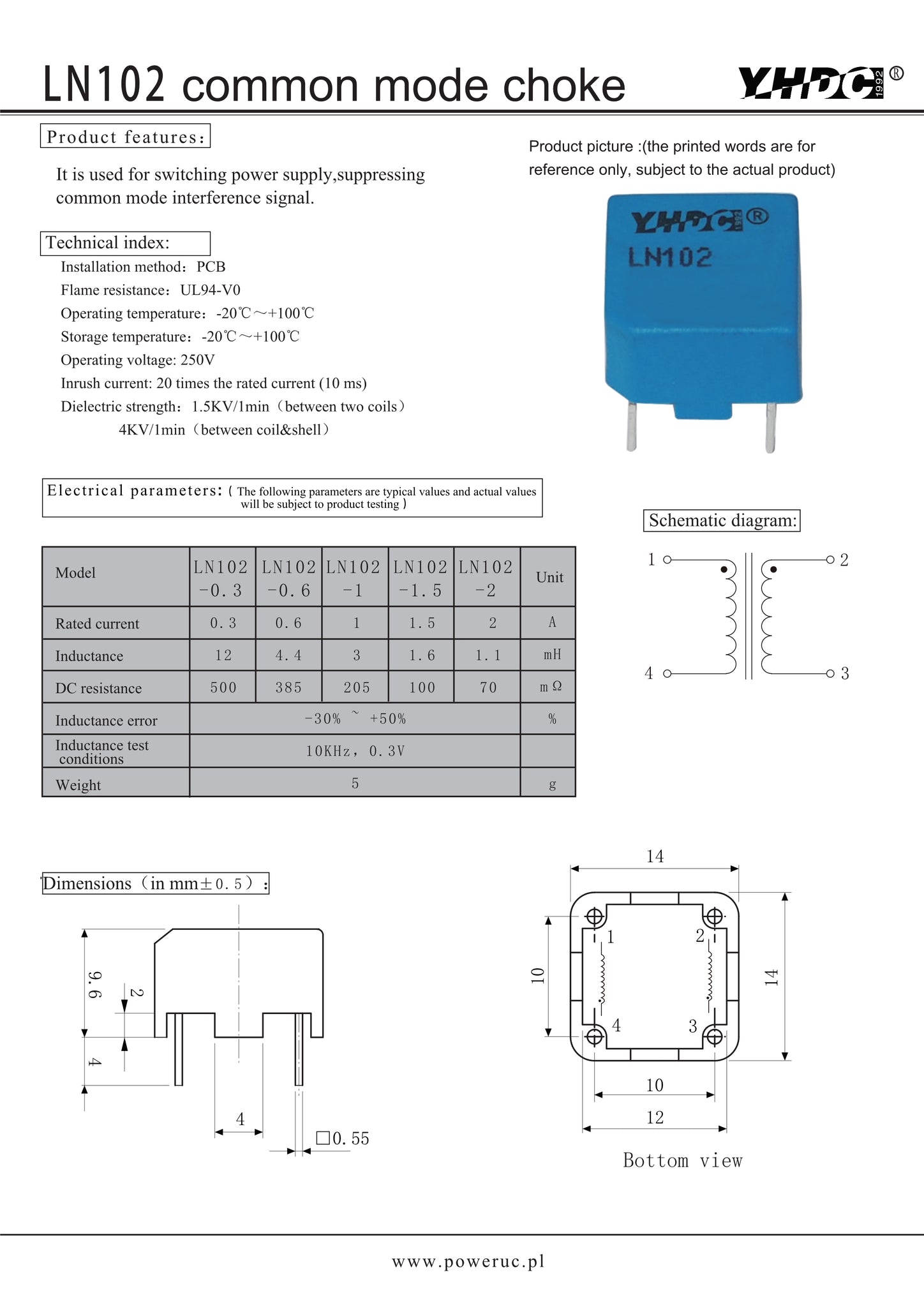

Electrical Parameters:

DOWNLOAD
