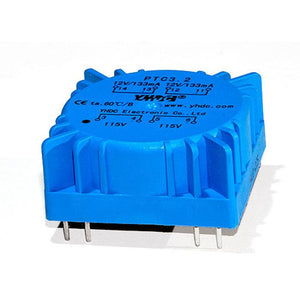

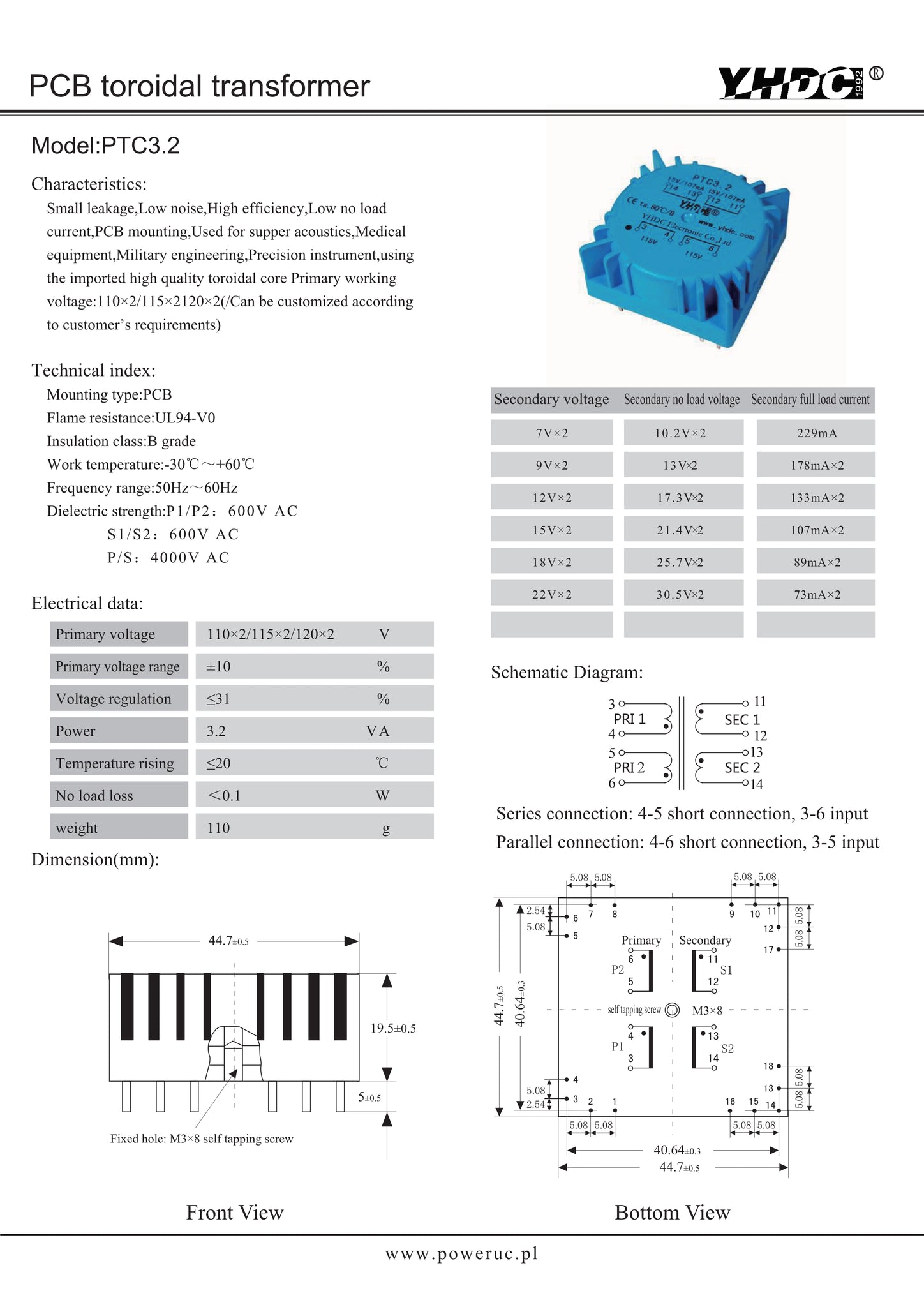

PCB toroidal transformer PTC3.2 110Vx2/115Vx2 3.2VA
Characteristics:
Small leakage, low noise, high efficiency, low no load current, PCB mounting, used for supper acoustics, medical equipment, military engineering, precision instrument, using the imported high quality toroidal core. Primary working voltage: 110x2/115x2/120x2 (can be customized according to customer's requirements).
Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B grade
Work temperature: -30°C ~ +60°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: P1/P2: 600V AC
S1/S2: 600V AC
P/S: 4000V AC
