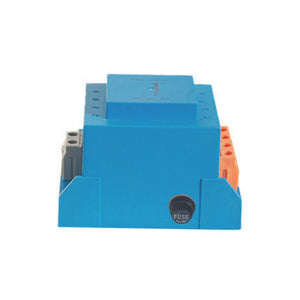

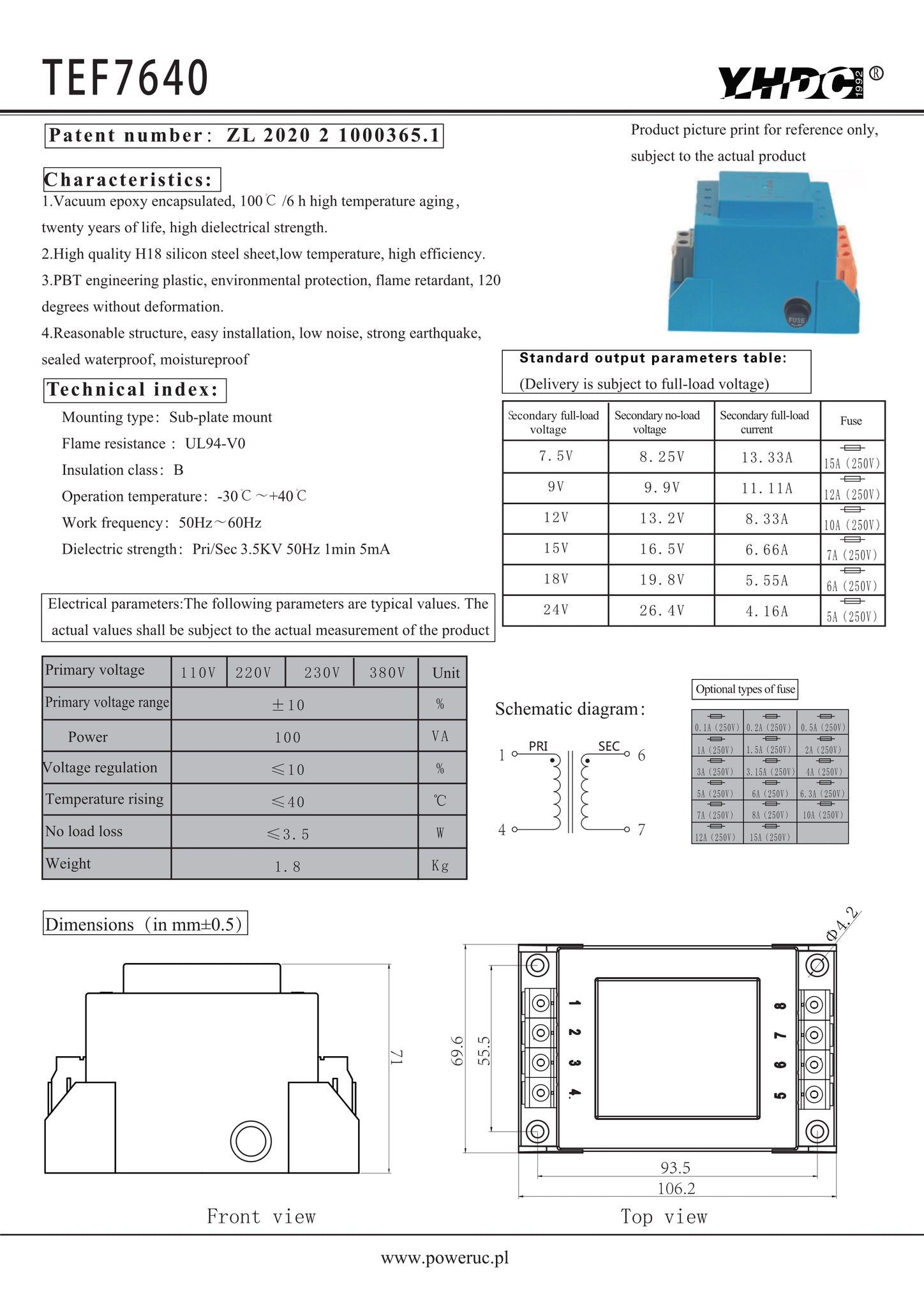

Model:TEF7640

Characteristics:

1.Vacuum epoxy encapsulated, 100℃ /6 h high temperature aging，twenty years of life, high dielectrical strength.

2.High quality H18 silicon steel sheet,low temperature, high efficiency.

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees without deformation.

4.Reasonable structure, easy installation, low noise, strong earthquake, sealed waterproof, moistureproof

Technical index:

Mounting type：Sub-plate mount

Flame resistance ：UL94-V0

Insulation class：B

Operation temperature：-30℃～+40℃

Work frequency：50Hz～60Hz

Dielectric strength：Pri/Sec 3.5KV 50Hz 1min 5mA

Electrical parameters:The following parameters are typical values. The actual values shall be subject to the actual measurement of the product
