Monitoring relay JXW - PowerUC

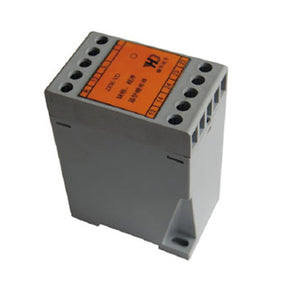

Monitoring relay JXW

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
Alarm signal output by relay touching points, sub-plate mounting/din-rail mounting, three-phase power supply phase sequence, phase lacking monitoring.

Safety Index:
Flame resistance: UL94-V0
Dielectric strength: Primary/secondaries/power > 2.5KV AC/1min

Operating Environment:
Environment temperature: -25°C ~ +55°C
Altitude: ≤1000m
Humidity: 85%

Technical Parameters:
Monitor scope: 260V-420V three-phase
Response time: ≤1s
Power: 2VA
Alarm content: Phase lacking, phase sequence unnormal
Working voltage: 380V AC
Working temperature: -25°C ~ +50°C
Output relay: 250V 4A (Group 2 converting point)
