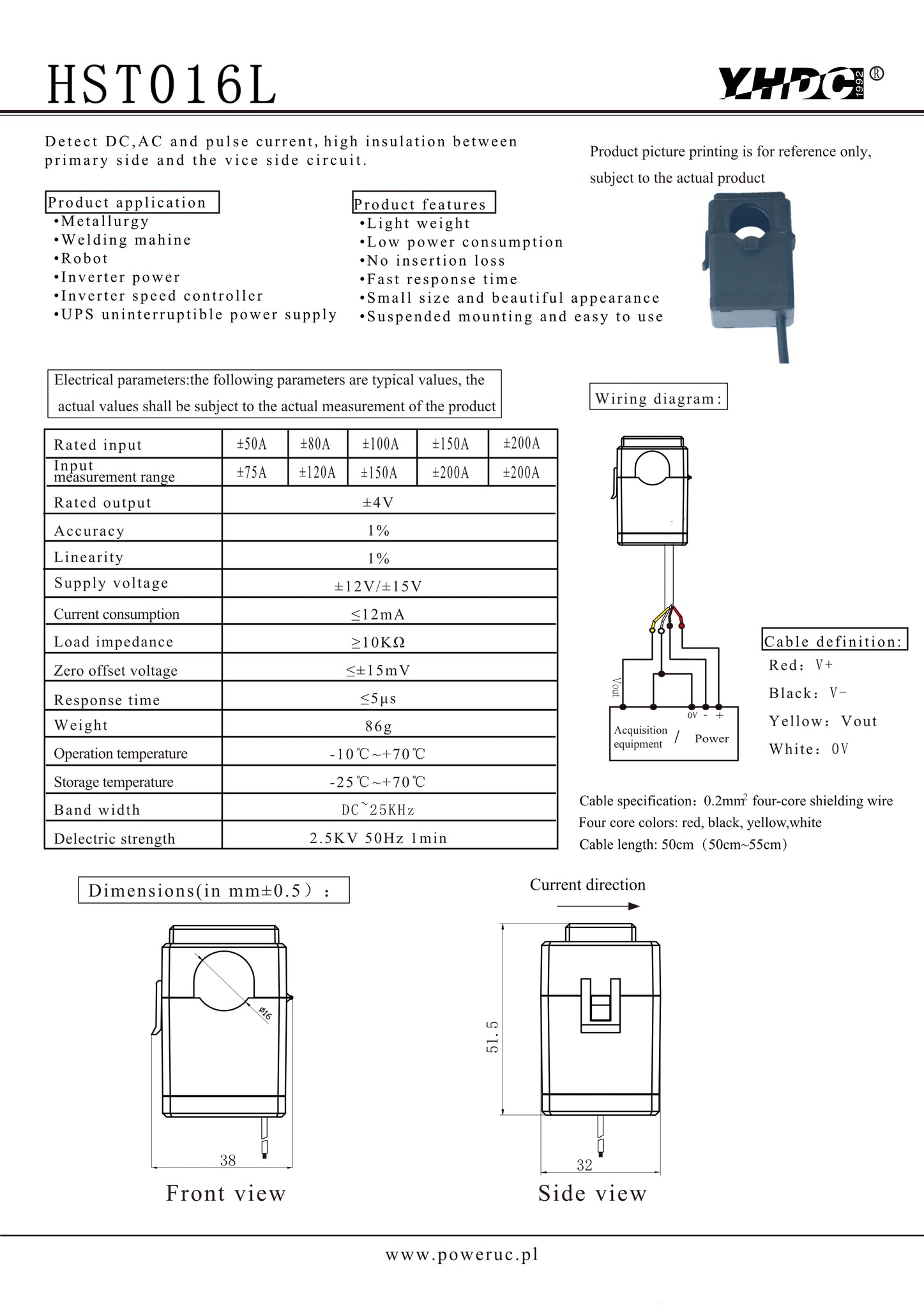

Model：HST016L

Detect DC,AC and puls e current , high insulation between primary side and the vice side circuit.

Technical indicators:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC~25kHz

Dielectric strength：2.5KV 50Hz 1min

Electric parameters:

DOWNLOAD
