Split Core Current Transformer SCT010TL-D rated input 5A/10A/20A/30A/50A rated output 1V/3V5V

Split Core Current Transformer SCT010TL-D rated input 5A/10A/20A/30A/50A rated output 1V/3V5V

PowerUC

Shipping calculated at checkout.
Only 2 left!

Model: SCT010TL-D

Characteristics:

Safety lock buckle, easy installation, built-in rectifier,cable output.

Technical indicators:

Mounting type: Free hanging (In-Line)

Material of core：Ferrite

Applicable standards：GB20840-2014

Operating temperature：-25℃～+60℃

Storage temperature：-30℃～+90℃

Frequency range：50Hz-1KHz

Waterproof grade: IP00

Dielectric strength：Input (bare conductor)/Output AC 800V/1min 50Hz

Output/housing AC 3.5KV/1min 50Hz

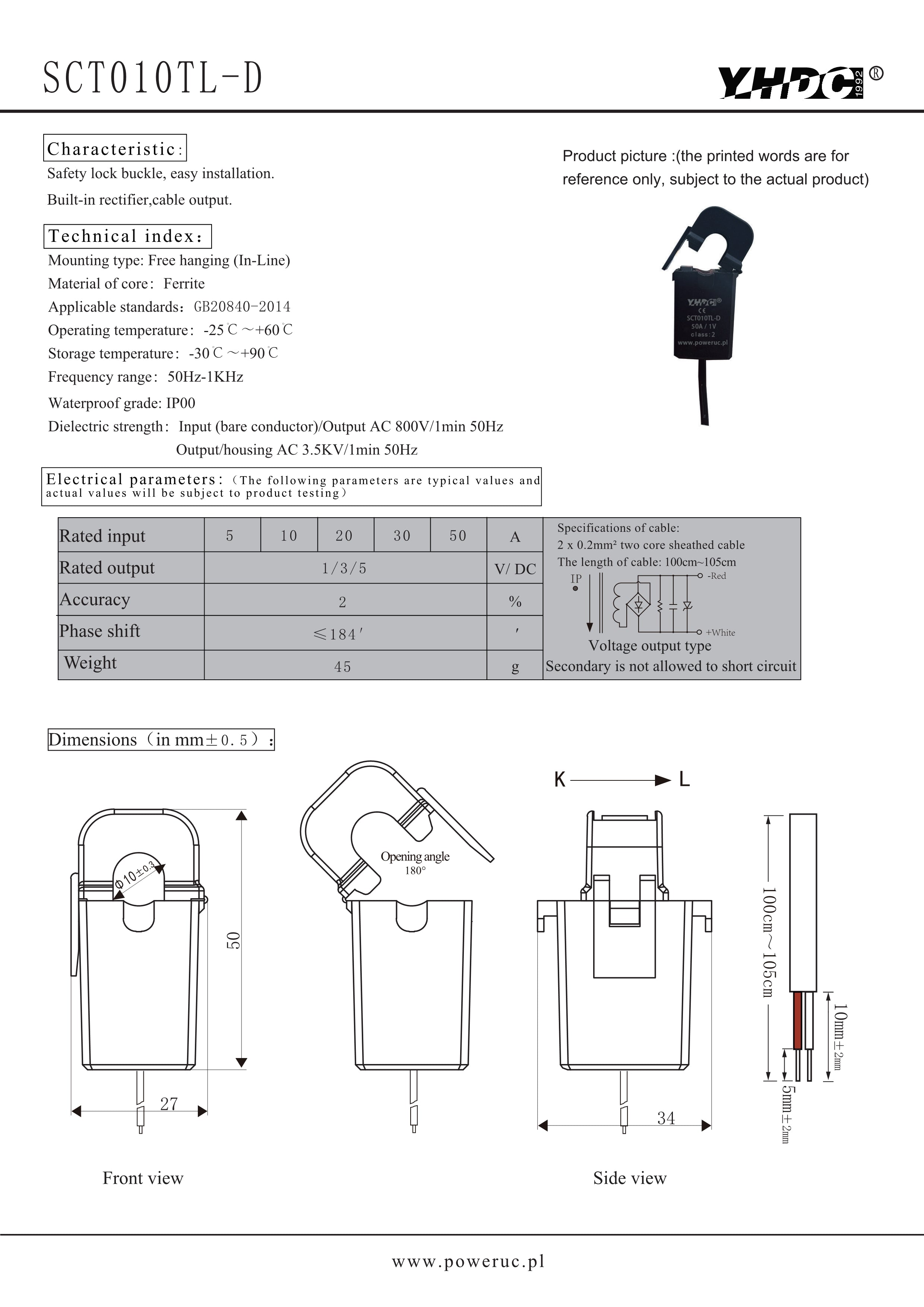

Specification:

DOWNLOAD
