Split Core Current Transformer SCT016L rated input 10A/30A/50A/80A/100A/120A rated output 20mA/10mA/50mA/25mA/100mA/33mA/40mA/60mA/0.333V/1V/3V/5V

PowerUC

Shipping calculated at checkout.

Quantity

Only 0 left!

Will be in stock after

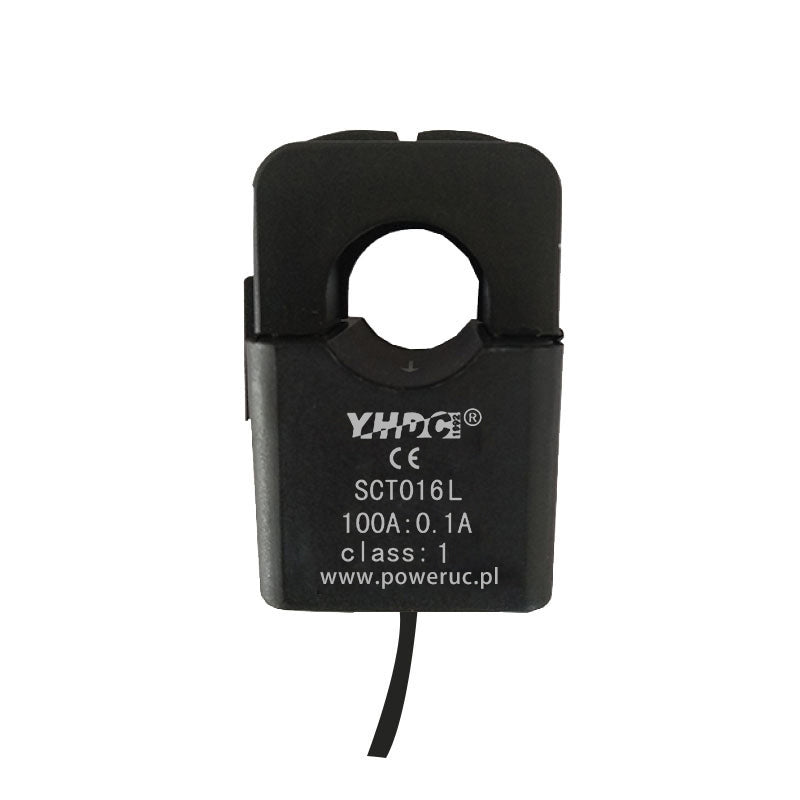

Model: SCT016L

Characteristics:

Safety lock buckle, easy installation, cable output.

Technical indicators:

Mounting type: Free hanging (In-Line)

Material of core：Ferrite

Applicable standards：GB20840-2014

Operating temperature：-25℃～+60℃

Storage temperature：-30℃～+90℃

Frequency range：50Hz-1KHz

Waterproof grade: IP00

Dielectric strength：Input (bare conductor)/Output AC 800V/1min 50Hz

Output/HousingAC 3.5KV/1min 50Hz

Specification:

Split core current transformer SCT013 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA / 1V / 0.333V

Split Core Current Transformer SCT010T-D rated input 5A 10A 20A 30A 50A rated output 1V 3V 5V

Split Core Current Transformer SCT024TS rated input 50A 100A 150A 200A 250A 300A 400A rated output 20mA/50mA/80mA/100mA/1A/5A/0.333V/1V/3V/5V

Split Core Current Transformer SCT016T-D rated input 30A 50A 60A 80A 100A rated output 1V 3V 5V

Split Core Current Transformer SCT006 rated input 1A 5A 10A 20A rated output 1mA 2.5mA 5mA 10mA 20mA 25mA
