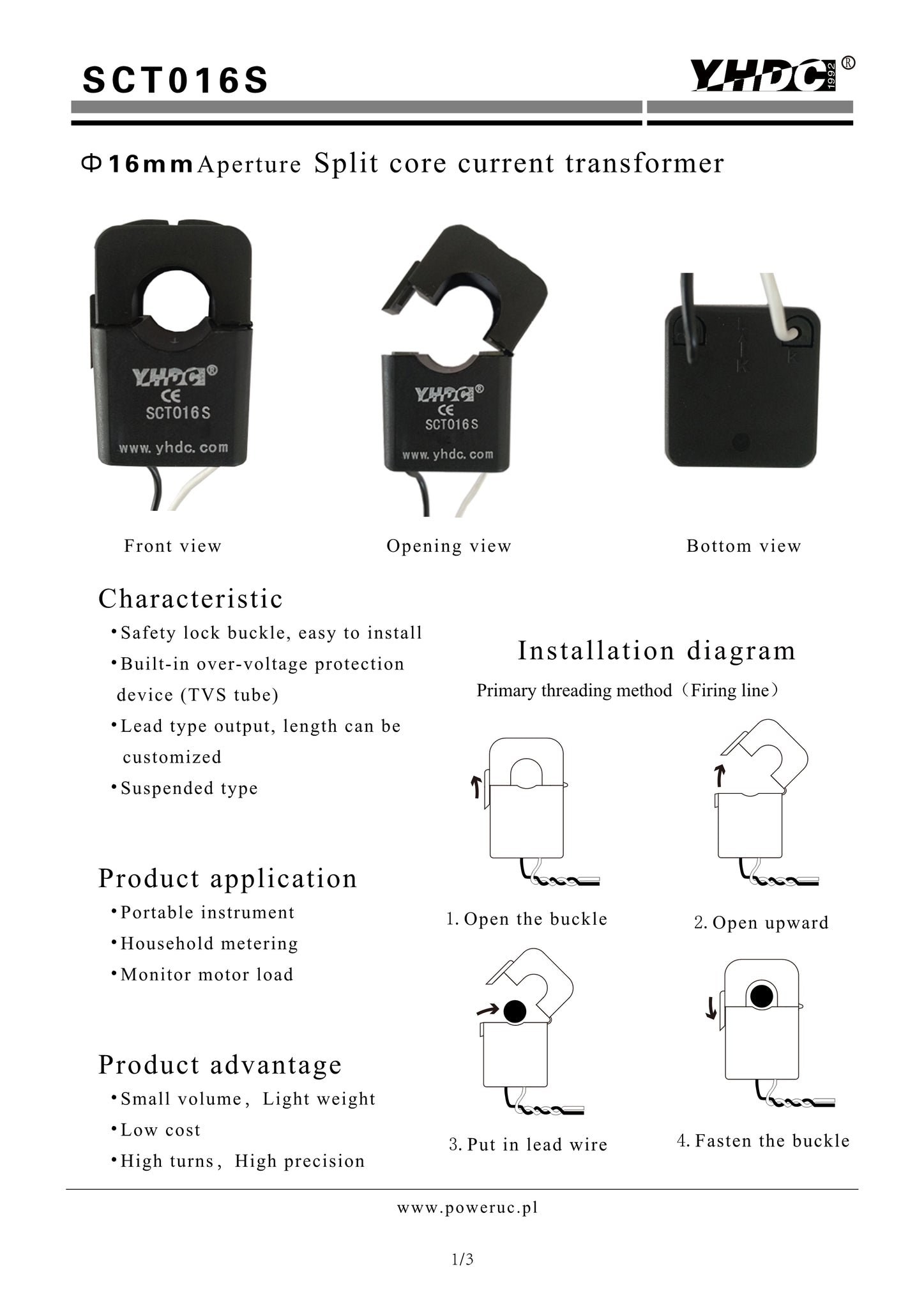

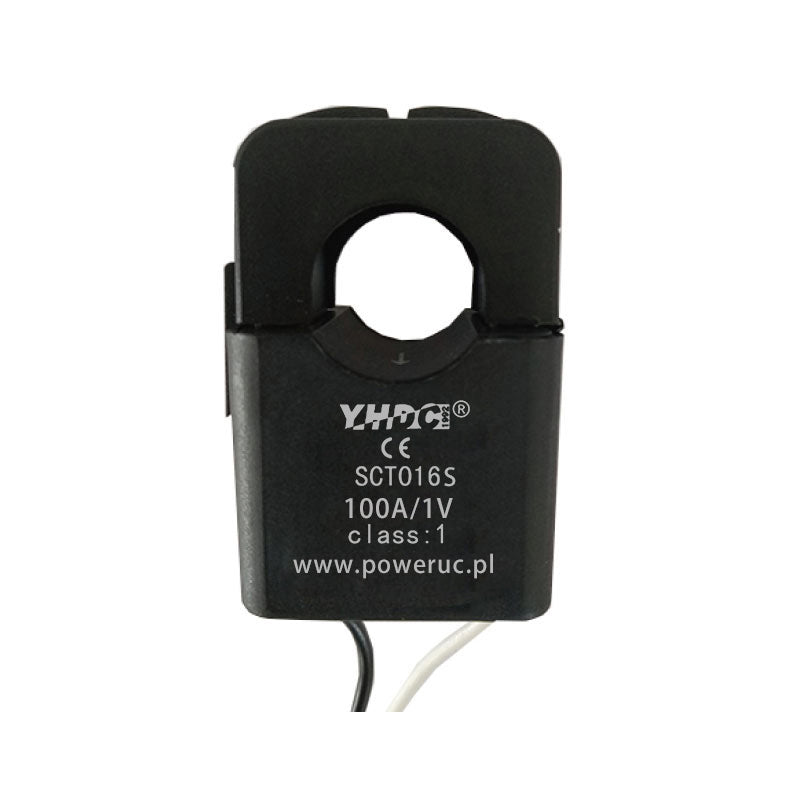

Split Core Current Transformer SCT016S rated input 50A 80A 100A 120A 150A 160A 200A rated output 40mA 50mA 100mA 1A 0.333V 1V 3V 5V
Split Core Current Transformer SCT016S rated input 50A 80A 100A 120A 150A 160A 200A rated output 40mA 50mA 100mA 1A 0.333V 1V 3V 5V
Split Core Current Transformer SCT016S rated input 50A 80A 100A 120A 150A 160A 200A rated output 40mA 50mA 100mA 1A 0.333V 1V 3V 5V

Split Core Current Transformer SCT016S rated input 50A 80A 100A 120A 150A 160A 200A rated output 40mA 50mA 100mA 1A 0.333V 1V 3V 5V

PowerUC

Shipping calculated at checkout.
Only 56 left!

Characteristic:

Safety lock buckle, easy installation, cable output

Technical Indicators:

Mounting type: Free hanging (In-Line)

Material of core: Laminated silicon steel

Applicable standards: GB20840-2014

Operating temperature: -25℃ ~ +60℃

Storage temperature: -30℃ ~ +90℃

Frequency range: 50Hz-60Hz

Waterproof grade: IP00

Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz

Output/Housing AC 3.5KV/1min 50Hz

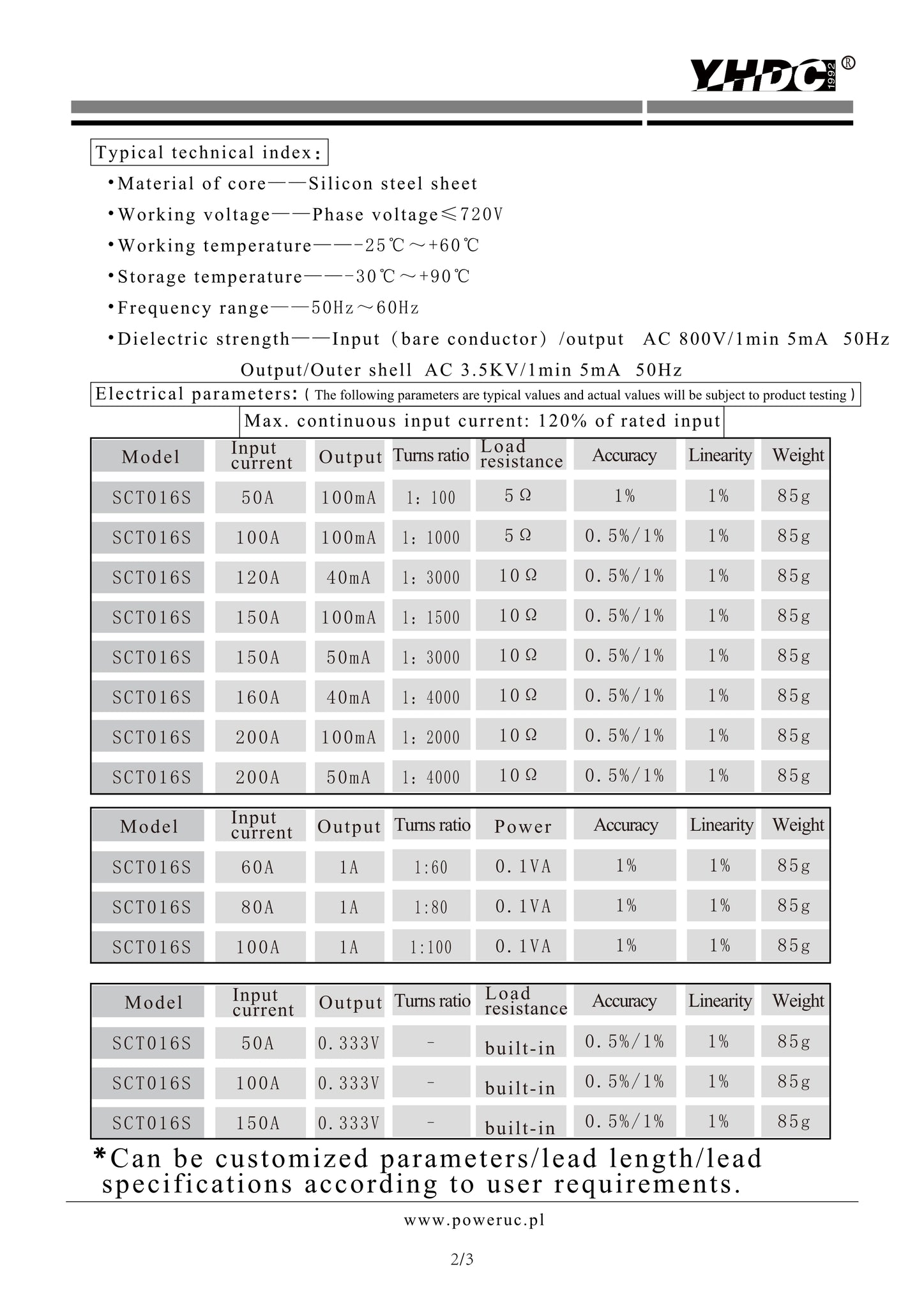

Electric Parameter:


DOWNLOAD-1A CURRENT TYPE OUTPUT

DOWNLOAD-mA CURRENT TYPE OUTPUT

DOWNLOAD-VOLTAGE TYPE OUTPUT
