Split Core Current Transformer SCT016TS-D rated input 20A 30A 50A 80A 100A 120A 150A rated output 1V/3V/5V

Split Core Current Transformer SCT016TS-D rated input 20A 30A 50A 80A 100A 120A 150A rated output 1V/3V/5V

PowerUC

Shipping calculated at checkout.
Only 20 left!

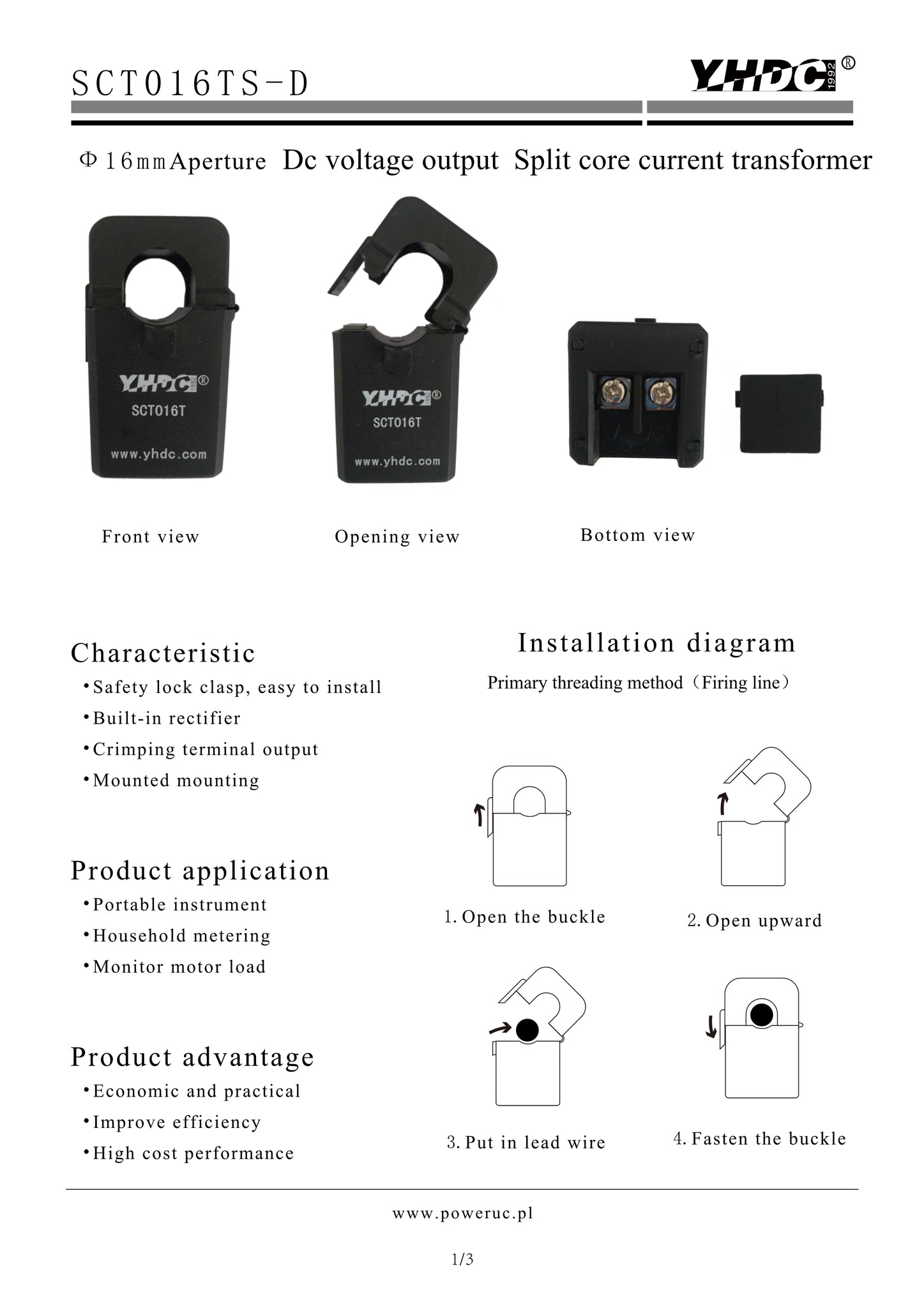

Characteristic:

Suspended mounted , crimp terminal output

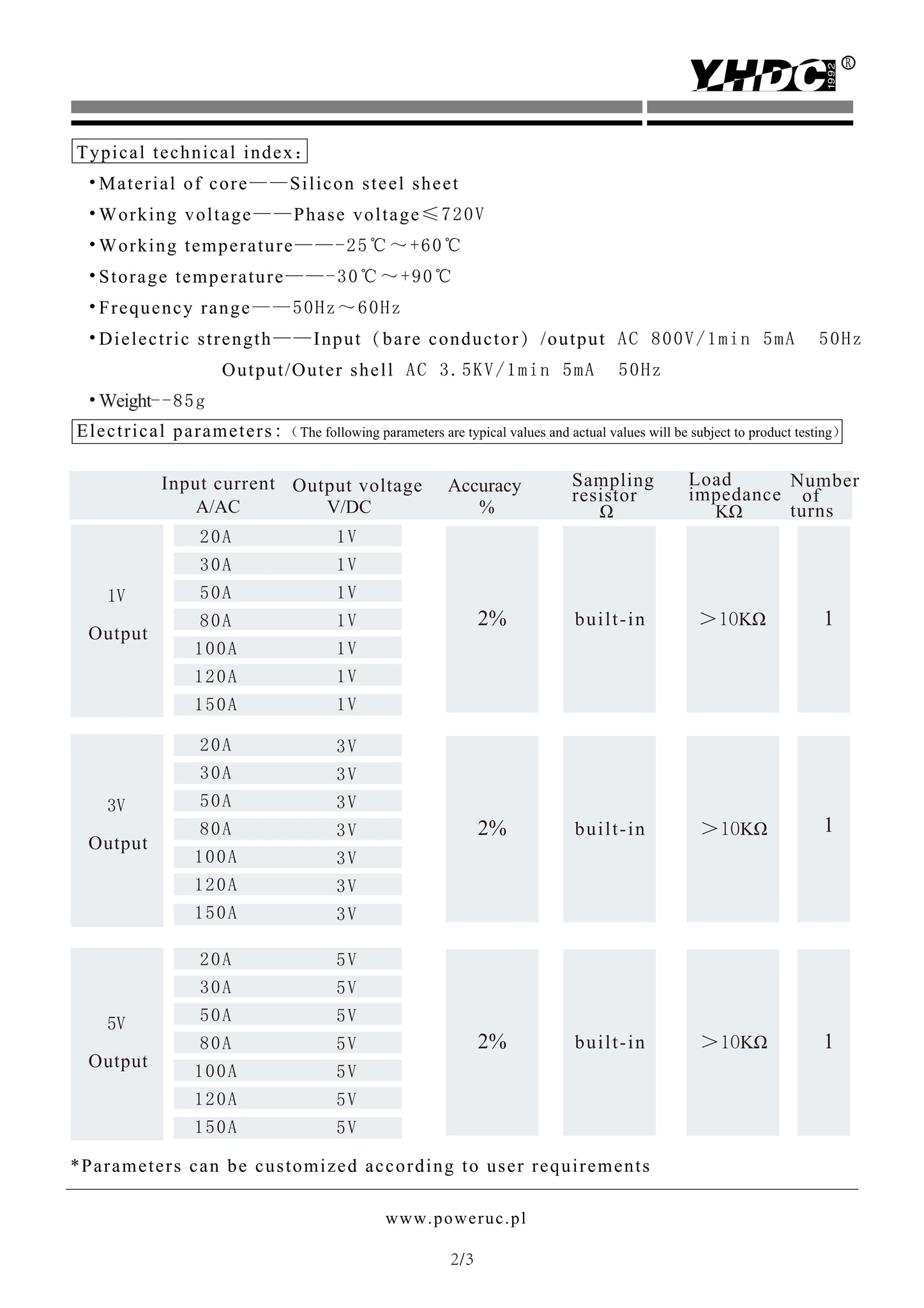

Typical technical index：

  • Material of core——Silicon steel sheet
  • Working voltage——Phase voltage≤720V
  • Working temperature——-25℃～+60℃
  • Storage temperature——-30℃～+90℃
  • Frequency range——50Hz～60Hz
  • Dielectric strength——Input（bare conductor）/output AC 800V/1min 5mA 50Hz

Output/Outer shell AC 3.5KV/1min 5mA 50Hz

Electrical parameters:

DOWNLOAD
