Split core current transformer SCT030HN rated input 10A 20A 30A 50A 60A 70A 80A rated output 20mA/0.333V

PowerUC

€17,40

Unit price per

Shipping calculated at checkout.

Quantity

Only 19 left!

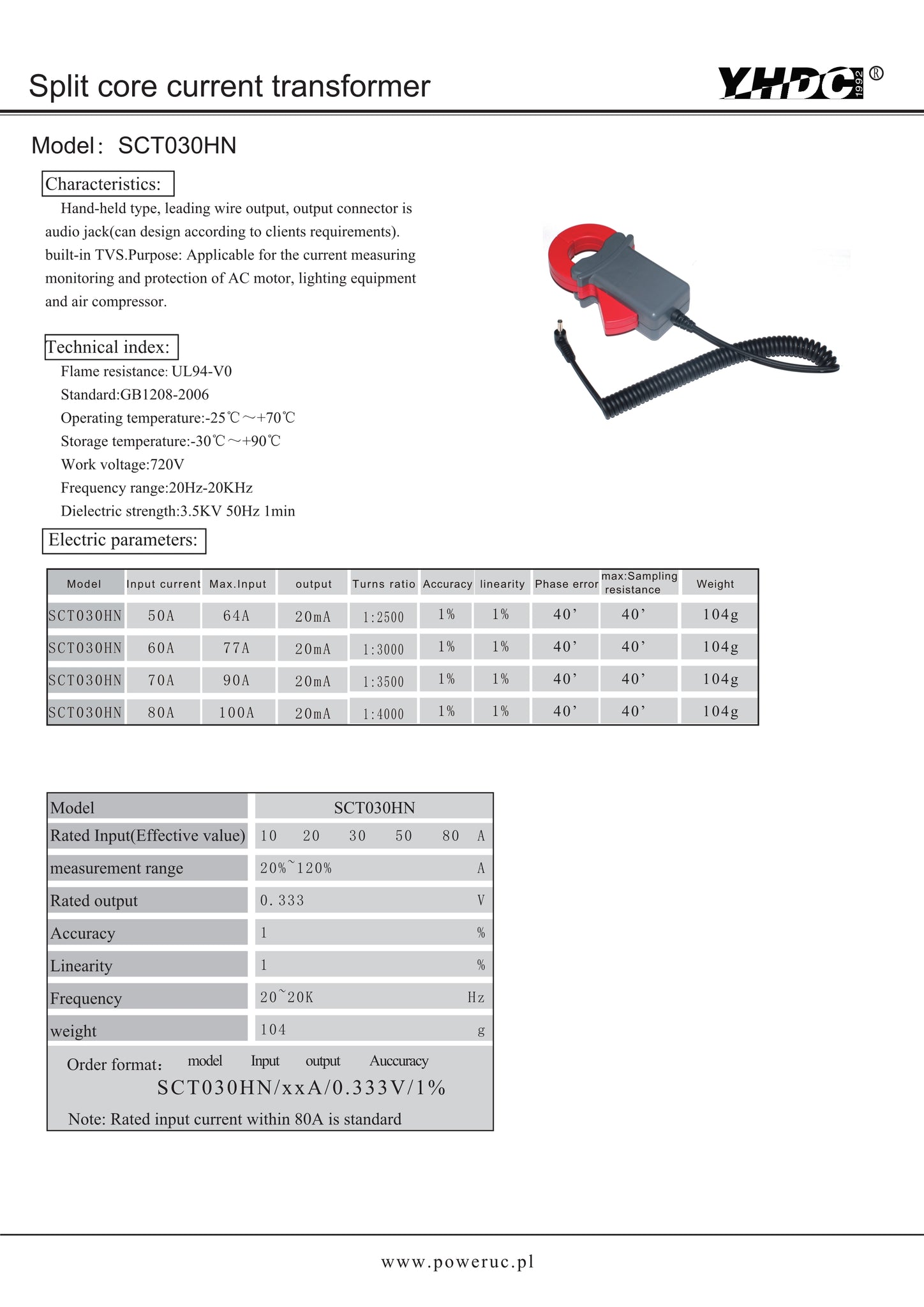

Model：SCT030HN

Characteristics:

Hand-held type, leading wire output, output connector is audio jack(can design according to clients requirements). built-in TVS.Purpose: Applicable for the current measuring monitoring and protection of AC motor, lighting equipment and air compressor.

Technical index:

Flame resistance: UL94-V0

Standard:GB1208-2006

Operating temperature:-25℃～+70℃

Storage temperature:-30℃～+90℃

Work voltage:720V

Frequency range:20Hz-20KHz

Dielectric strength:3.5KV 50Hz 1min

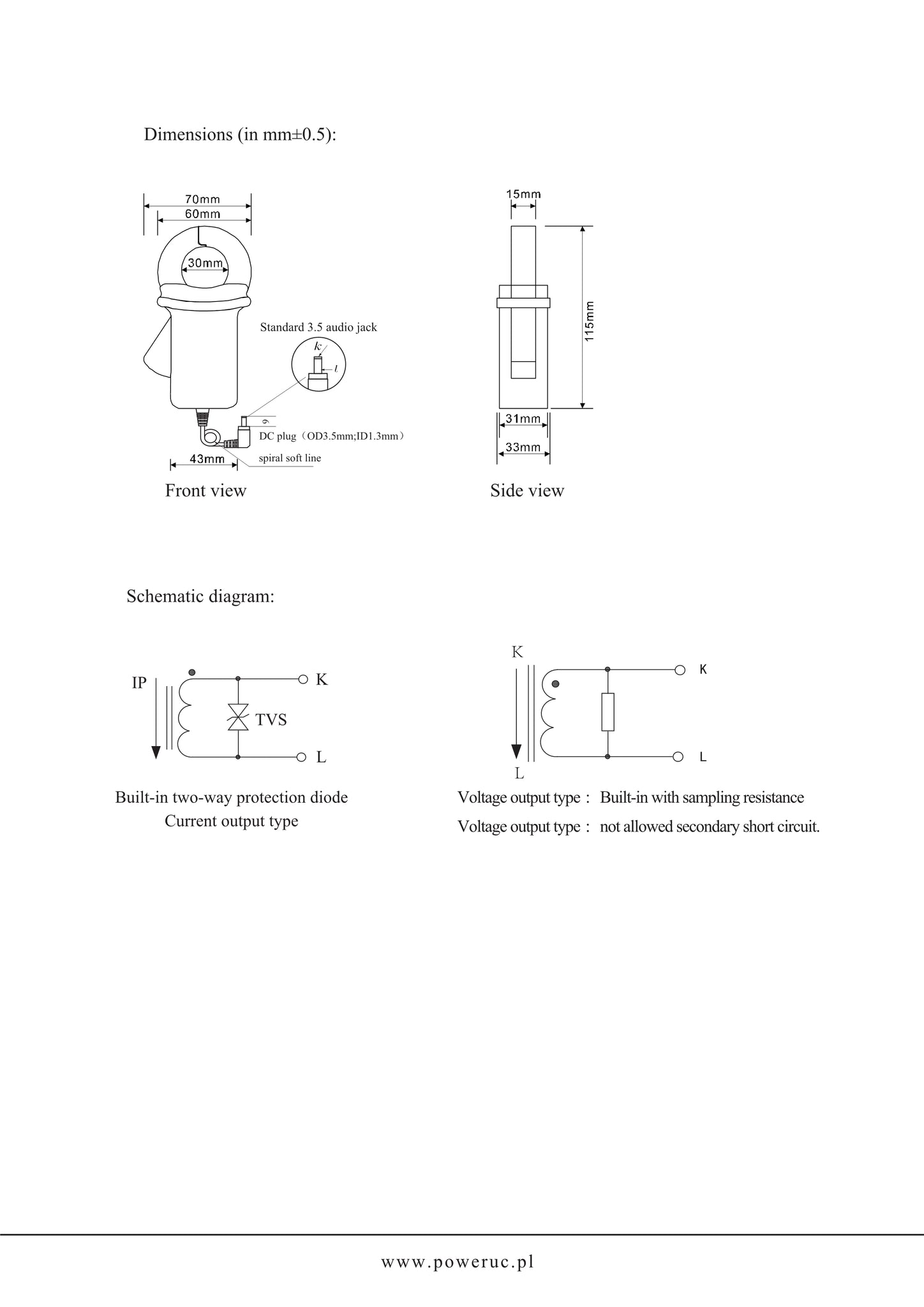

Electric parameters:

DOWNLOAD
