Split core current transformer SCT032R rated input 100A 200A 300A 400A 500A 600A rated output 50mA/100mA/200mA/0.333V

PowerUC

Shipping calculated at checkout.

Quantity

Only 20 left!

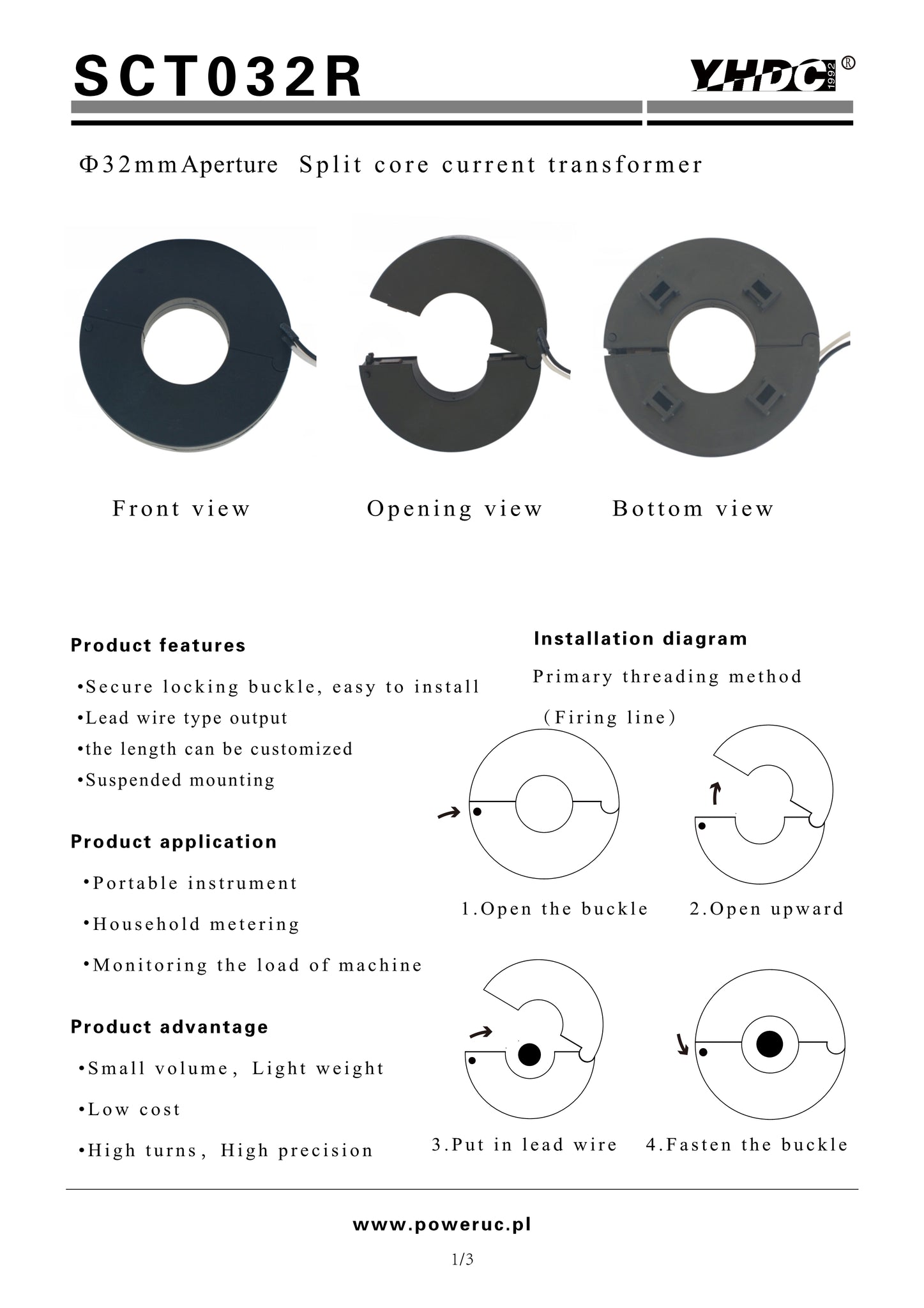

Characteristic:

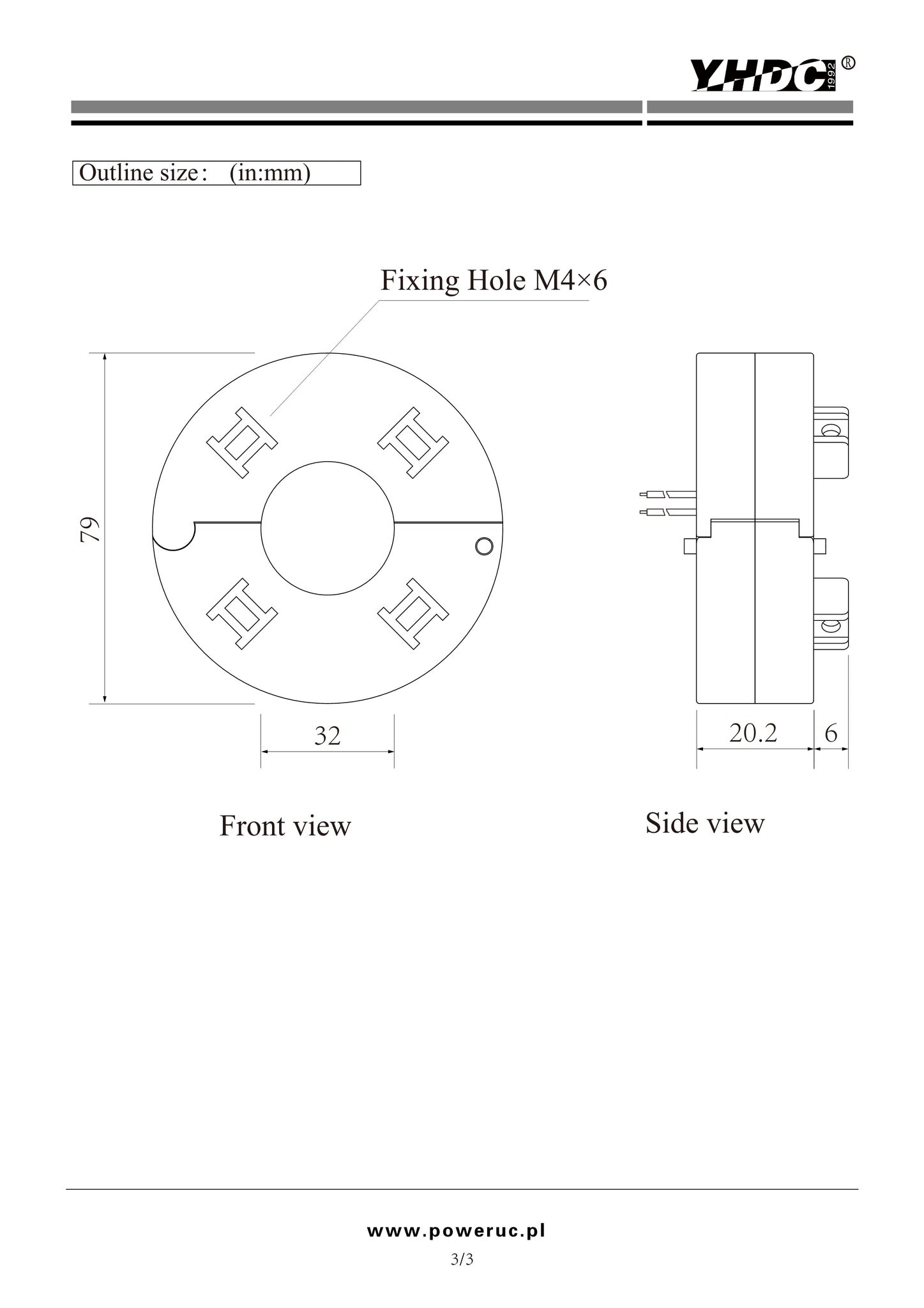

Split core structure, hanging installation, window shape: round, diameter: 32mm. Secondary leading wire output, leads length: 1.5m.

Technical Indicators:

Material of core: Laminated silicon steel

Fire resistance property: UL94-V0

Work voltage: ≤720V

Work temperature: -30°C ~ +65°C

Storage temperature: -40°C ~ +85°C

Frequency range: 50Hz ~ 60Hz

Waterproof grade— —IP00

Dielectric strength: AC 3.5KV/1min

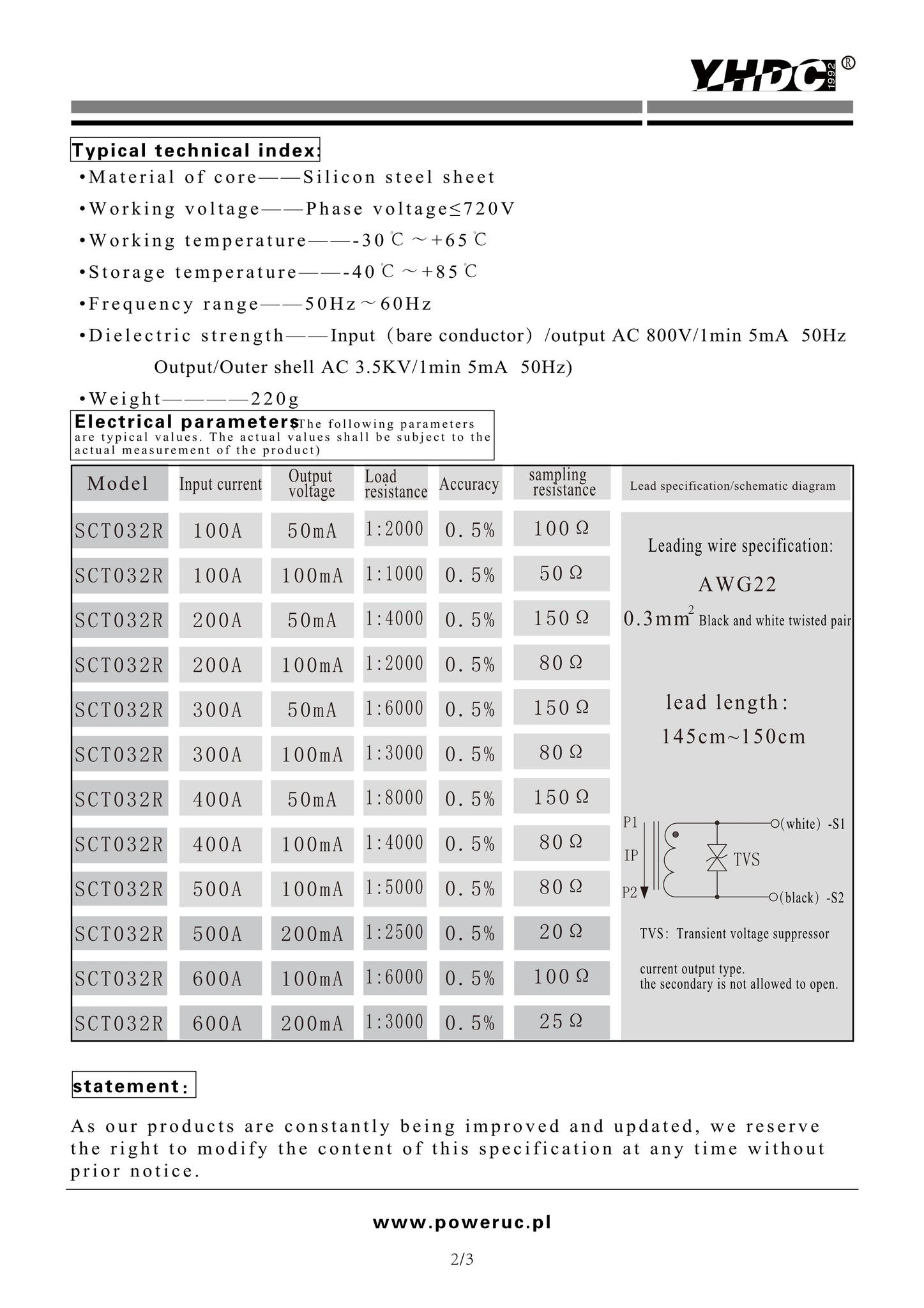

Electric Parameter:
