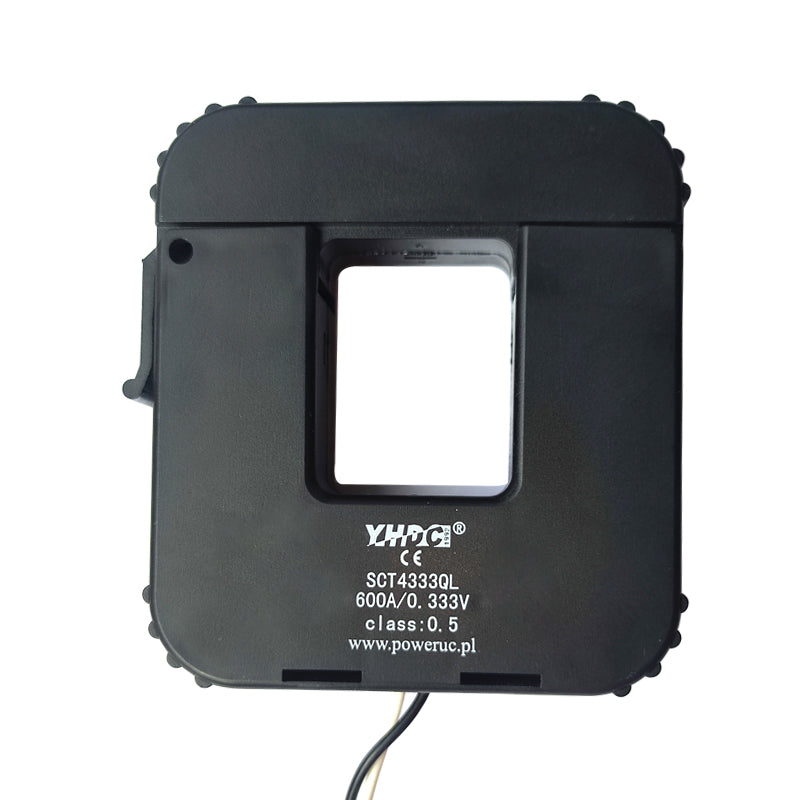

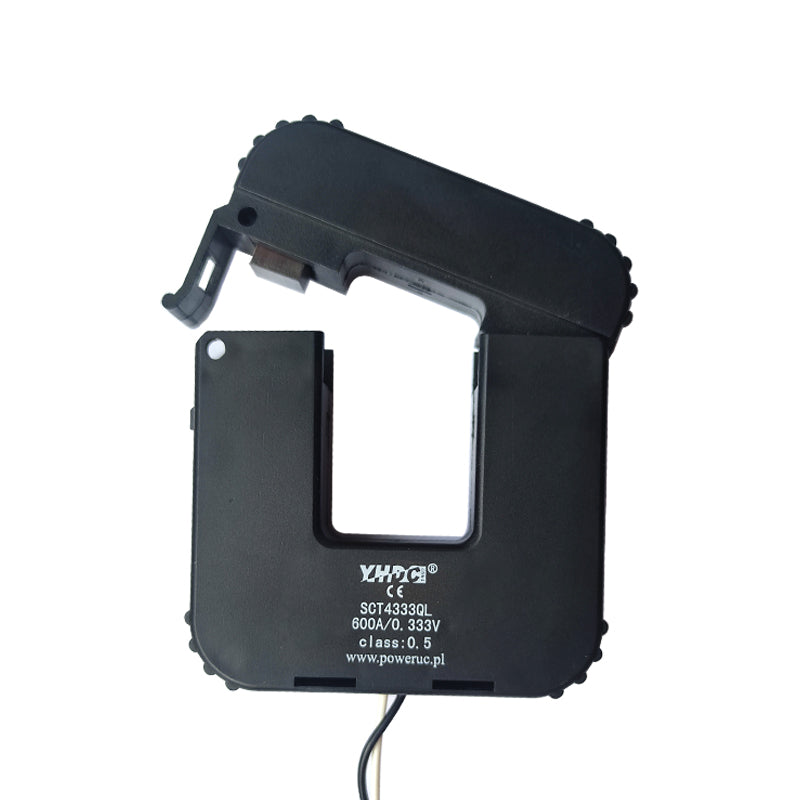

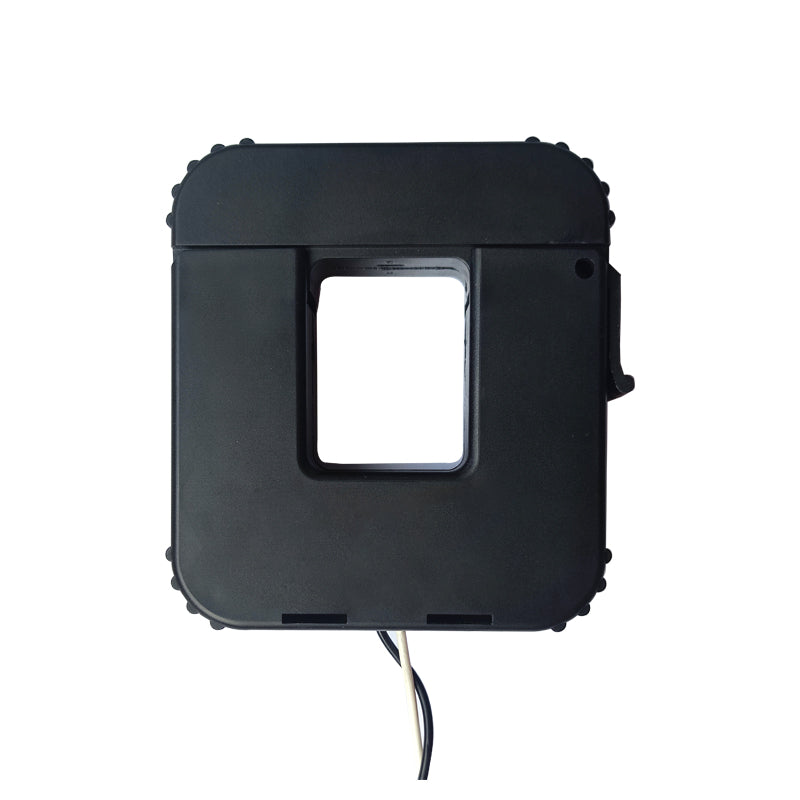

Split Core Current Transformer SCT4333QL rated input 100A 200A 300A 400A 500A 600A rated output 50mA/0.1A/1A/5A/0.333V
Split Core Current Transformer SCT4333QL rated input 100A 200A 300A 400A 500A 600A rated output 50mA/0.1A/1A/5A/0.333V
Split Core Current Transformer SCT4333QL rated input 100A 200A 300A 400A 500A 600A rated output 50mA/0.1A/1A/5A/0.333V
Split Core Current Transformer SCT4333QL rated input 100A 200A 300A 400A 500A 600A rated output 50mA/0.1A/1A/5A/0.333V

Split Core Current Transformer SCT4333QL rated input 100A 200A 300A 400A 500A 600A rated output 50mA/0.1A/1A/5A/0.333V

PowerUC

Shipping calculated at checkout.
Only 12 left!

Model：SCT4333QL

Characteristic:

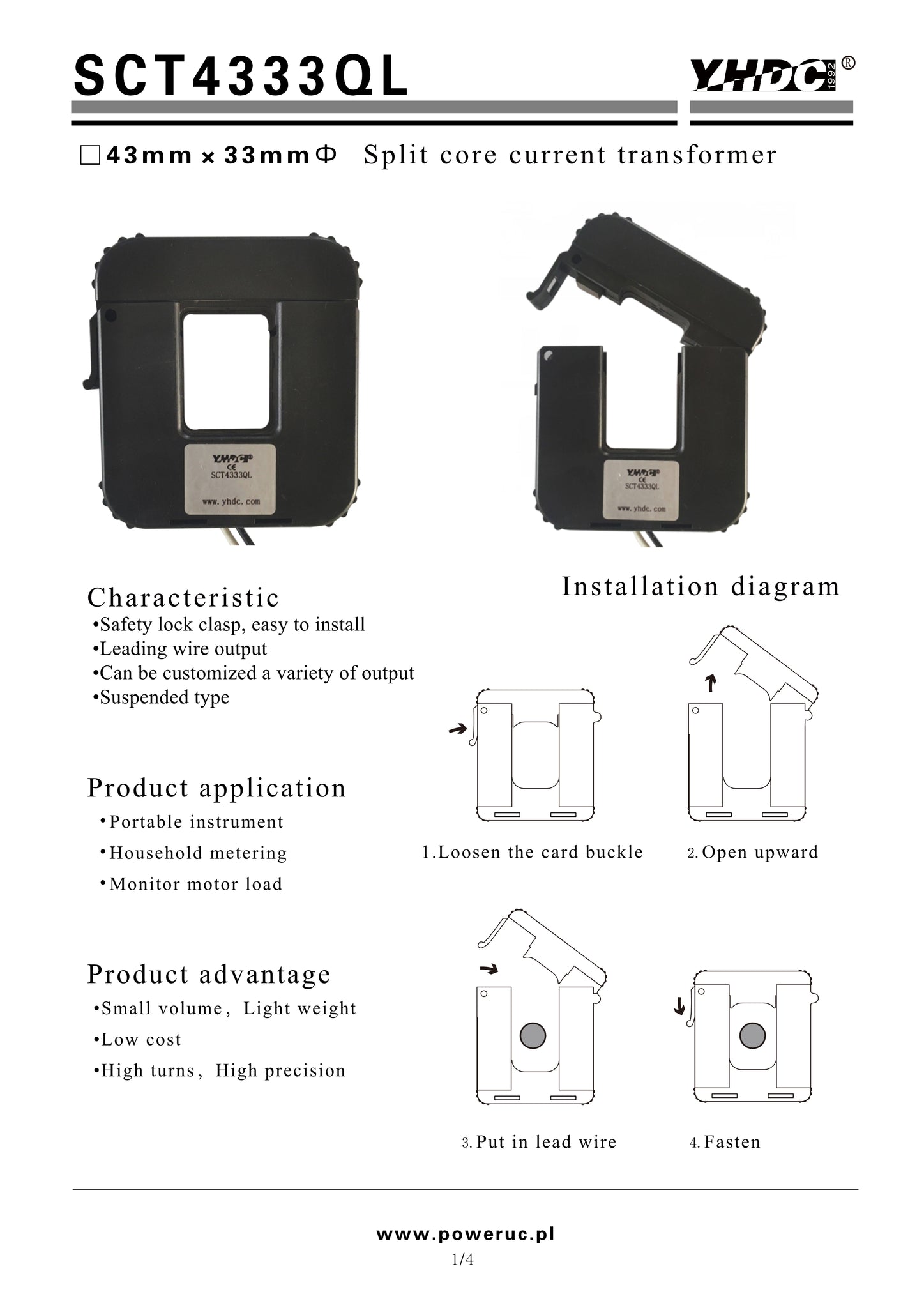

Safety lock buckle, easy installation.

Technical Indicators:

Mounting type: Free hanging (In-Line)
Material of core: Laminated silicon steel
Applicable standard: GB20840-2014
Operating temperature: -25℃ ~ +70℃
Storage temperature: -40℃ ~ +85℃
Frequency range: 50Hz-60Hz
Waterproof grade: IP00
Dielectric strength: 3.5KV 50Hz 1min(enclosure/output)

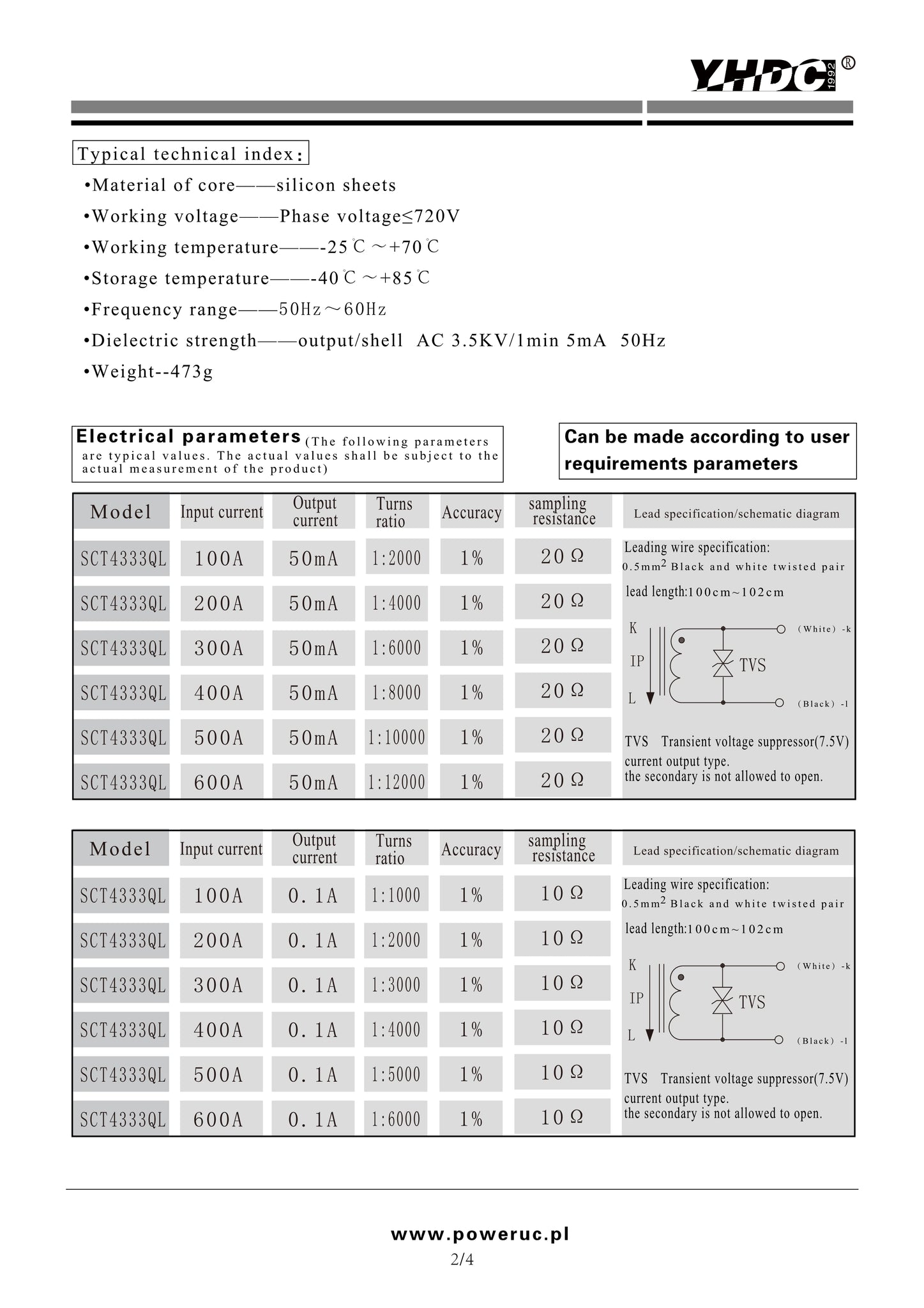

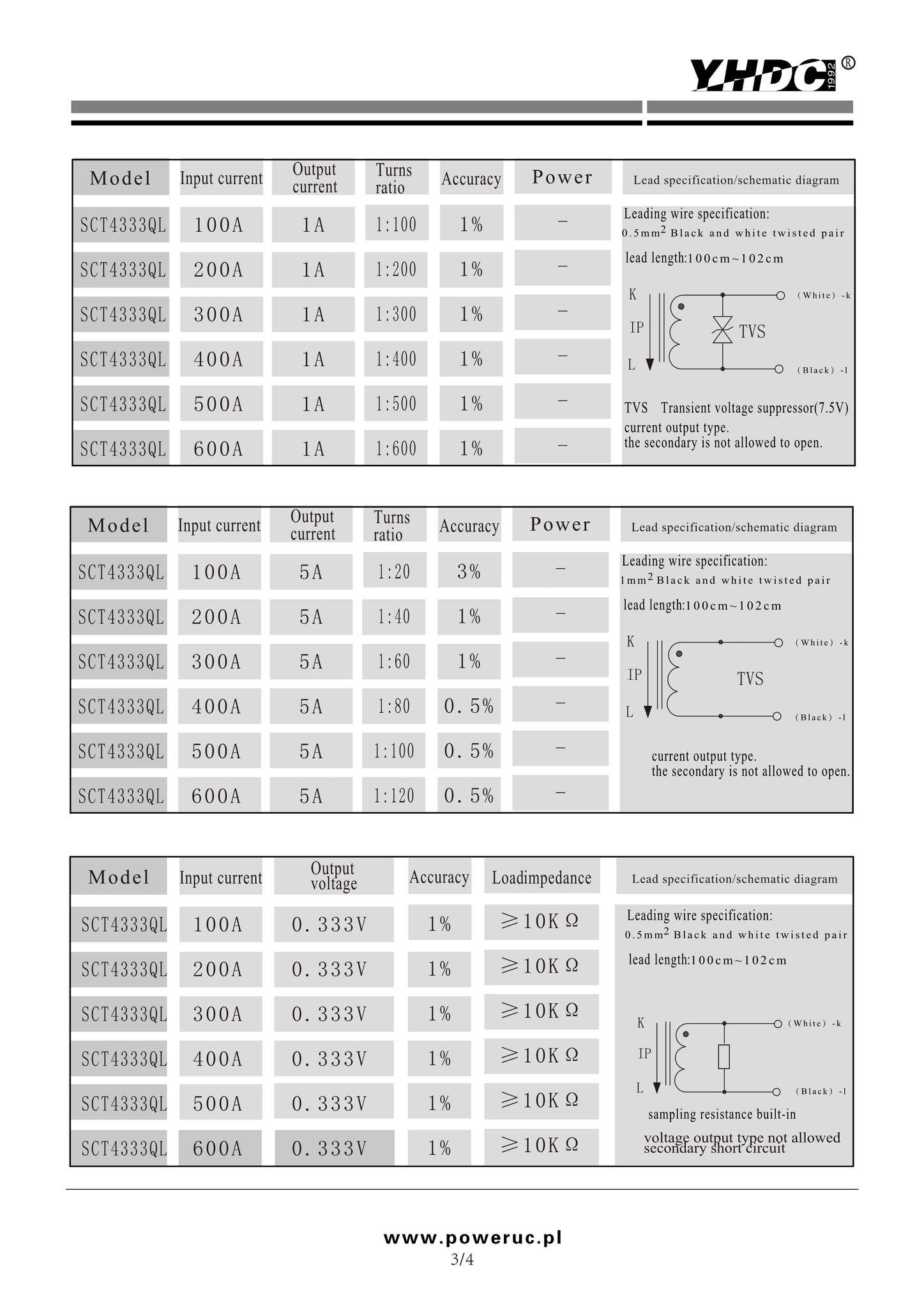

Electric Parameter:

DOWNLOAD-MA CURRENT TYPE OUTPUT

DOWNLOAD-1A CURRENT TYPE OUTPUT

DOWNLOAD-5A CURRENT TYPE OUTPUT

DOWNLOAD-VOLTAGE TYPE OUTPUT
