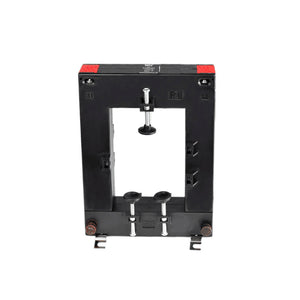

Split core current transformer SCT8050QT rated input 250A/400A/500A/800A/1000A/1500A/2000A rated output 1A/5A /0.333V

PowerUC

Shipping calculated at checkout.

Quantity

Only 8 left!

Characteristic:

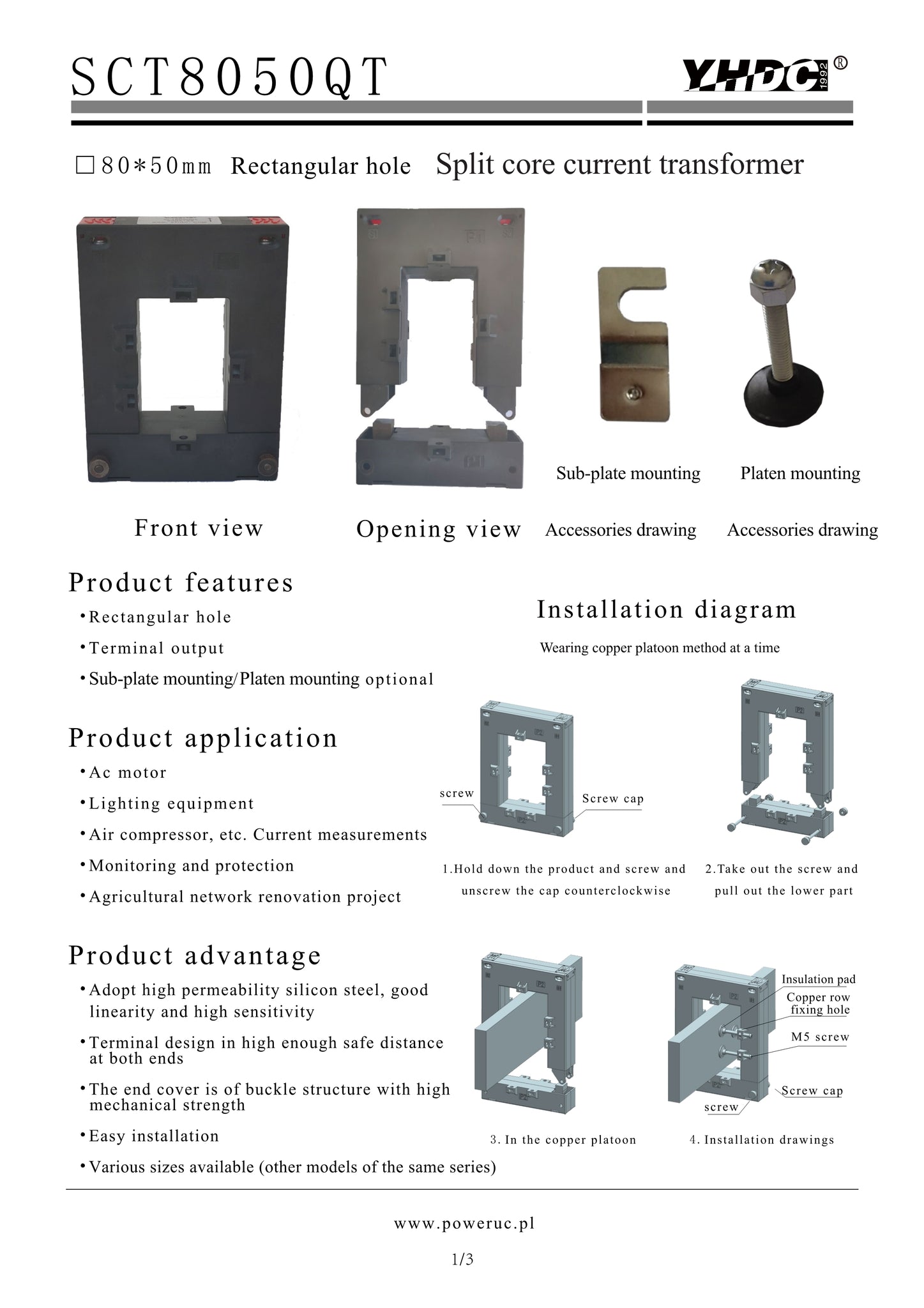

Rectangle hole, crimping terminal output, hanging installation and sub-plate mounting.

Technical Indicators:

Material of core——Laminated silicon steel

Working voltage——Phase voltage≤720V

Working temperature——-20℃～+60℃

Storage temperature——-25℃～+90℃

Frequency range——50Hz～60Hz

Waterproof grade——IP00

Dielectric strength——Output/shell AC 3.5KV/1min 5mA 50Hz

Weight——911g（for reference only）

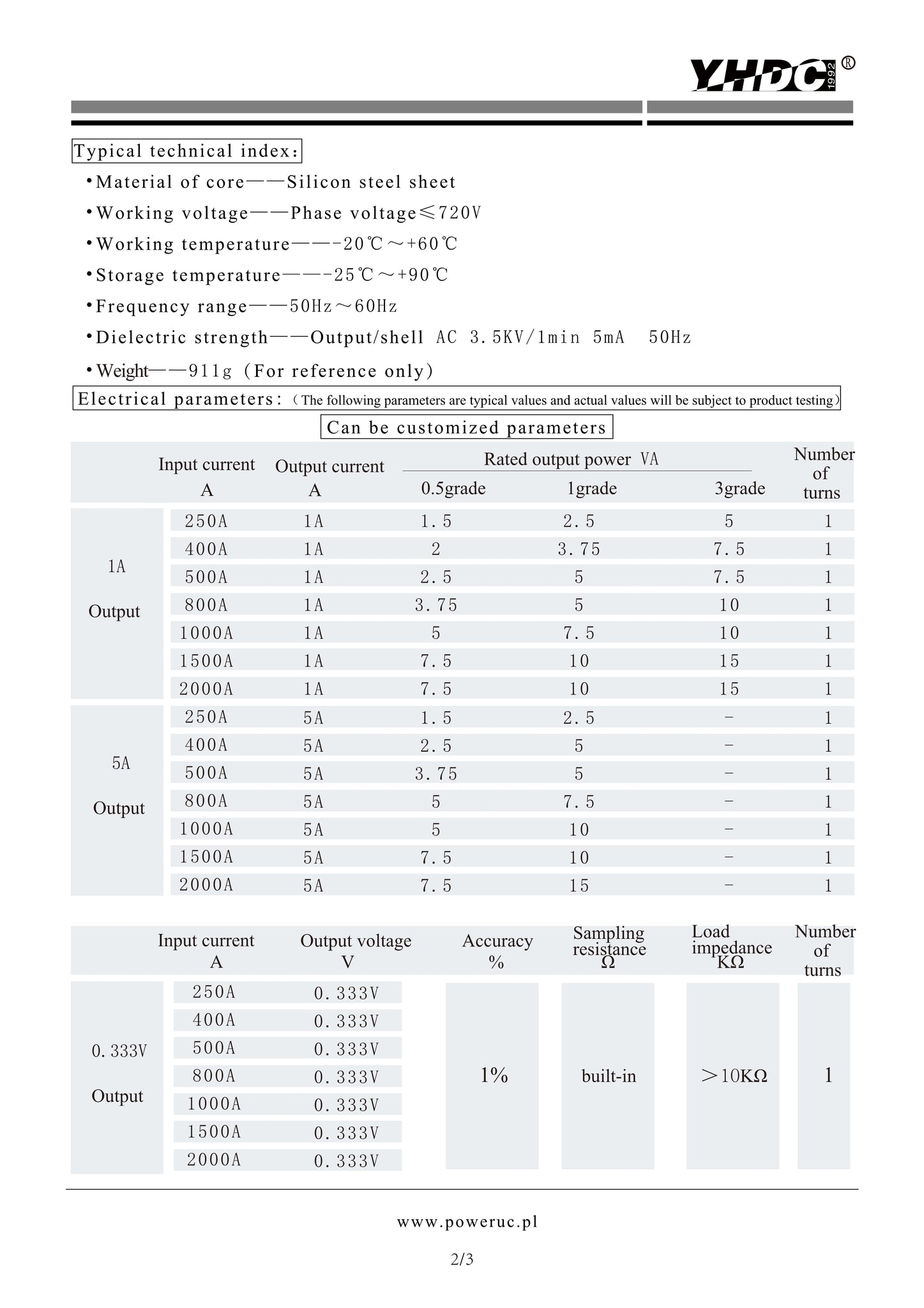

Electric Parameter:
