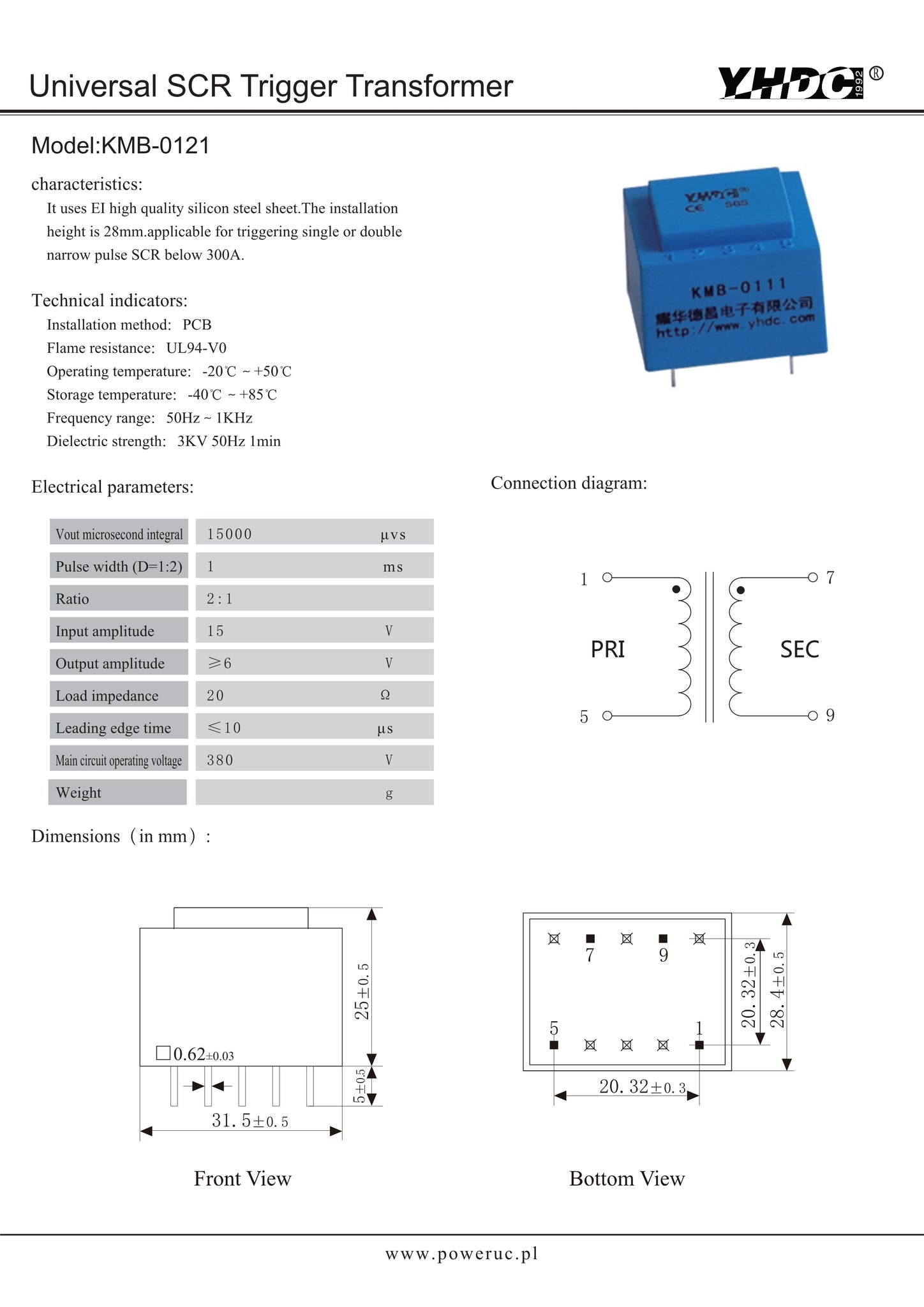

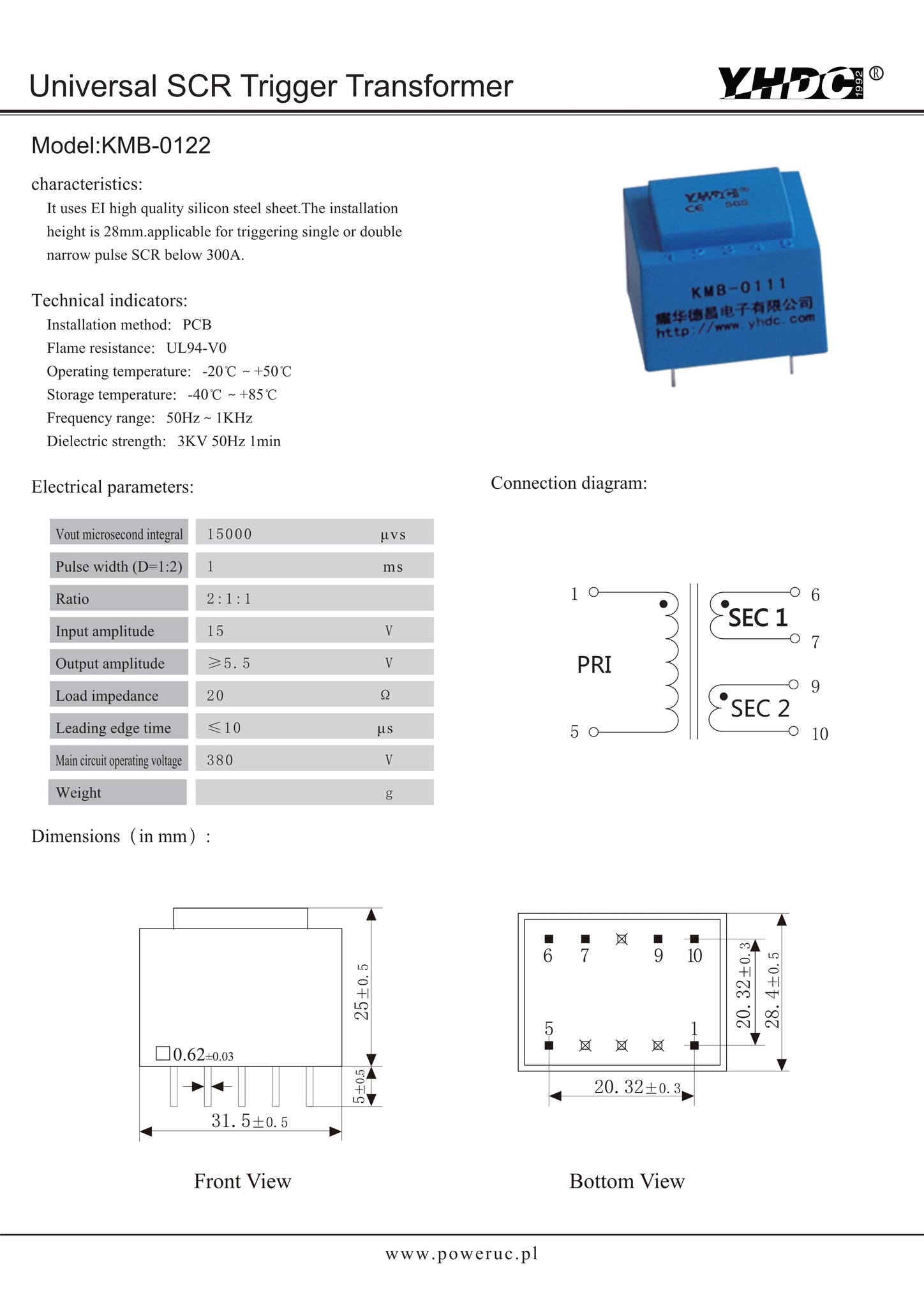

Universal SCR Trigger Transformer KMB-01 Vout microsecond integral 8000/15000/24000μvs Input amplitude 8/15/24V
Characteristics:
It uses EI high quality silicon steel sheet. The installation height is 28mm. Applicable for trigger single or double narrow pulse SCR below 100A.
Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -40°C ~ +85°C
Frequency range: 50Hz ~ 1KHz
Dielectric strength: 3KV 50Hz 1min
Electrical Parameters:
