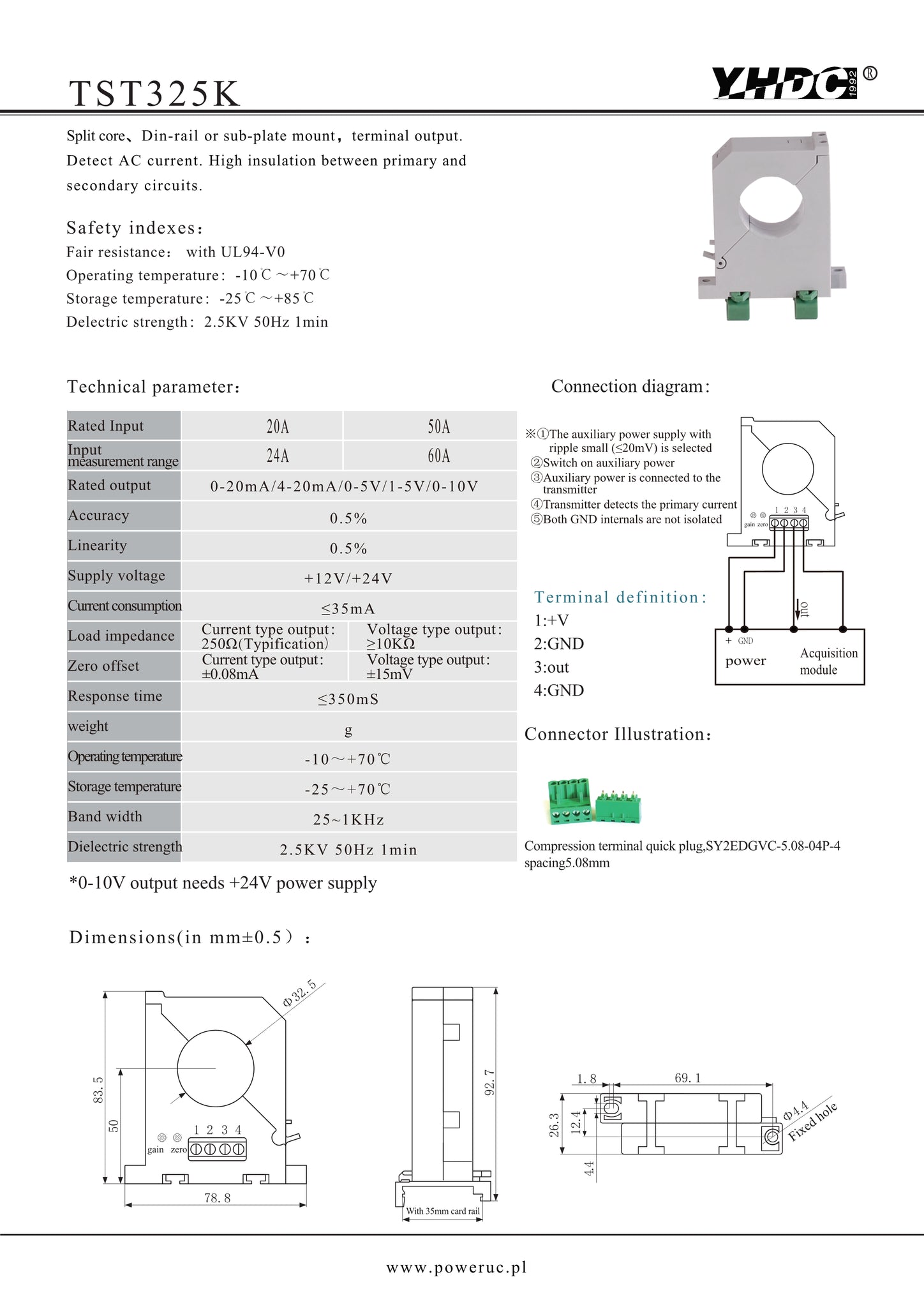

AC current transducer TST325K Rated input 20A 50A Rated output 0-20mA;4-20mA ;0-5V;1-5V; 0-10V
Circular aperture,terminal output,din-rail/sub-plate mounting type; The faulty wiring can lead to product damage,Please according to direction of arrow to thread when testing DC current,reverse threading will lead to inaccurate output， The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.
Technical index:
Flame resistance: UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -25℃～+85℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity:8 times
Waterproof level： IP00（Terminal needs to be sealing treatment of IP44）
Electric parameters:
