AC current transducer TCA2815 Rated input 1A/2.5A/5A Rated output 0-20mA; 4-20mA; 0-5V; 1-5V - PowerUC
AC current transducer TCA2815 Rated input 1A/2.5A/5A Rated output 0-20mA; 4-20mA; 0-5V; 1-5V - PowerUC

AC current transducer TCA2815 Rated input 1A/2.5A/5A Rated output 0-20mA; 4-20mA; 0-5V; 1-5V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

PCB mounting;The faulty wiring can lead to product damage, The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.

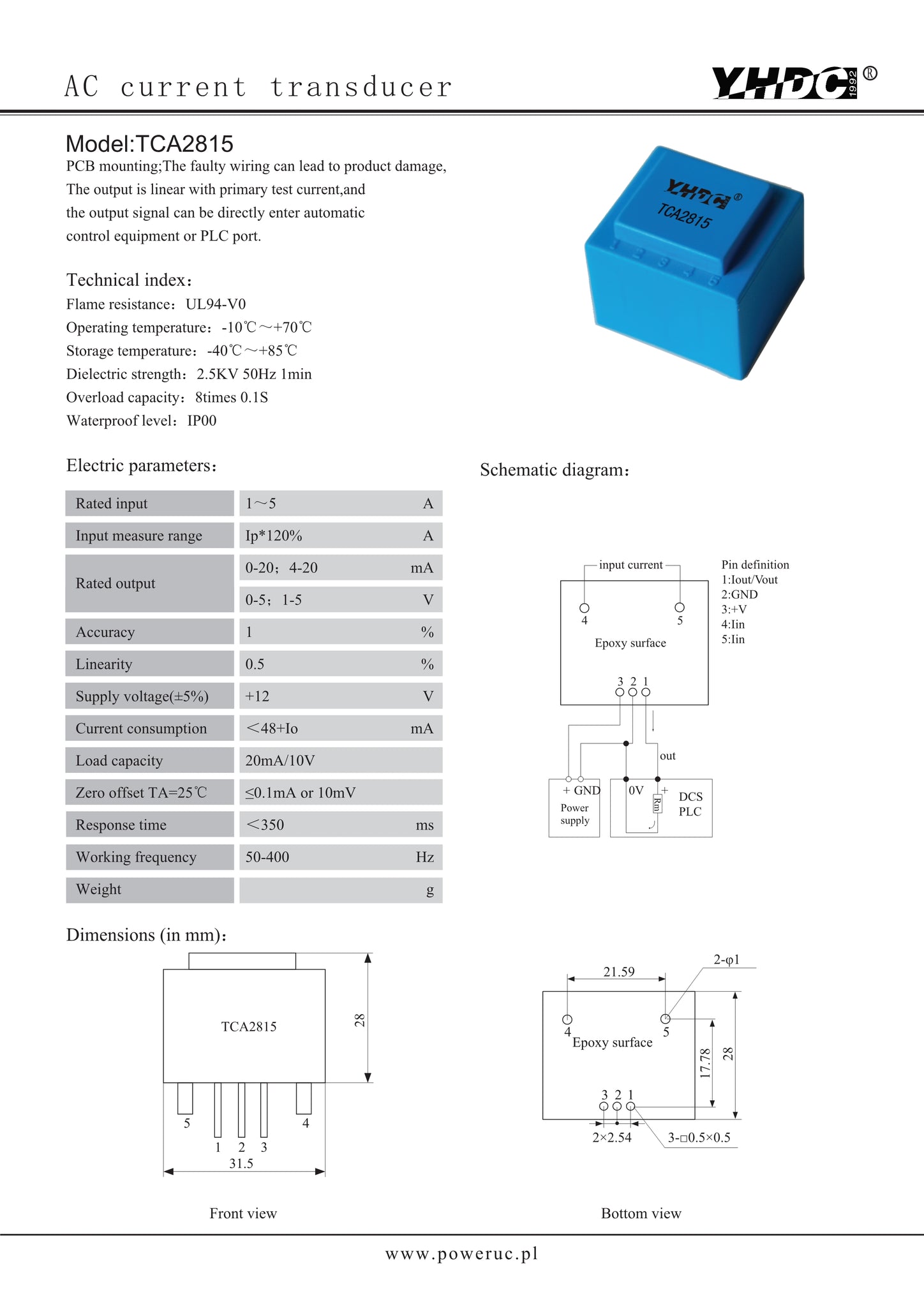

Technical index：
Flame resistance： UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -40℃～+85℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity： 8times 0.1S
Waterproof level： IP00

Electric parameters：

DOWNLOAD
