AC voltage transducer TCVH Rated input 50V 100V 200V 400V 500V Rated output 0-20mA; 4-20mA; 0-5V;1-5V; 0-10V - PowerUC

AC voltage transducer TCVH Rated input 50V 100V 200V 400V 500V Rated output 0-20mA; 4-20mA; 0-5V;1-5V; 0-10V

PowerUC

Shipping calculated at checkout.
Only 1 left!

Circular aperture,terminal output,din-rail mounting type:The faulty wiring can lead to product damage,The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.


Technical index：
Flame resistance： UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -25℃～+70℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity:8 times 0.1S
Waterproof level： IP00

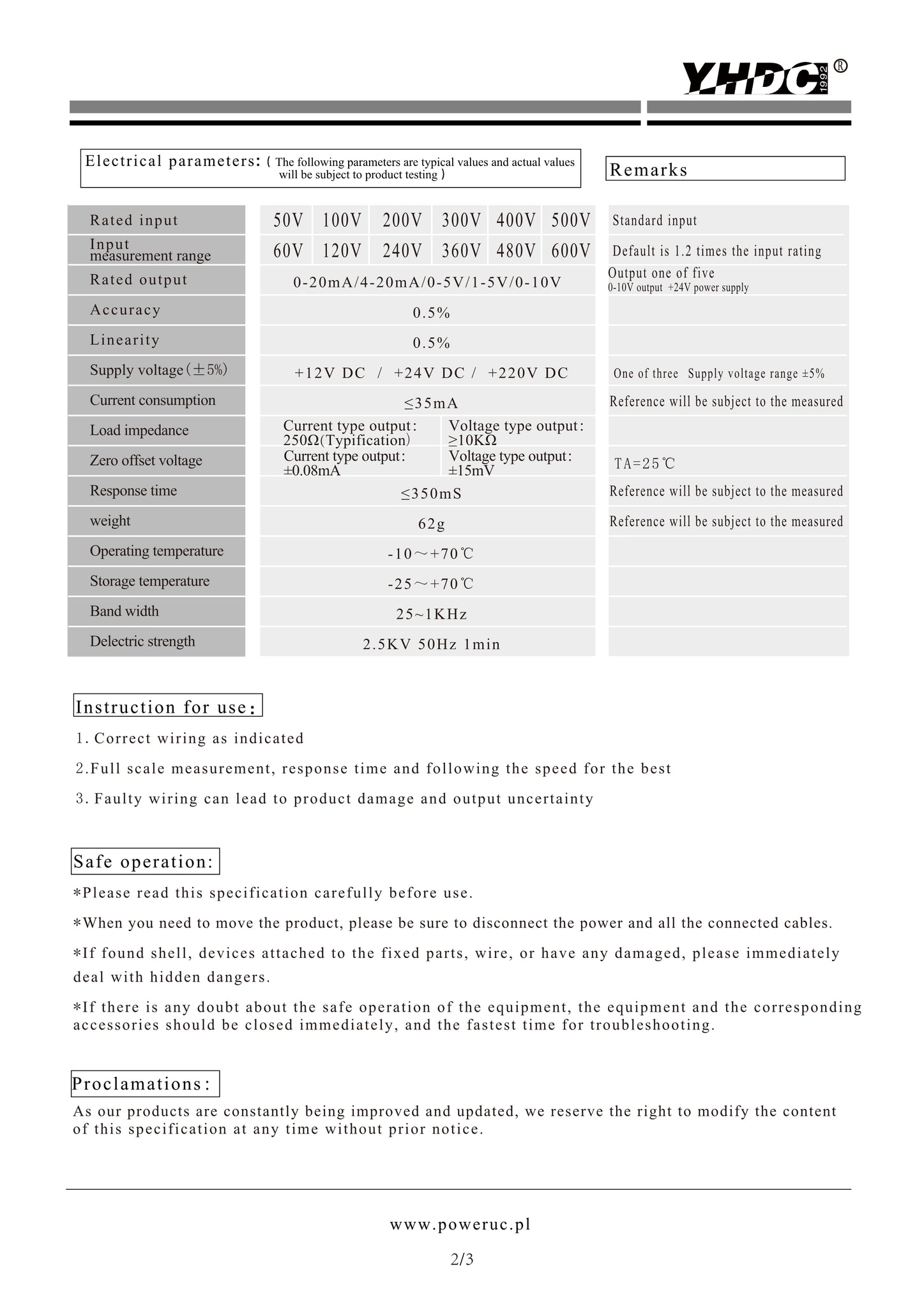

Electric parameters：

DOWNLOAD
