AC current transducer TCAB Rated input 5A Rated output 0-20mA;4-20mA;0-5V;1-5V;0-10V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model：TCAB

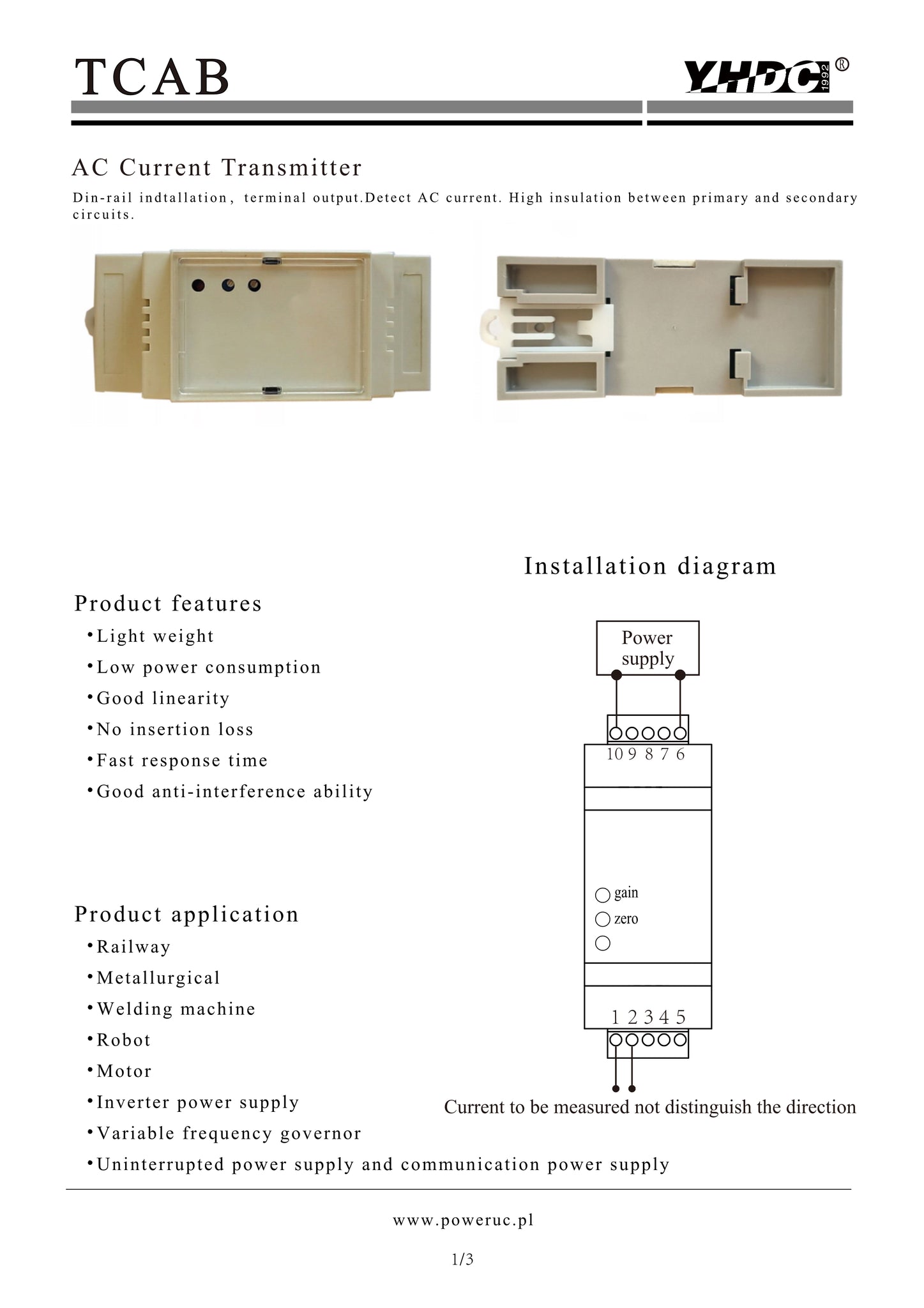

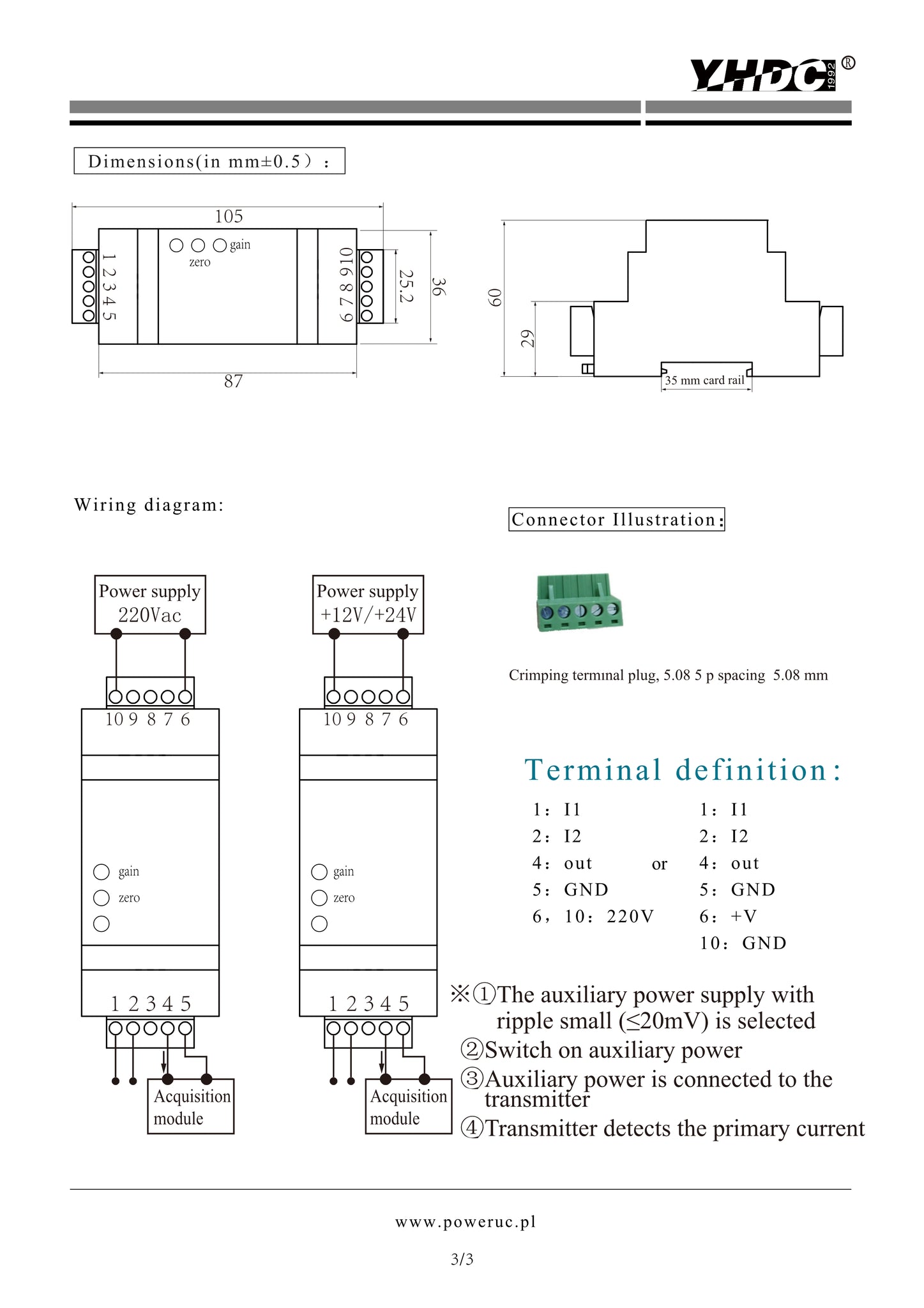

Plug-in terminal output Ddin-rail type installation; Wrong wiring can lead to product damage.The output is linear with a detection current, and the output signal can be directly enteredAutomatic control equipment or PLC port.


Technical index：

  • Flame resistance: UL94-V0
  • Operating temperature：-10℃～+70℃
  • Operating temperature：-25℃～+70℃
  • Dielectric strength：2.5KV 50Hz 1min
  • Waterproof grade：IP00

DOWNLOAD
