DC voltage transducer THV302GB Rated input 500V/1000V/2000V Rated output 0-20mA; 4-20mA; 0-5V;1-5V;0-10V - PowerUC

DC voltage transducer THV302GB Rated input 500V/1000V/2000V Rated output 0-20mA; 4-20mA; 0-5V;1-5V;0-10V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

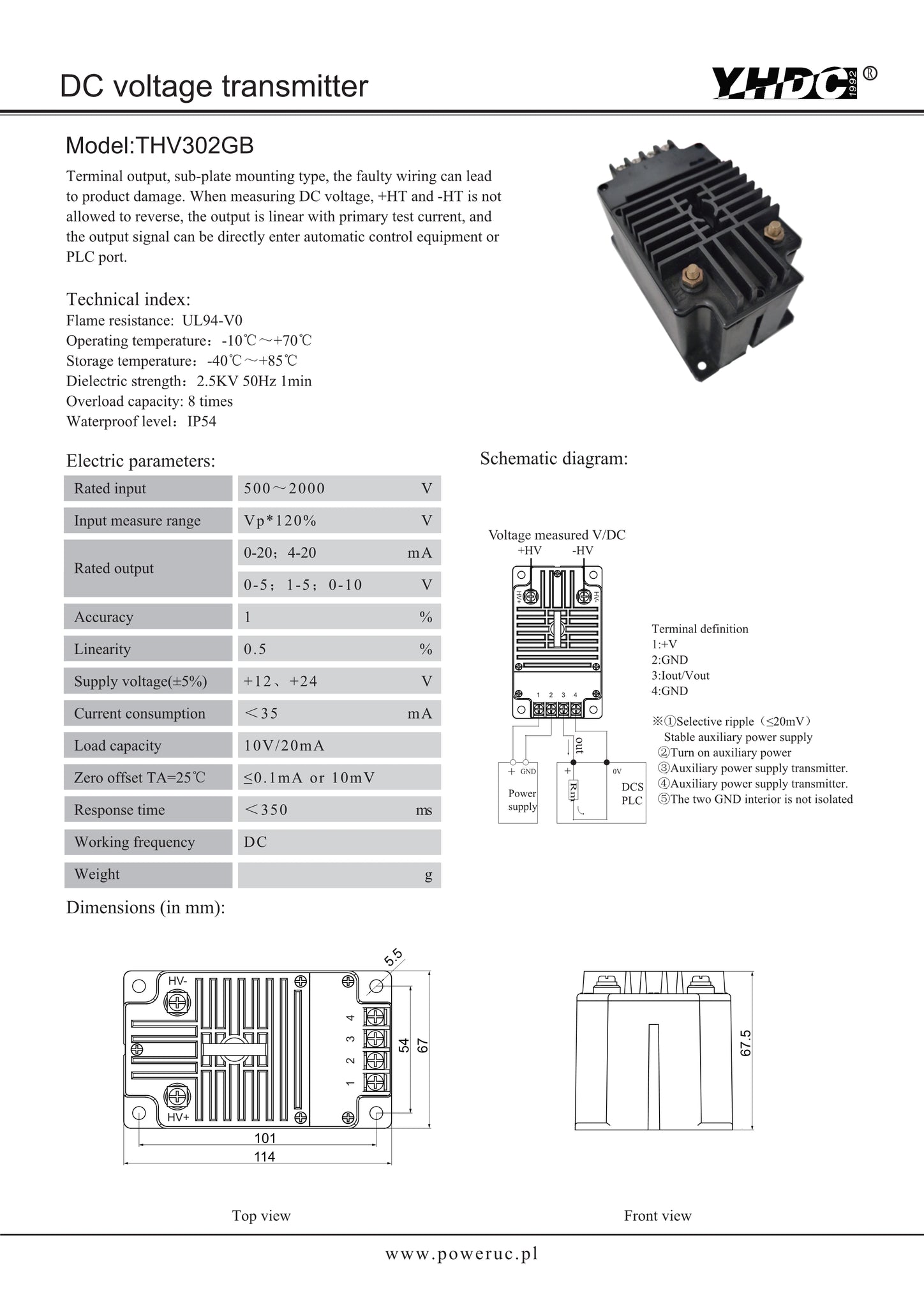

Model:THV302GB

Terminal output, sub-plate mounting type, the faulty wiring can lead to product damage. When measuring DC voltage, +HT and -HT is not allowed to reverse, the output is linear with primary test current, and the output signal can be directly enter automatic control equipment or PLC port.


Technical index:
Flame resistance: UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -40℃～+85℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity:8 times
Waterproof level： IP54

Electric parameters:

DOWNLOAD
