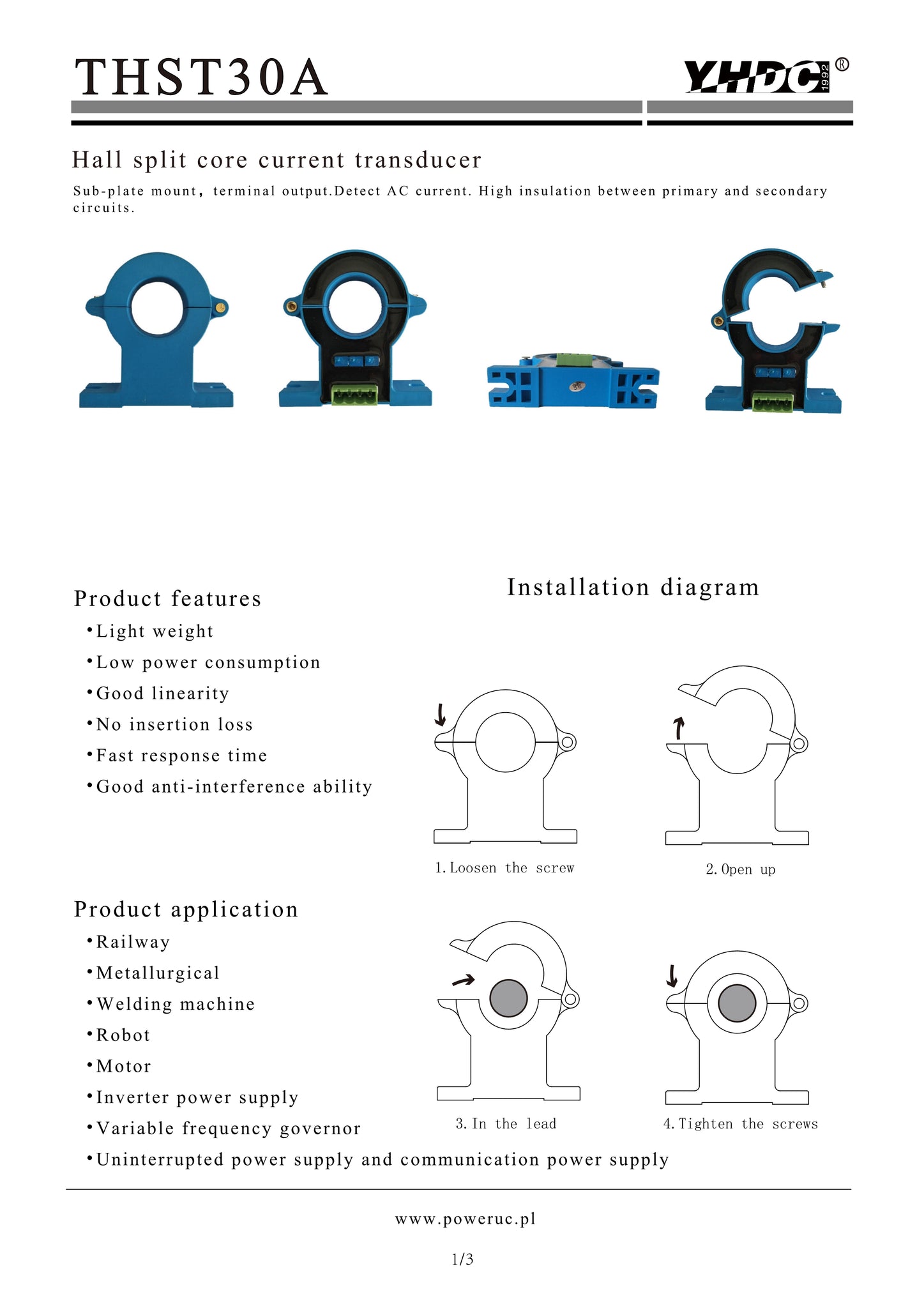

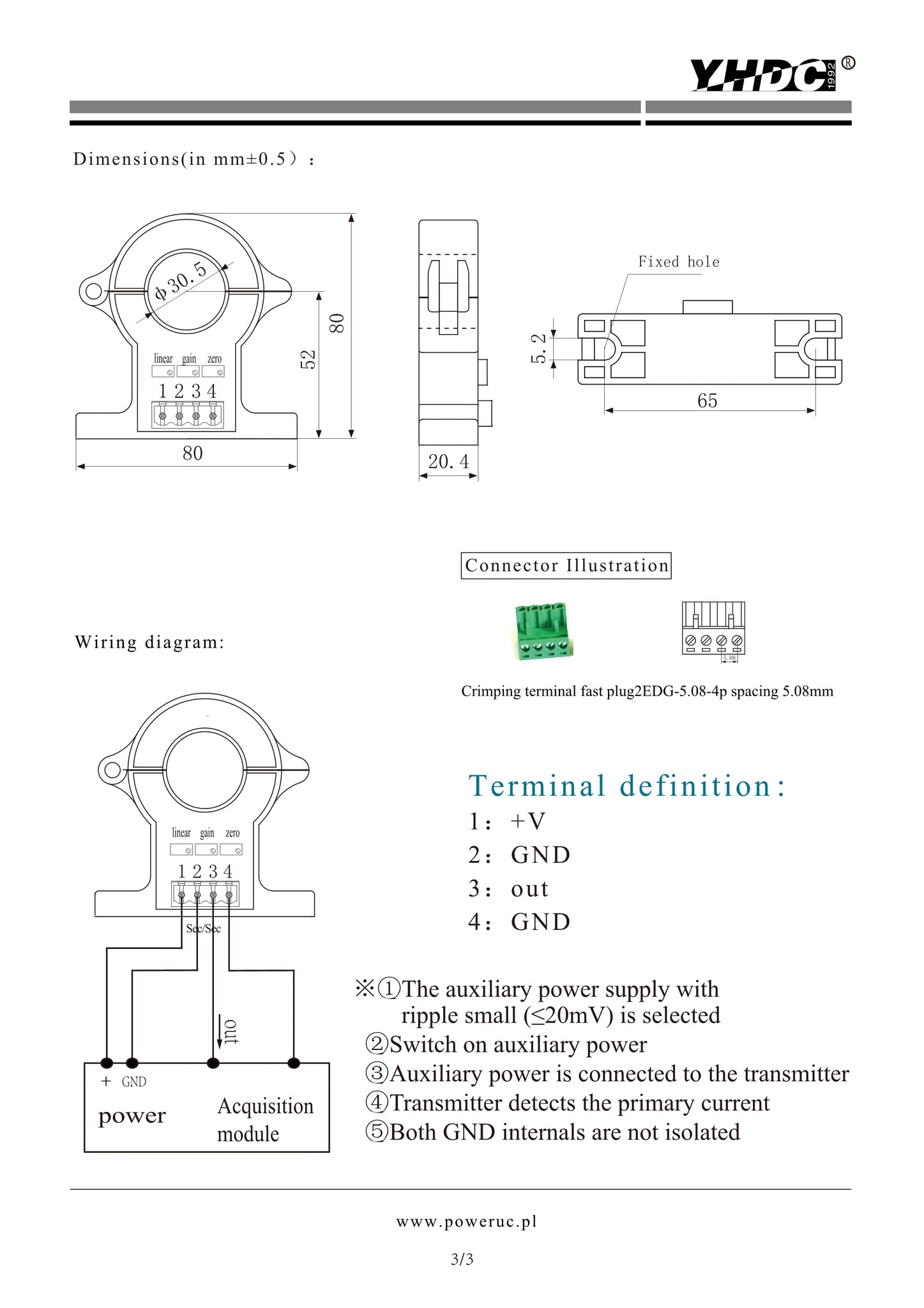

Split core AC current transducer THST30A Rated input 100A 200A 300A 500A 600A 800A 1000A Rated output 0-20mA；4-20mA ;0-5V；1-5V；0-10V
Circle plug terminal output， sub-plate mounting type;The faulty wiring can lead to product damage,The output is linear with primary test current,and the output signal can be directly
enter automatic control equipment or PLC port.
Technical index:
Flame resistance: UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -25℃～+70℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity:8 times
Waterproof level： IP00（Terminal needs to be sealing treatment of IP44）
Electric parameters:
