DC current transducer THST080D Rated input 400A 600A 800A 1000A 1200A 1400A 1600A 1800A 2000A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V - PowerUC

DC current transducer THST080D Rated input 400A 500A 600A 800A 1000A 1500A 2000A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

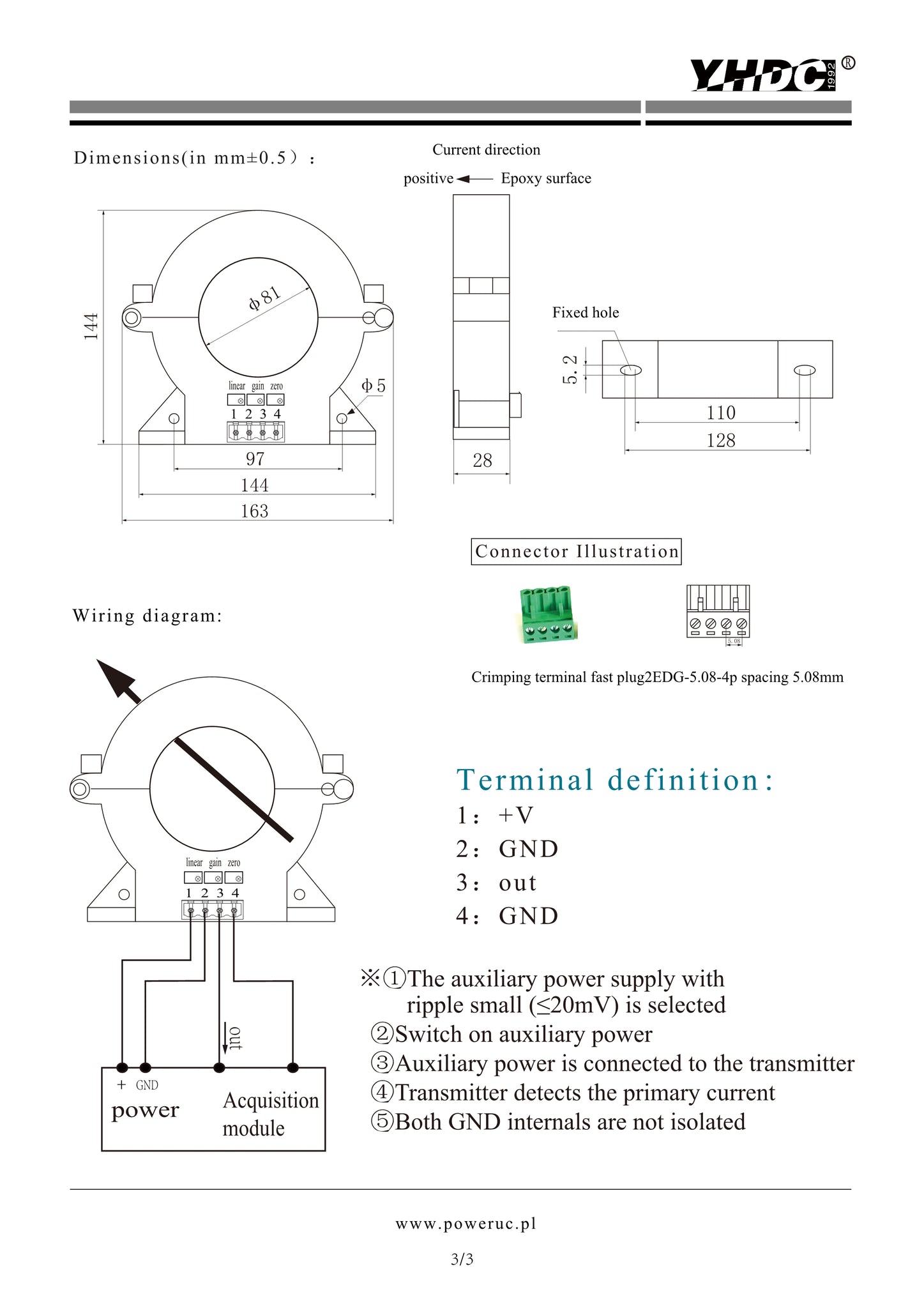

Circle plug terminal outputsub-plate mounting type;The faulty wiring can lead to product damage,Please according to direction of arrow to thread when testing DC current,reverse
threading will lead to inaccurate output
The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.


Technical index:
Flame resistance: UL94-V0
Operating temperature
-10℃~+70
Storage temperature-25℃~+70
Dielectric strength: 3KV 50Hz 1min
Overload capacity:8 times
Waterproof level
IP00Terminal needs to be sealing treatment of IP44


Electric parameters:
