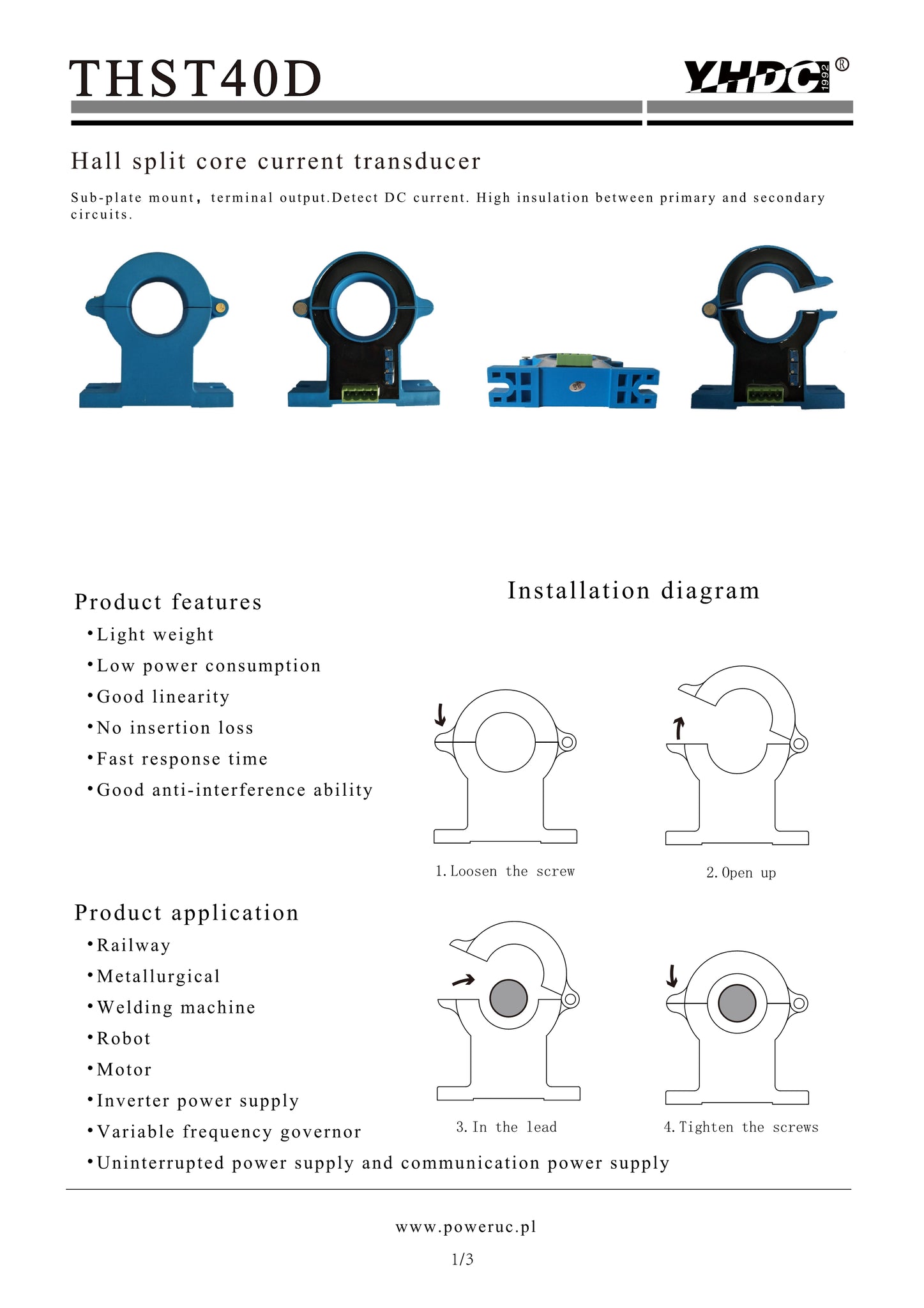

DC current transducer THST40D Rated input 300A 500A 800A 1000A 1200A 1400A 1600A 1800A 2000A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V - PowerUC

DC current transducer THST40D Rated input 300A 500A 800A 1000A 1200A 1500A 2000A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V

PowerUC

  • €32,28
    Unit price per
Shipping calculated at checkout.

Only 1 left!

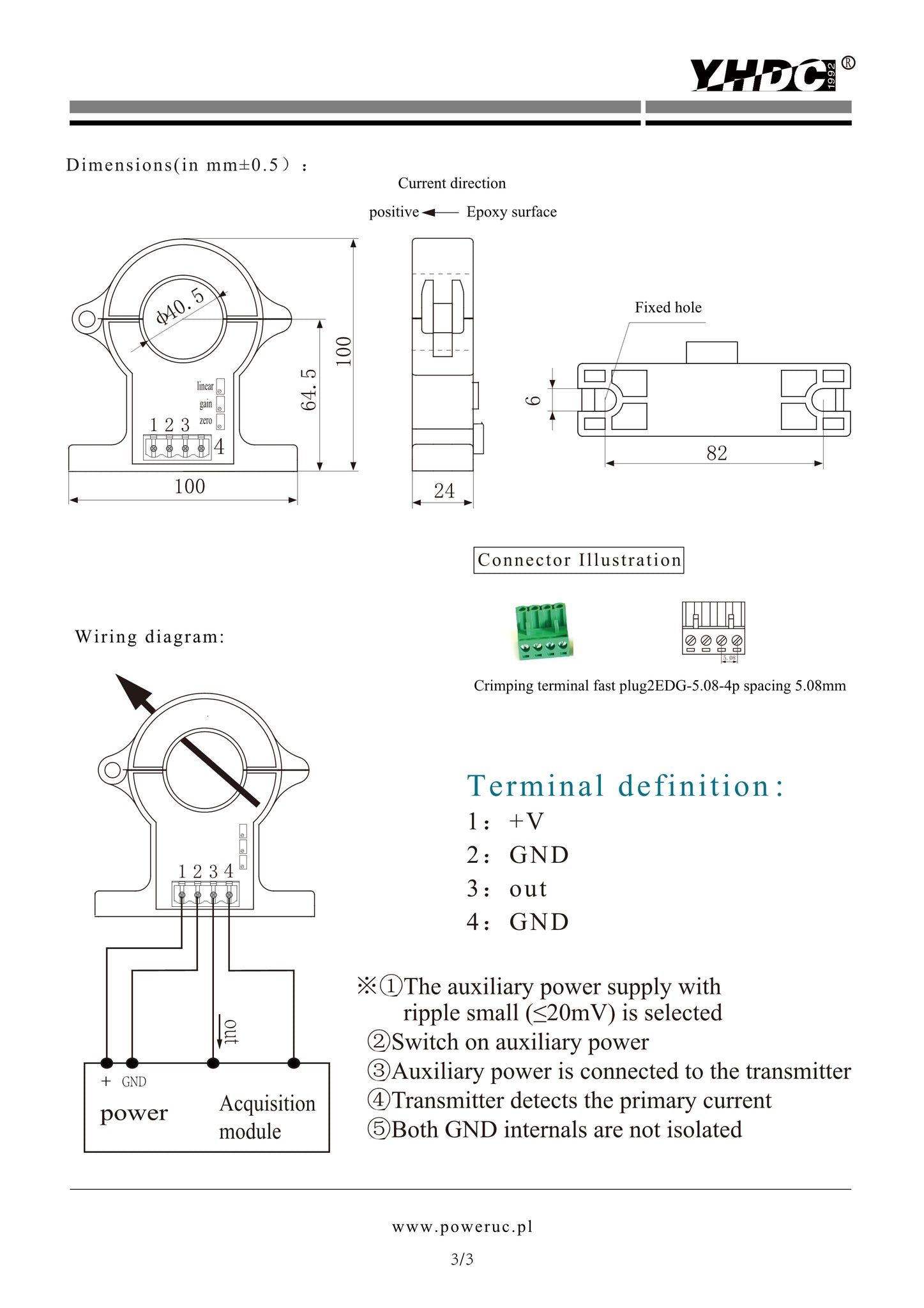

Circle plug terminal outputsub-plate mounting type;The faulty wiring can lead to product damage,Please according to direction of arrow to thread when testing DC current,reverse
threading will lead to inaccurate output
,The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.


Technical index:
Flame resistance: UL94-V0
Operating temperature
-10℃~+70
Storage temperature-25℃~+70
Dielectric strength2.5KV 50Hz 1min
Overload capacity:8 times
Waterproof level
IP00Terminal needs to be sealing treatment of IP44

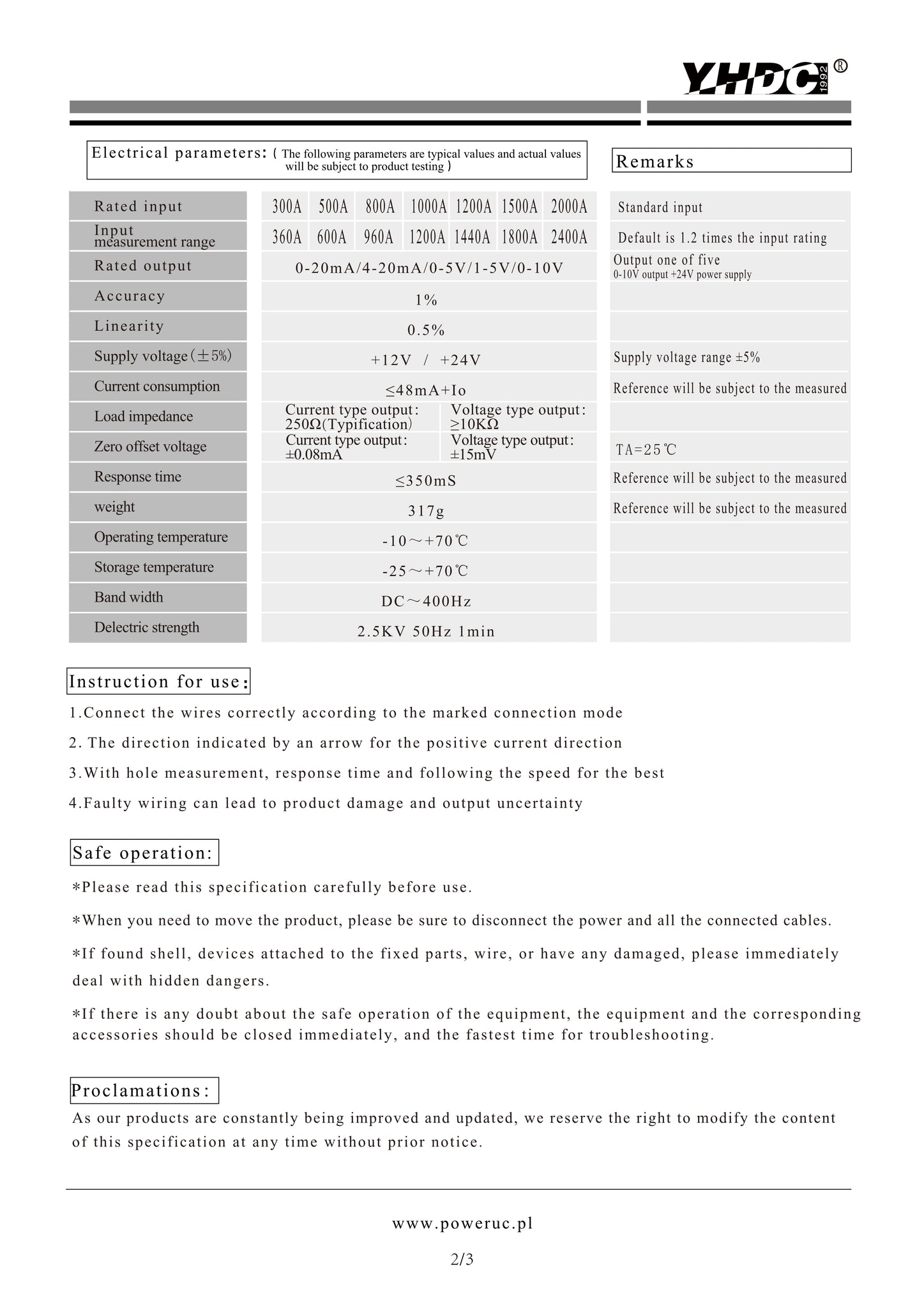

Electric parameters:
