AC voltage transducer TCV302GB Rated input 500V/1000V/2000V Rated output 0-20mA; 4-20mA; 0-5V;1-5V;0-10V - PowerUC

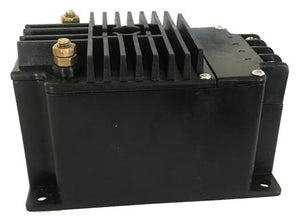

AC voltage transducer TCV302GB Rated input 500V/800V/1000V/1500V/2000V Rated output 0-20mA; 4-20mA; 0-5V;1-5V;0-10V

PowerUC

Shipping calculated at checkout.
Only 5 left!

Terminal output,sub-plate mounting type;The faulty wiring can lead to product damage,When measuring DC voltage, +HT -HT is not allowed to reverse,The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.


Technical index:
Flame resistance: UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -25℃～+70℃
Dielectric strength： 6KV 50Hz 1min
Overload capacity:8 times
Waterproof level： IP00（Terminal needs to be sealing treatment of IP44）

DOWNLOAD
