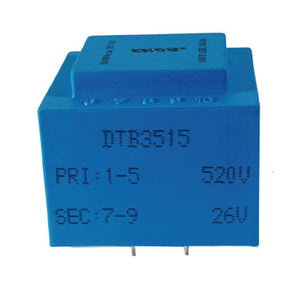

DTB single phase synchronous transformer DTB3515 0.03VA 400V

Custom Quote Free Sample

Single-phase synchronous epoxy potting transformer, beautiful appearance, circuit board welding, can replace similar products at home and abroad, the use of fully enclosed circuit board direct welding, secondary output from the foot lead, strong power input and weak output separately.

For the SCR power adjustment, voltage regulator, speed synchronous signal detection, wind power and other uses of the voltage sampling.

Technical Indicators:
Installation: PCB
Flammability: UL94-V0
Frequency range: 50Hz ~ 400Hz
Dieletric strength: 3.5KV 50Hz 1min

Electrical Parameters:

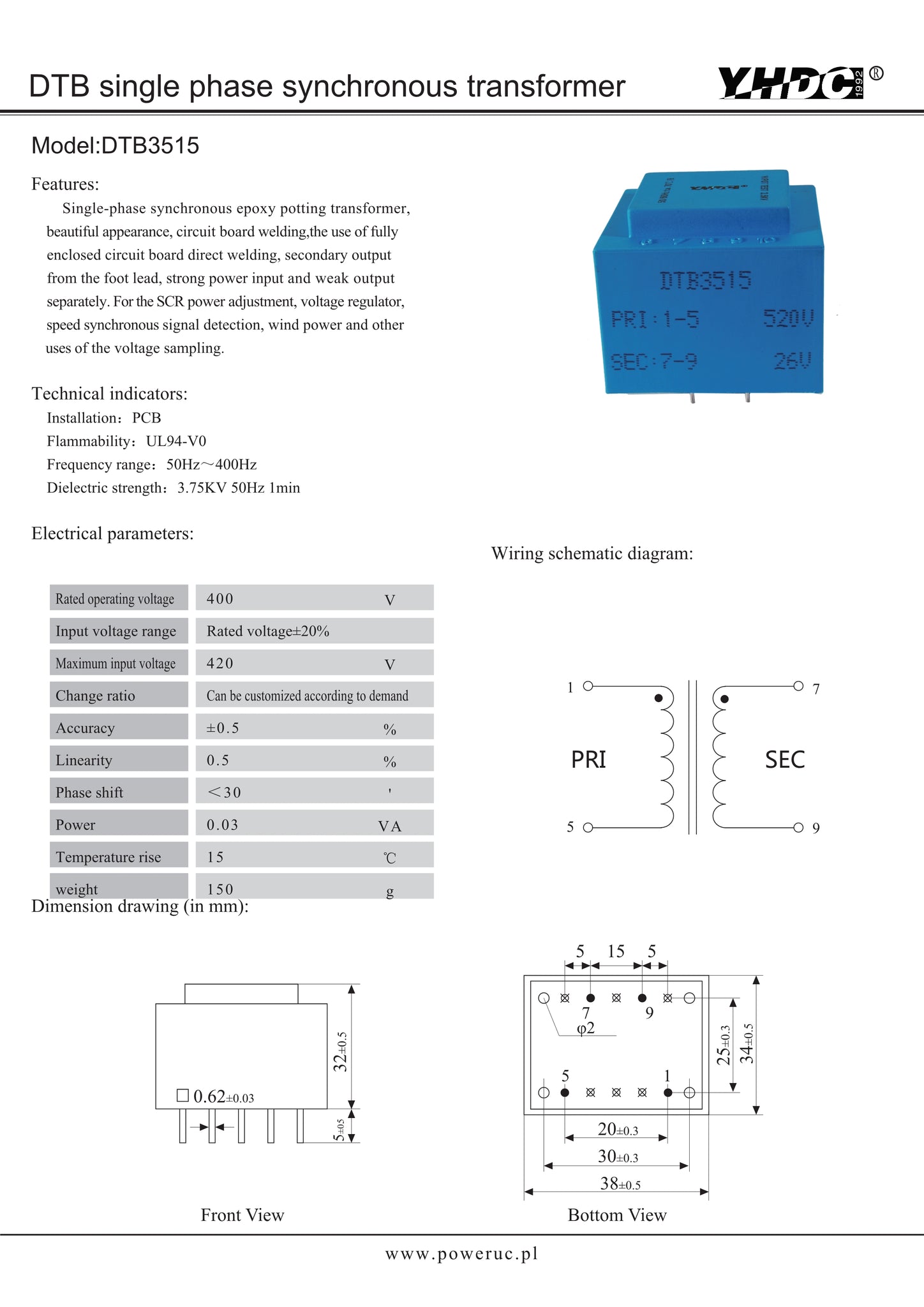

Download Spec Sheet
Custom Quote Free Sample
