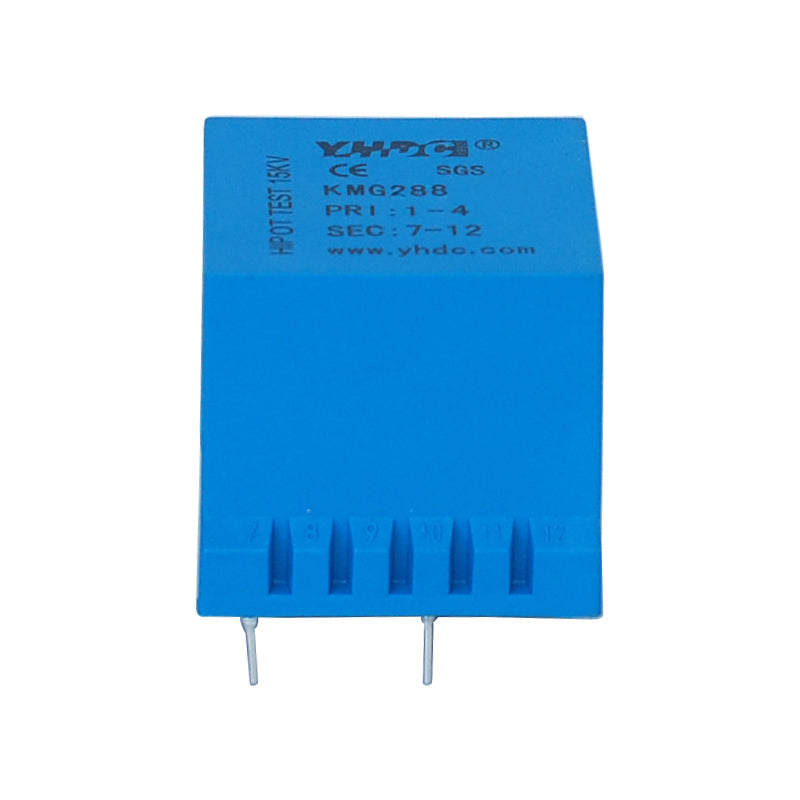

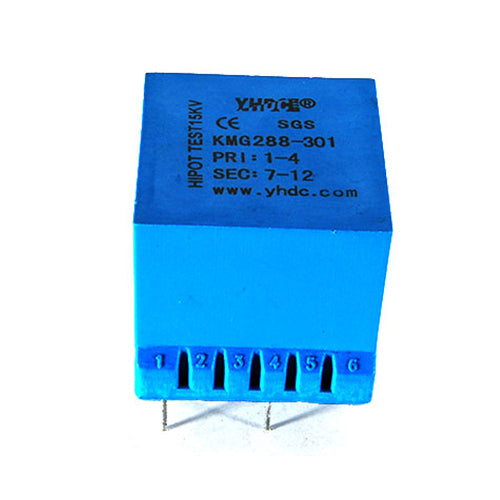

High Isolated Voltage SCR Trigger Transformer KMG288 Vout microsecond integral 800/1500/2400μvs

Custom Quote Free Sample

Applicable for triggering of SCR over 1000A and main circuit operating voltage over 660V.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -40°C ~ +85°C
Frequency range: 1KHz ~ 10KHz
Dielectric strength: >15KV 50Hz 1min

Electrical Parameters:

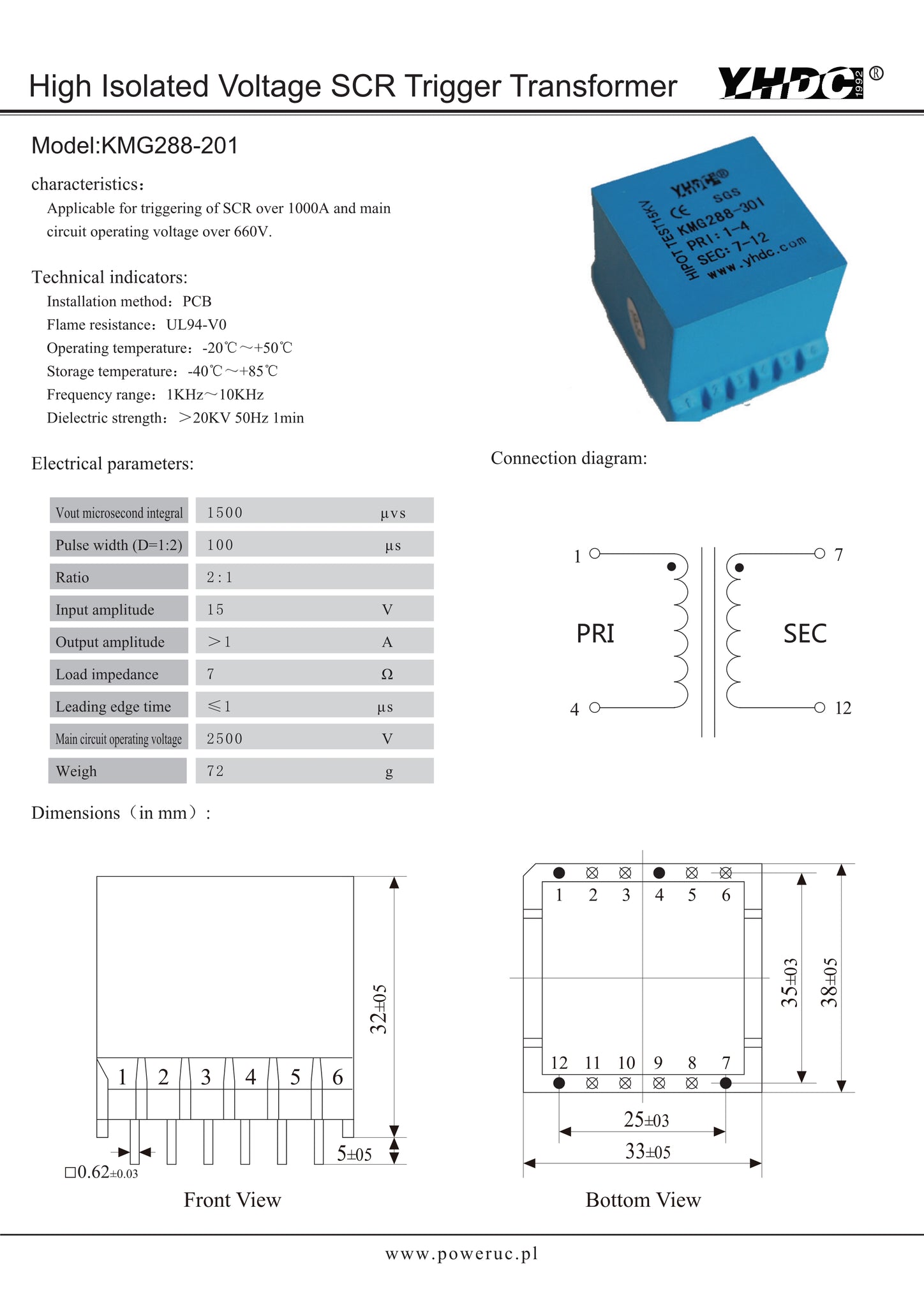

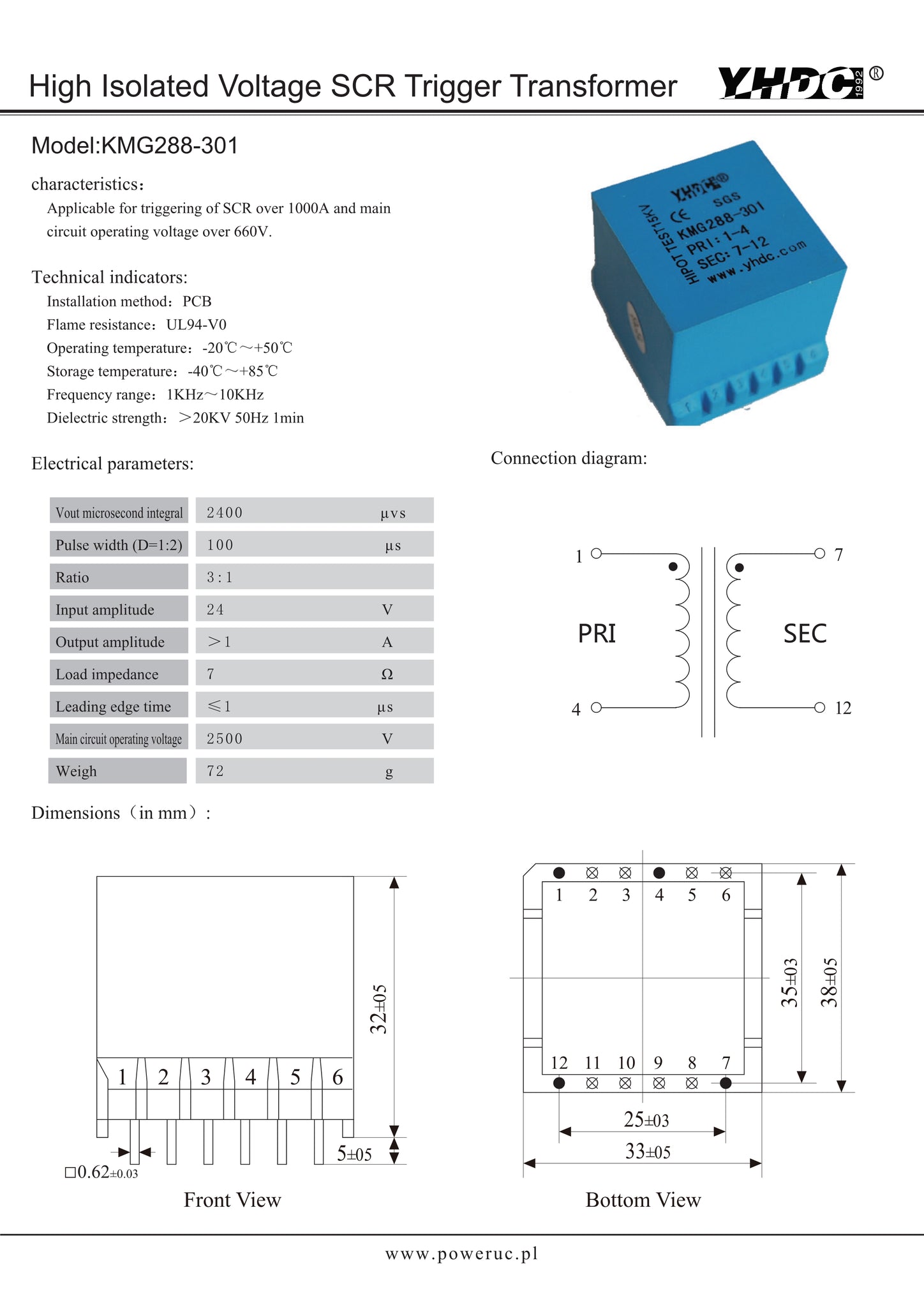

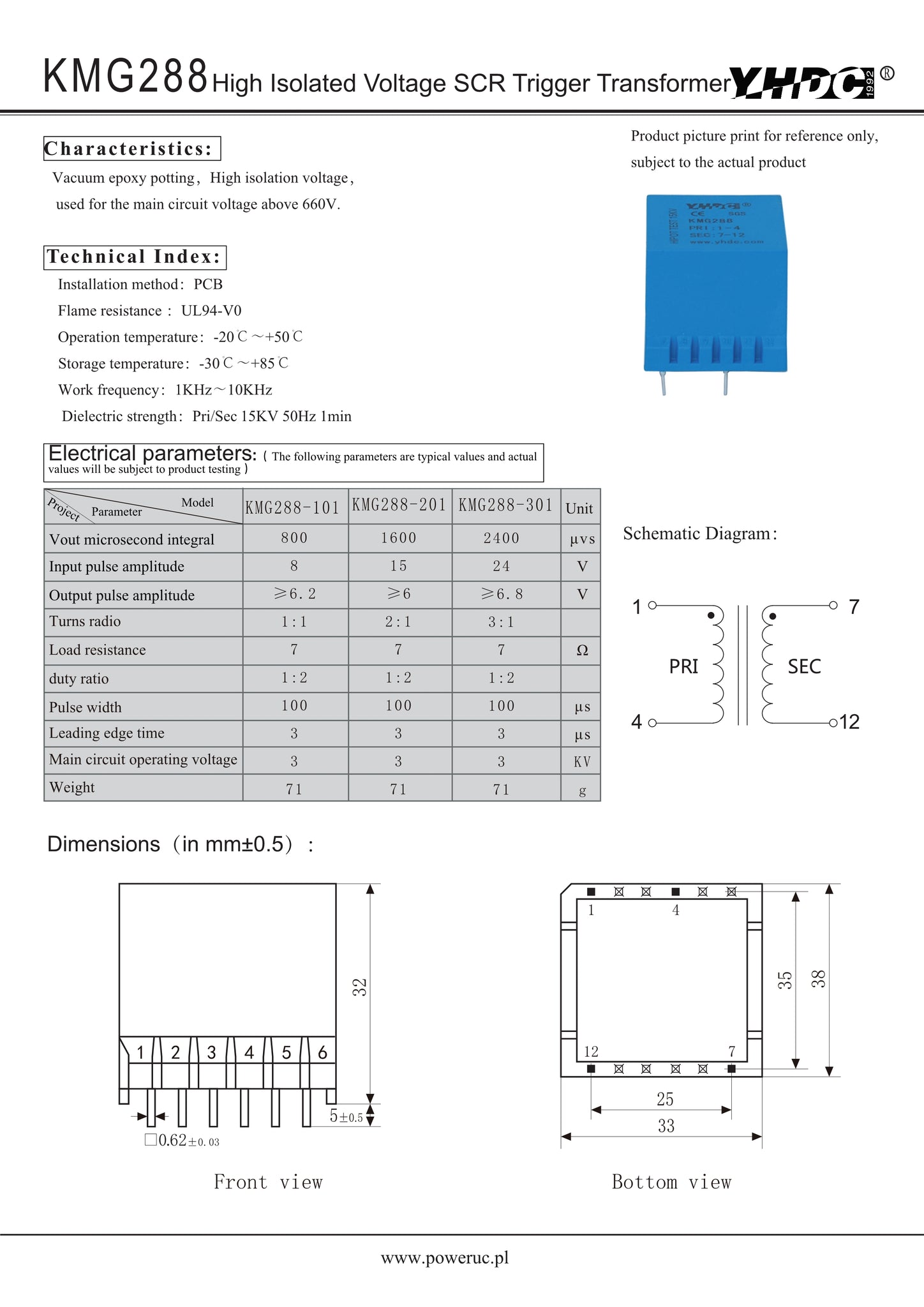

Download Spec Sheet
