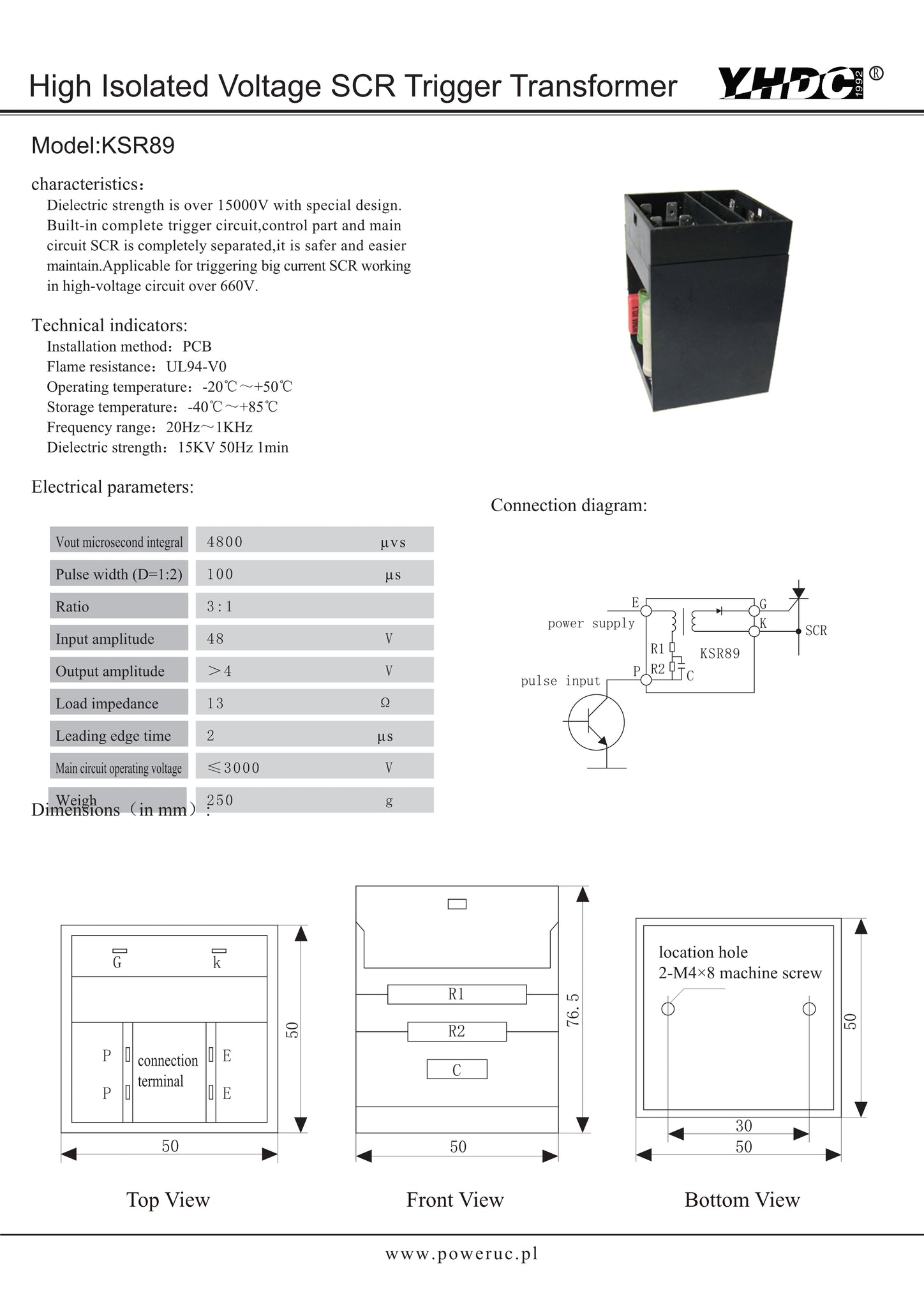

High Isolated Voltage SCR Trigger Transformer KSR89 Vout microsecond integral 4800μvs

Custom Quote Free Sample

Dielectric strength is over 15000V with special design.  Built-in complete trigger circuit, control part and main circuit SCR is complete separate, it is safe and easier maintain.  The dimensions and parameters are same with foreign similar products.  Applicable for triggering big current SCR working in high-voltage circuit over 660V.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -40°C ~ +85°C
Frequency range: 20Hz ~ 1KHz
Dielectric strength: 15KV 50Hz 1min

Electrical Parameters:
Download Spec Sheet
