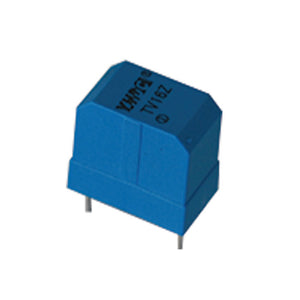

Mini current type voltage transformer TV16Z 2mA/2mA

Custom Quote Free Sample

Characteristics: Using ultracrystalline core. Primary current will be different according to different voltage working on the current-limiting resistance. And there will be a same current at secondary as primary.

Technical index:

Mounting type:PCB mounting

Material of the core:Nanocrystalline

Flame resistance:UL94-V0

Operating temperature:-35℃~+85℃

Storage temperature:-45℃~+95℃

Frequency range:20Hz-20KHz

Dielectric strength:3.5KV 50Hz 1min

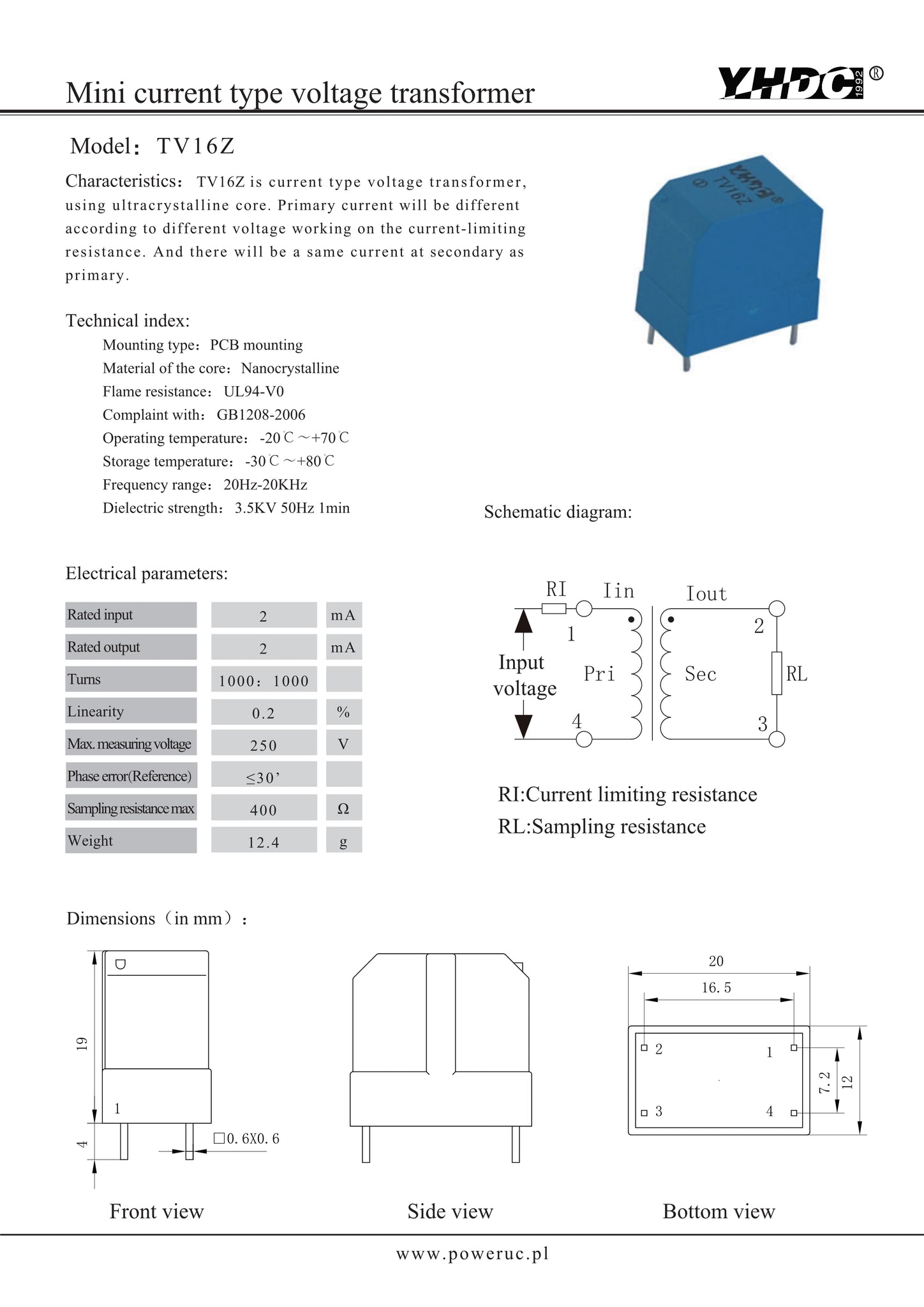

Download Spec Sheet
