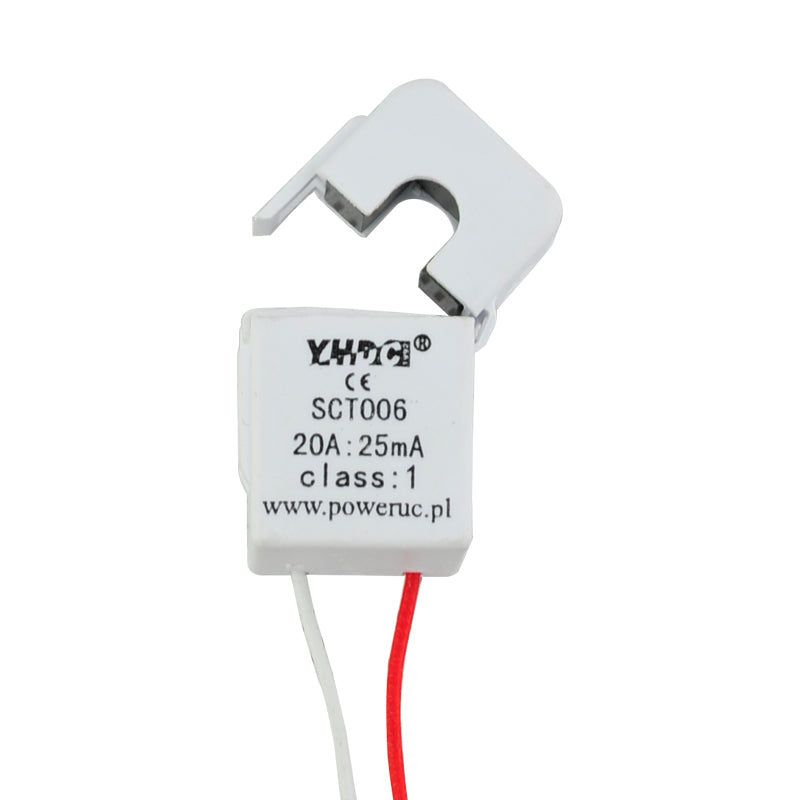

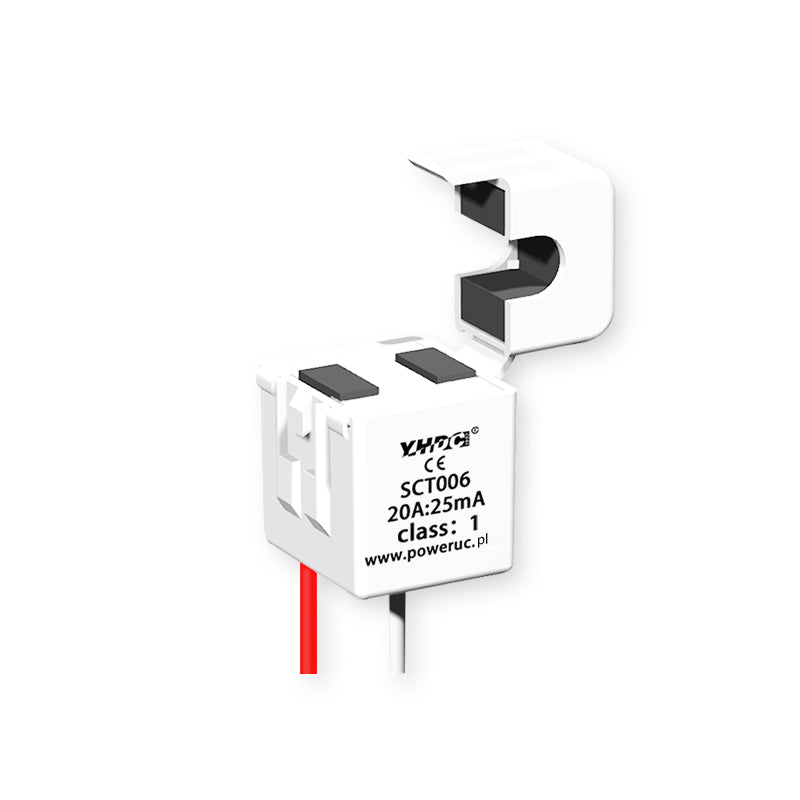

Split Core Current Transformer SCT006 rated input 1A 5A 10A 20A rated output 1mA 2.5mA 5mA 10mA 20mA 25mA

PowerUC

Shipping calculated at checkout.

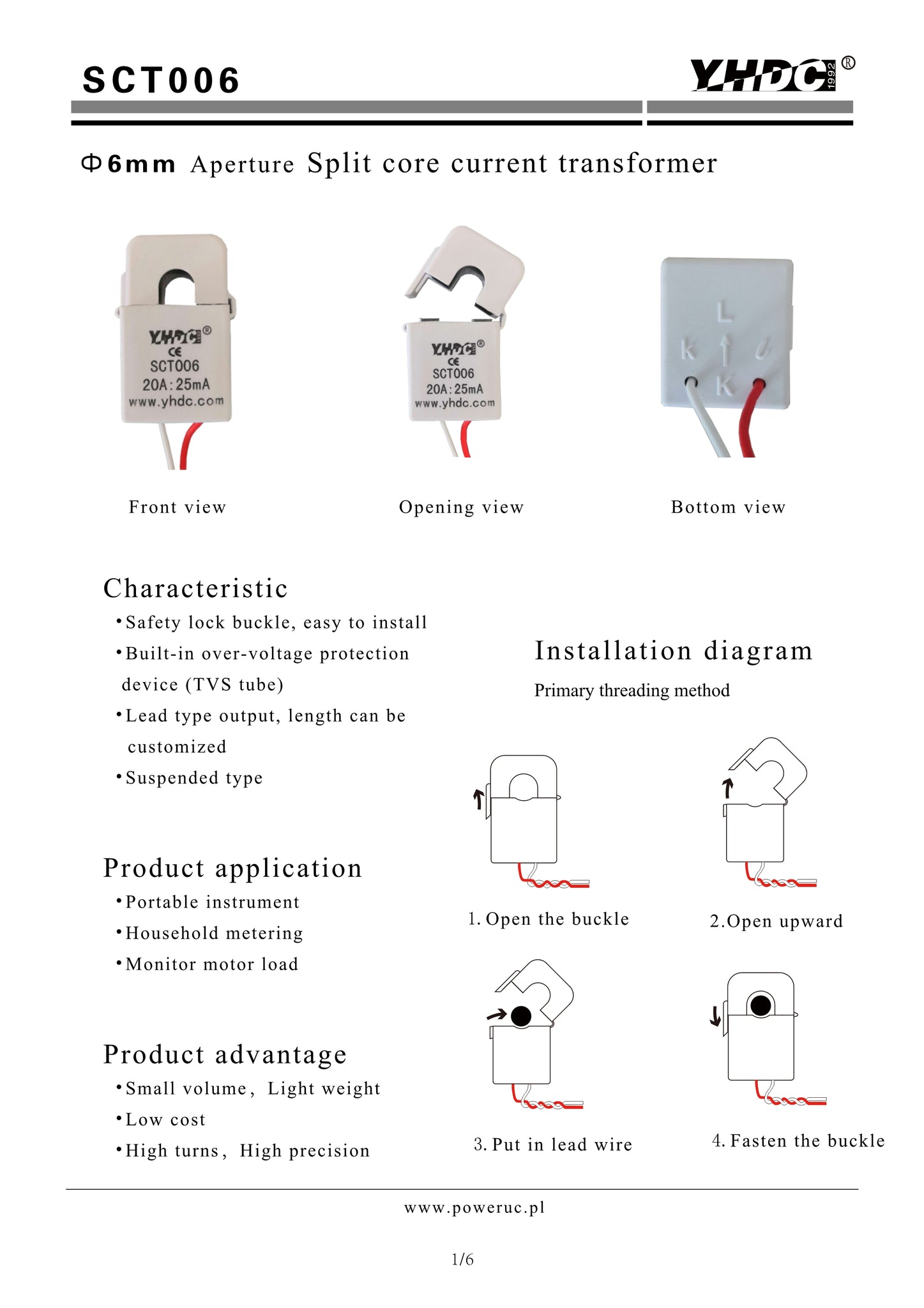

Characteristic:

Safety lock buckle, easy installation,cable output.

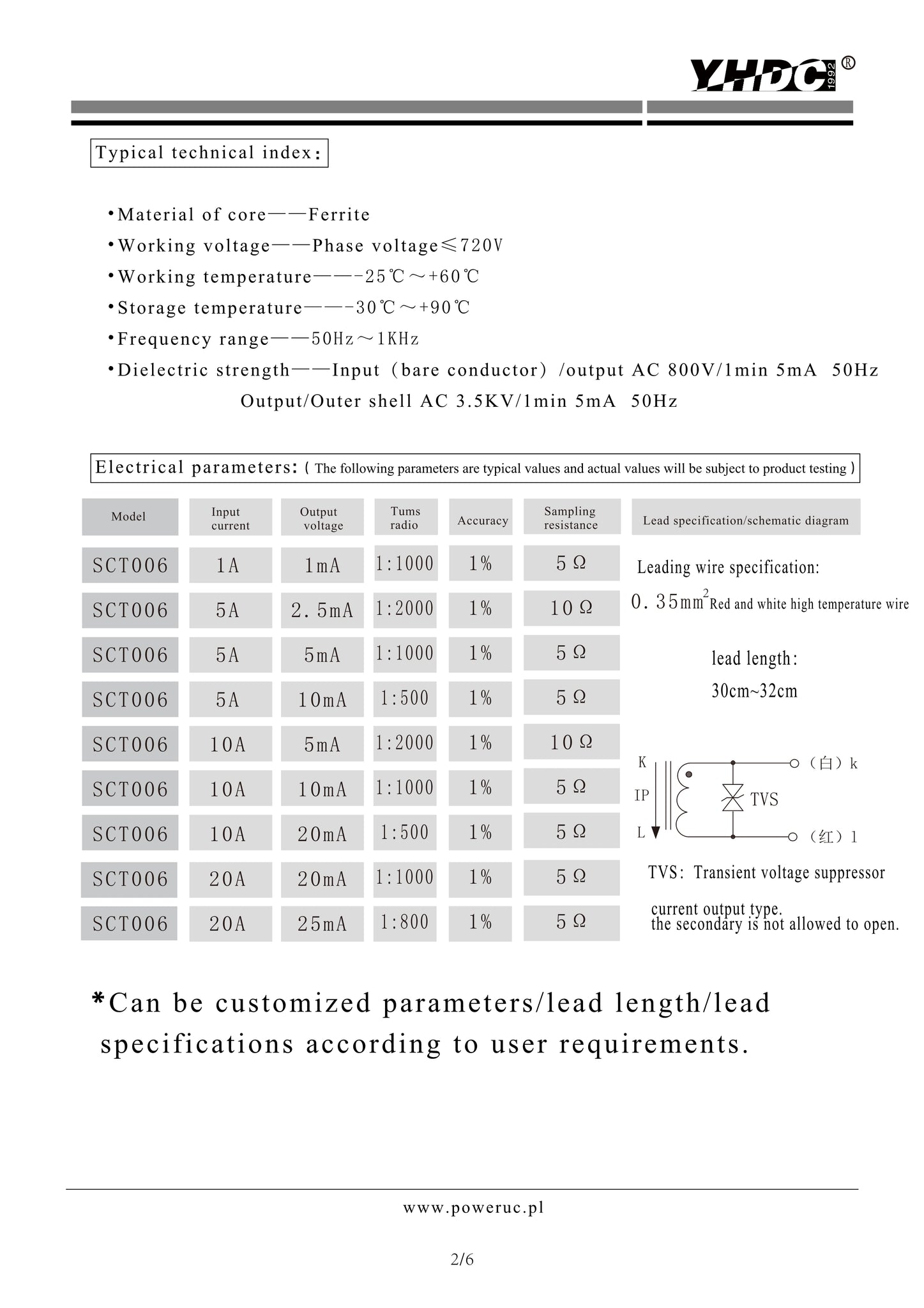

Typical technical index：

Mounting type: Free hanging (In-Line)

Material of core: Ferrite

Applicable standards: GB20840-2014

Operating temperature: -25℃ ~ +60℃

Storage temperature: -30℃ ~ +90℃

Frequency range: 50Hz-1KHz

Waterproof grade: IP00

Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz

Output/housing AC 3.5KV/1min 50Hz

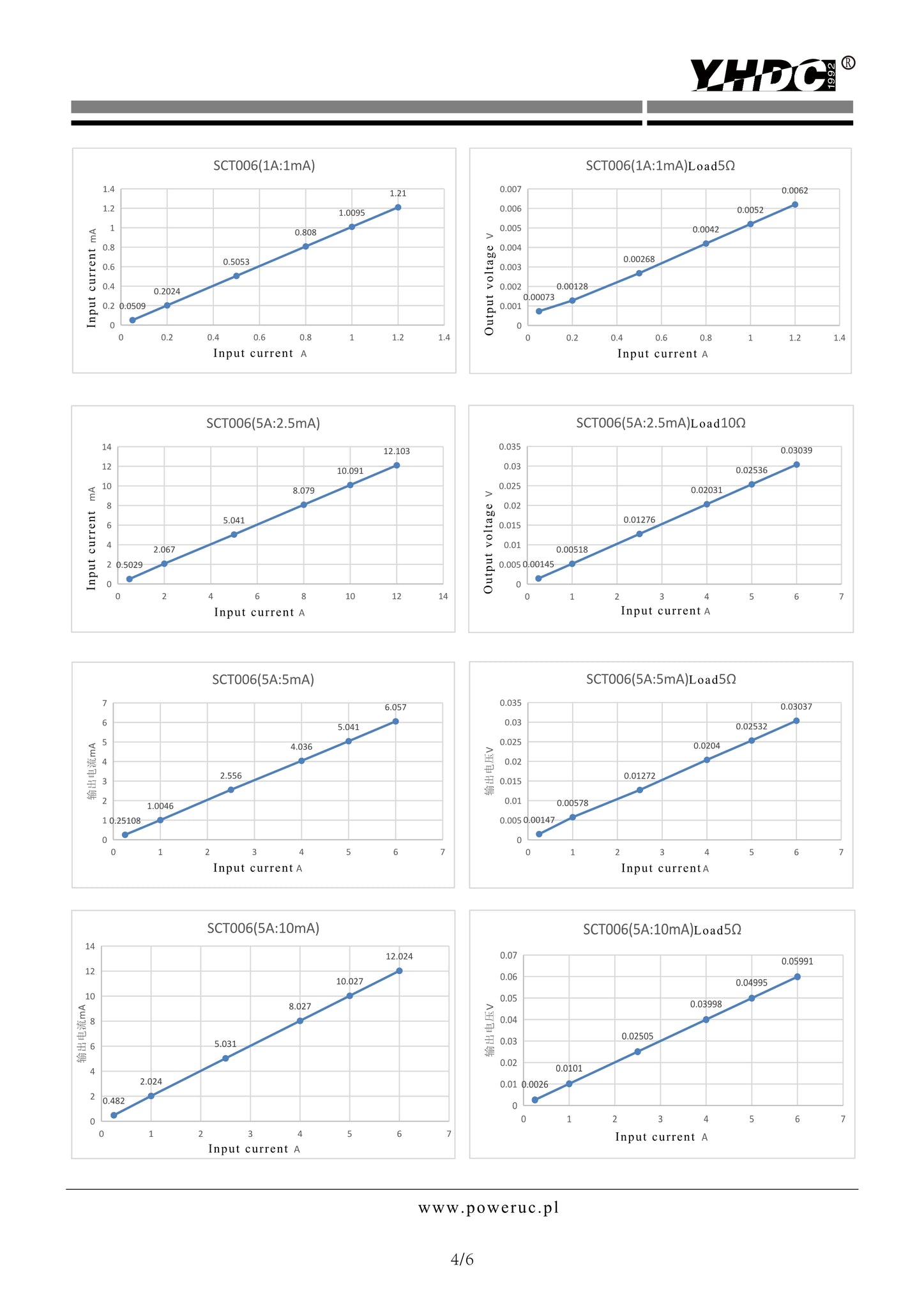

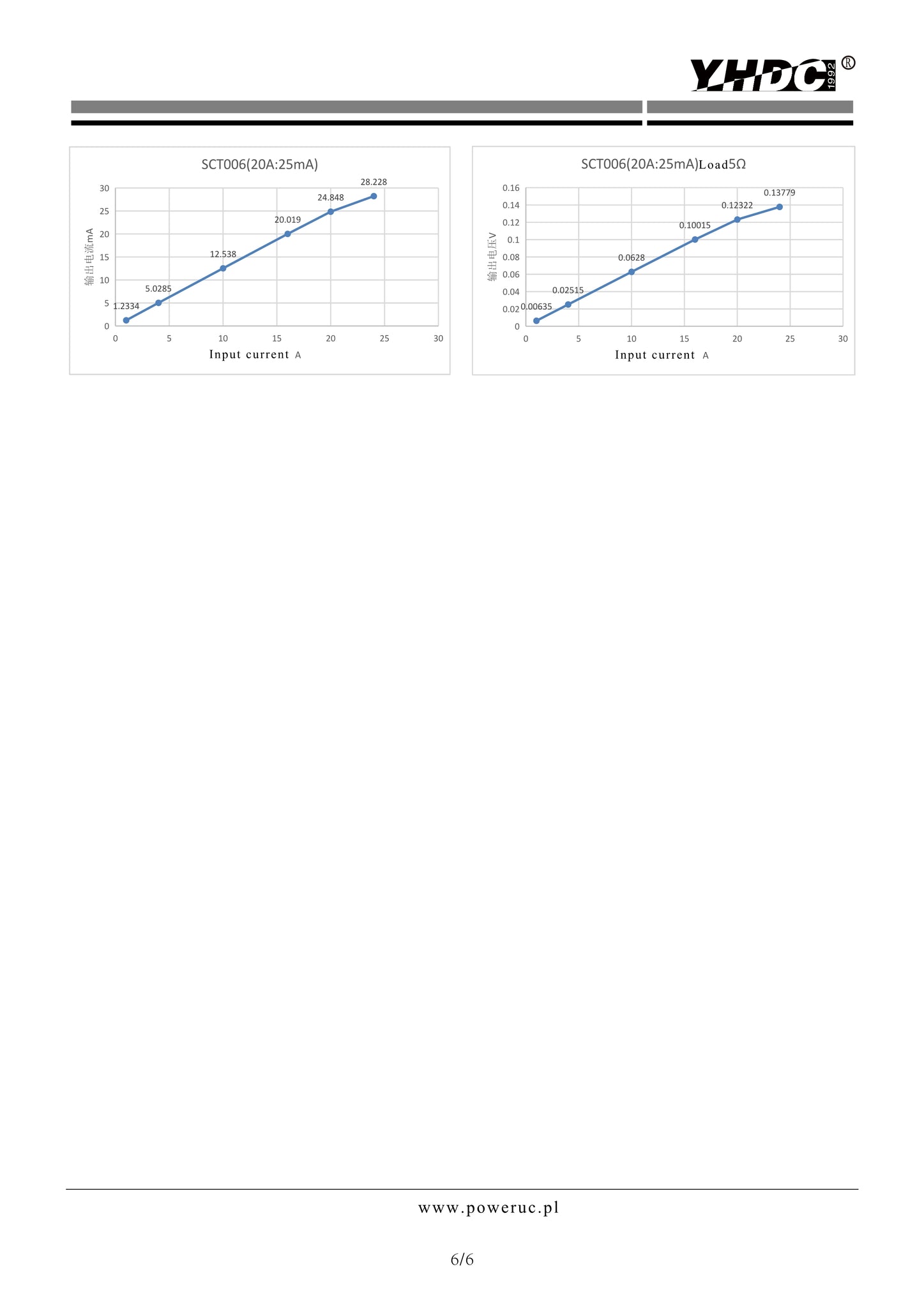

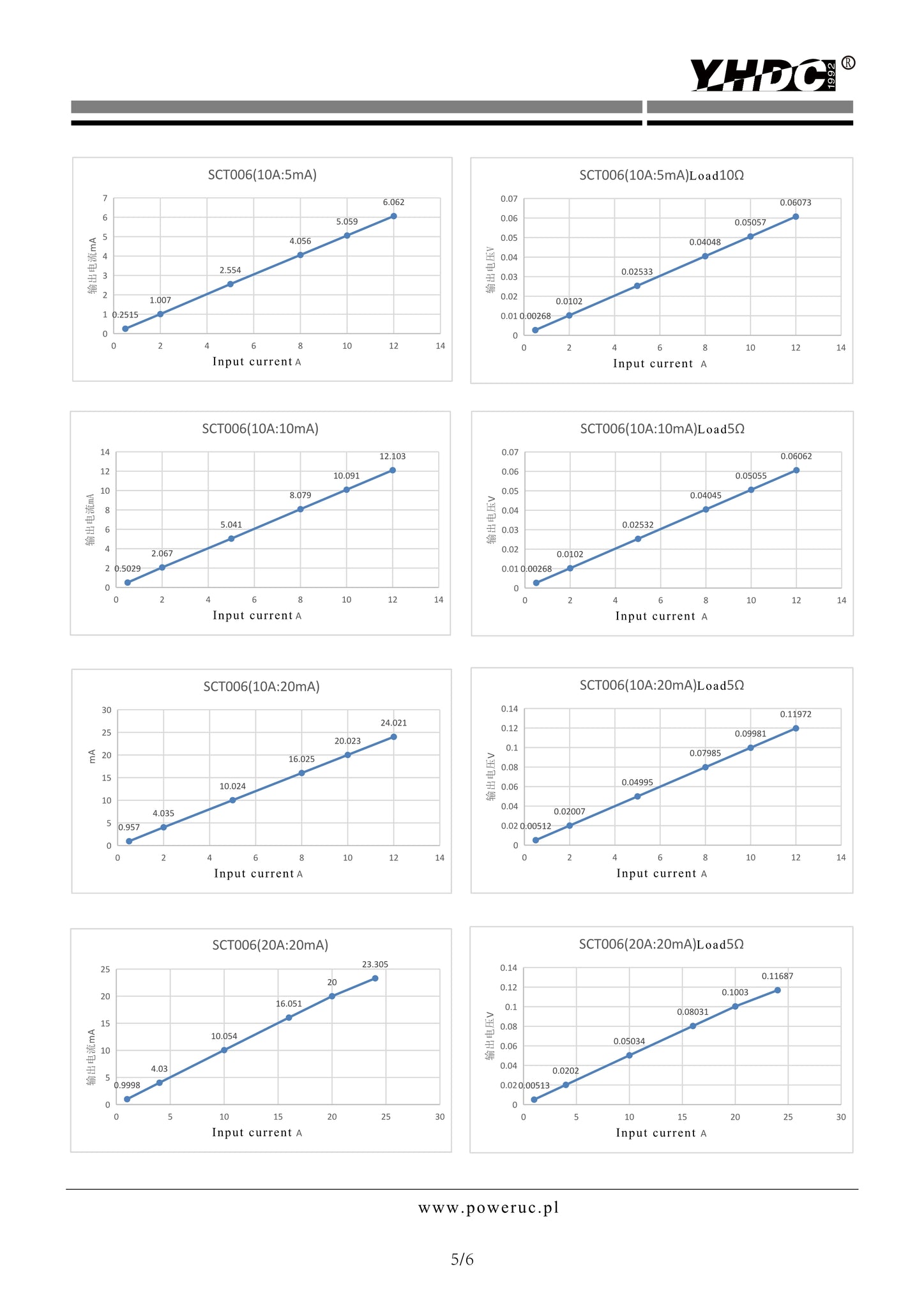

Electrical parameters:（The following parameters are typical values. The actual values shall be subject to the actual measurement of the product）

DOWNLOAD
