Split Core Current Transformer SCT010 rated input 10A 20A 30A 50A 60A 80A rated output 20mA 10mA 50mA 25mA 16.6mA 80mA 40mA 26.6mA 0.333V 1V 3V 5V

PowerUC

Shipping calculated at checkout.
Only 19 left!

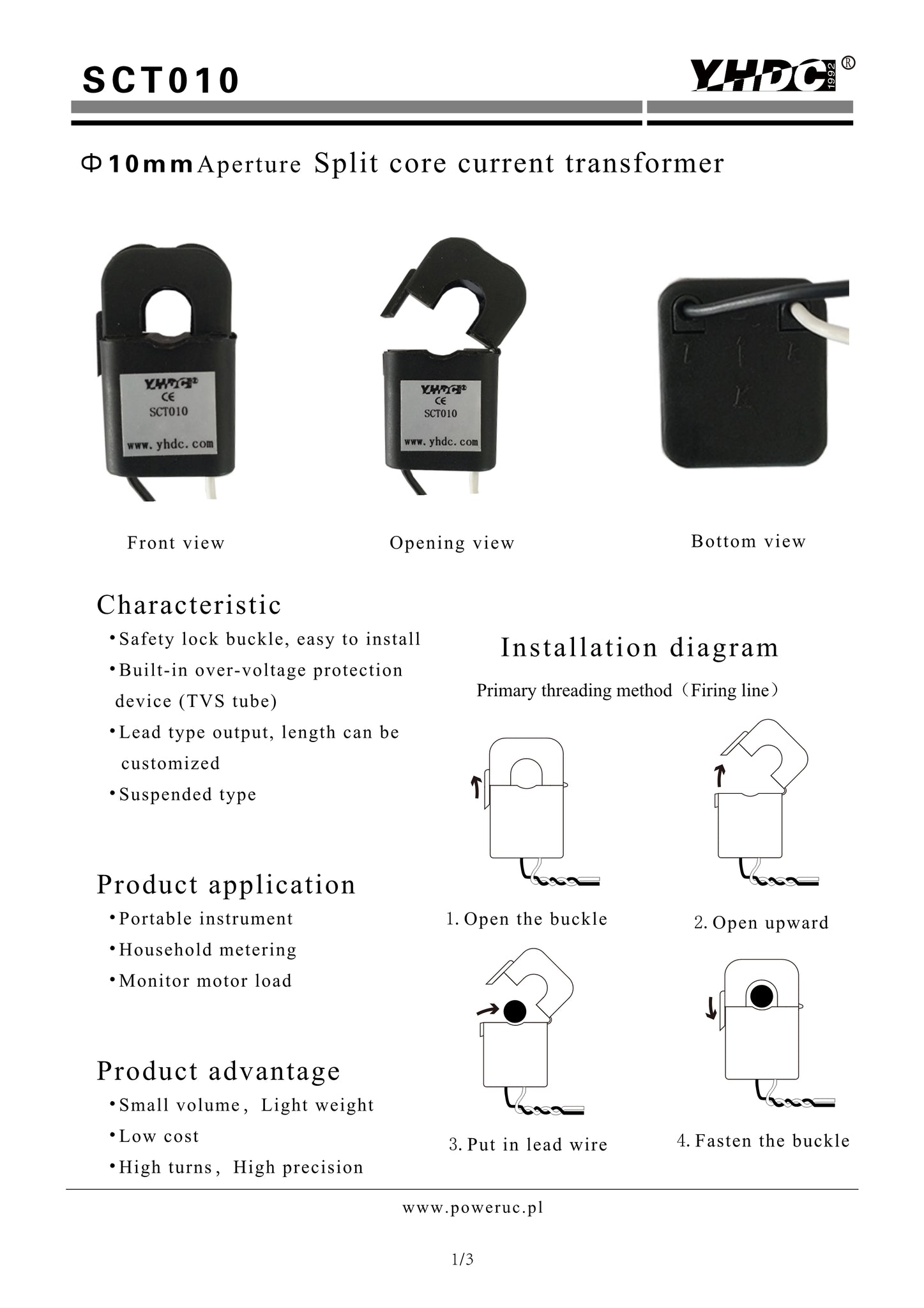

Characteristic:

Safety lock buckle, easy installation, cable output.

Typical technical index：

Mounting type:Free hanging (In-Line)

Material of core：Ferrite

Applicable standards：GB20840-2014

Operating temperature：-25℃～+60℃

Storage temperature：-30℃～+90℃

Frequency range：50Hz-1KHz

Waterproof grade: IP00

Dielectric strength：Input (bare conductor)/Output AC 800V/1min 50Hz

                                Output/housing AC 3.5KV/1min 50Hz

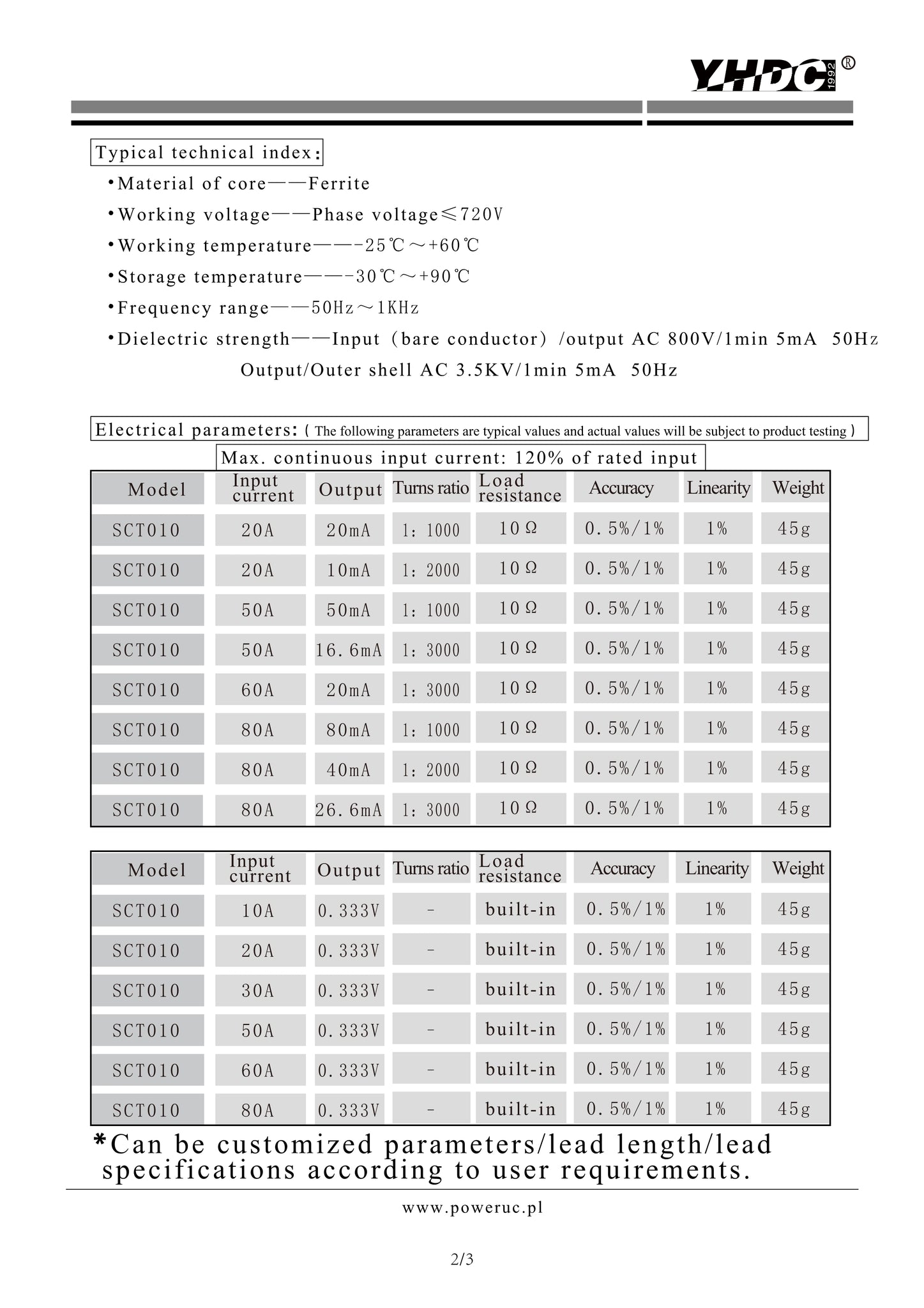

Electrical parameters:




DOWNLOAD-CURRENT TYPE OUTPUT

DOWNLOAD-VOLTAGE TYPE OUTPUT
