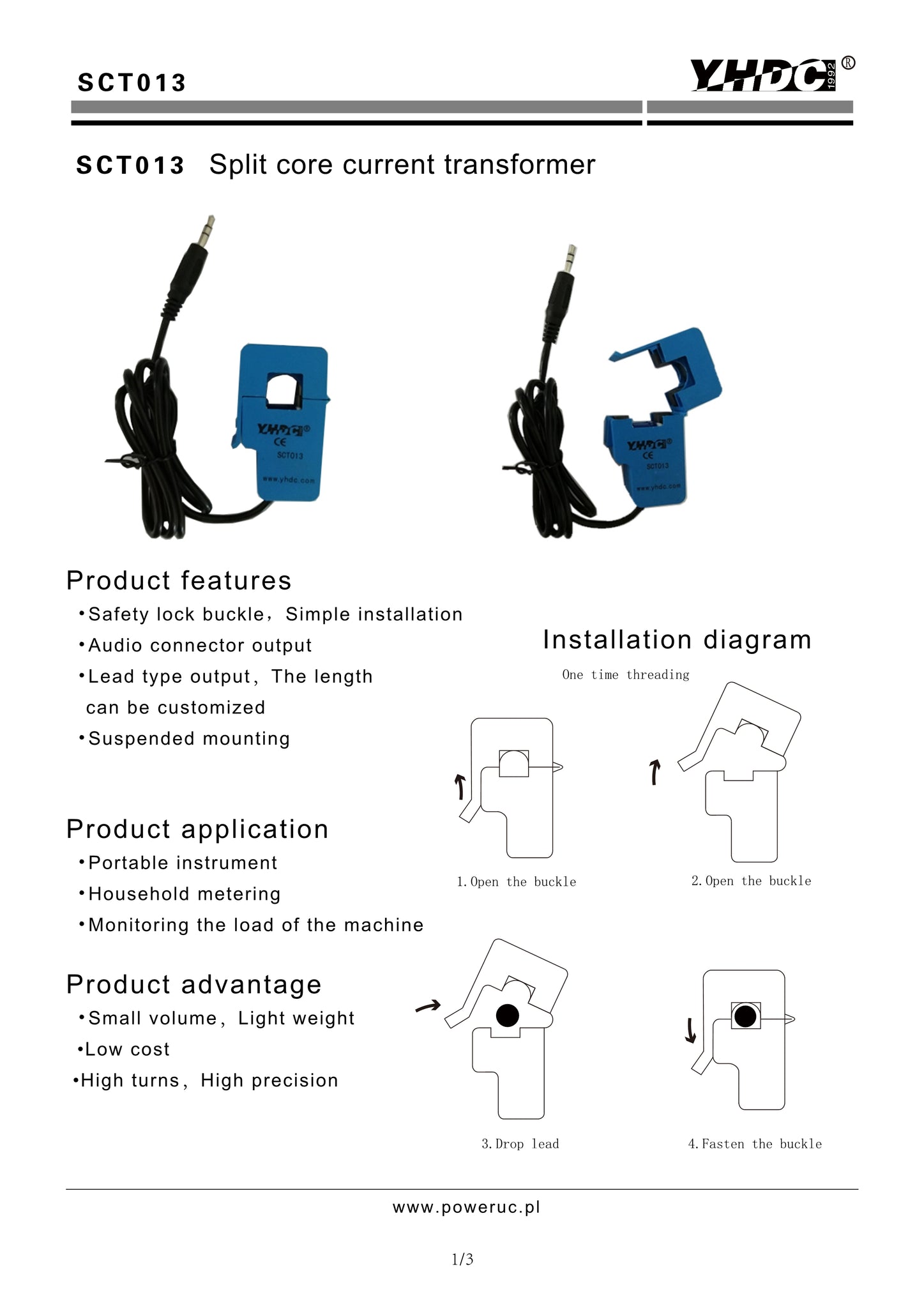

Split core current transformer SCT013 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA / 1V / 0.333V

PowerUC

Shipping calculated at checkout.

Quantity

Only 2773 left!

Model：SCT013

Characteristic:

Safety lock buckle, easy installation, cable output

Technical index:

Mounting type: Free hanging (In-Line)

Material of core: Ferrite

Applicable standards: GB20840-2014

Operating temperature: -25℃ ~ +70℃

Storage temperature: -30℃ ~ +90℃

Frequency range: 50Hz-1KHz

Waterproof grade: IP00

Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz

Output/Housing AC 3.5KV/1min 50Hz

Electrical parameters:
