Split Core Current Transformer SCT036TS rated input 50A 100A 200A 300A 400A 500A 600A rated output 0.1A/1A/5A/0.333V - PowerUC

Split Core Current Transformer SCT036TS rated input 100A 200A 300A 400A 500A 600A rated output 50mA/0.1A/1A/5A/0.333V/1V/3V/5V

PowerUC

Shipping calculated at checkout.
Only 152 left!

Model:SCT036TS

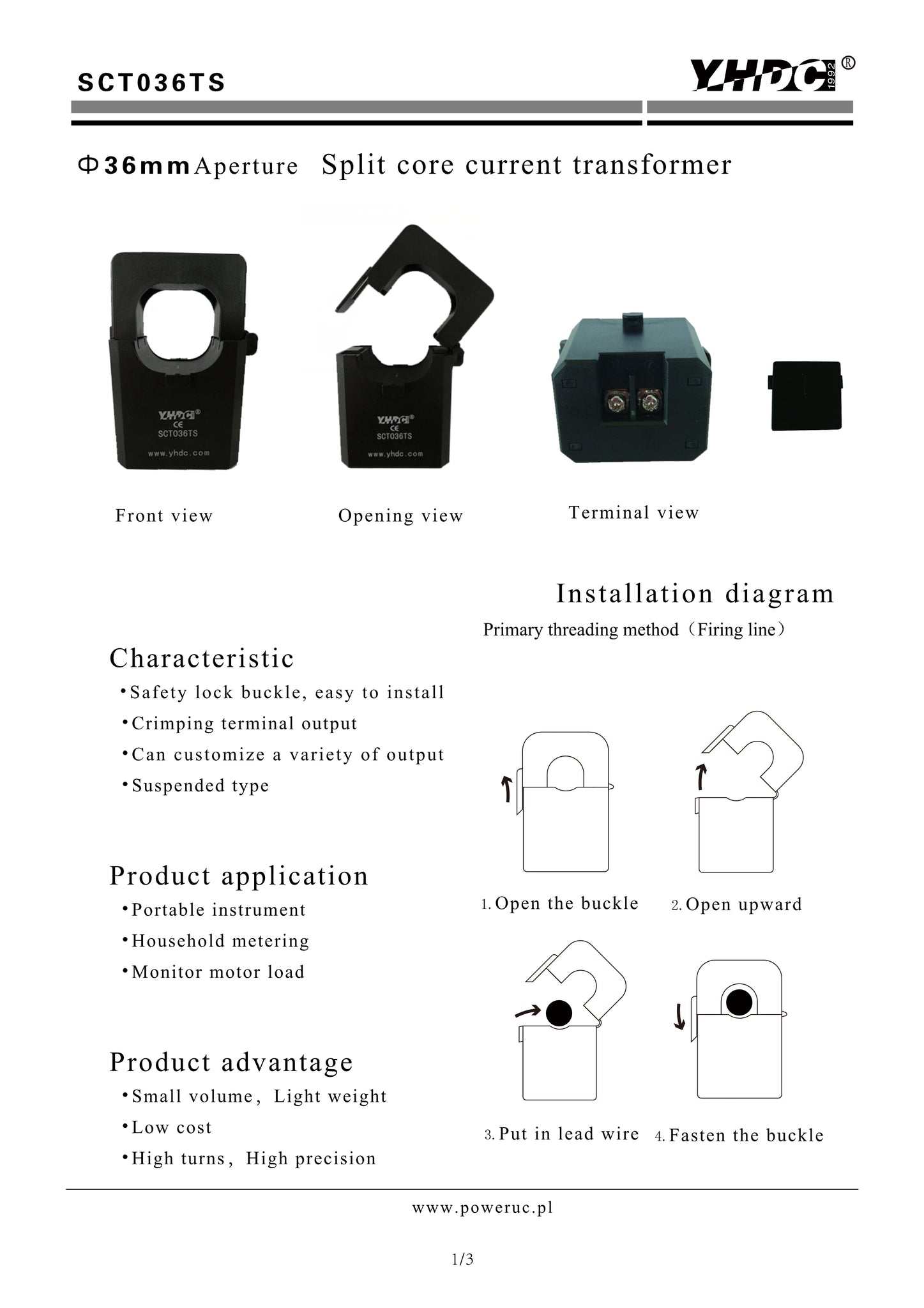

Characteristic:

Safety lock buckle, easy installation, screw terminal output.

Technical index：

Mounting type:Free hanging (In-Line)
Material of core: Laminated silicon steel
Applicable standards：GB20840-2014
Operating temperature：-25℃～+60℃
Storage temperature：-30℃～+90℃
Frequency range：50Hz-60Hz
Waterproof grade: IP00
Dielectric strength：3.5KV 50Hz 1min

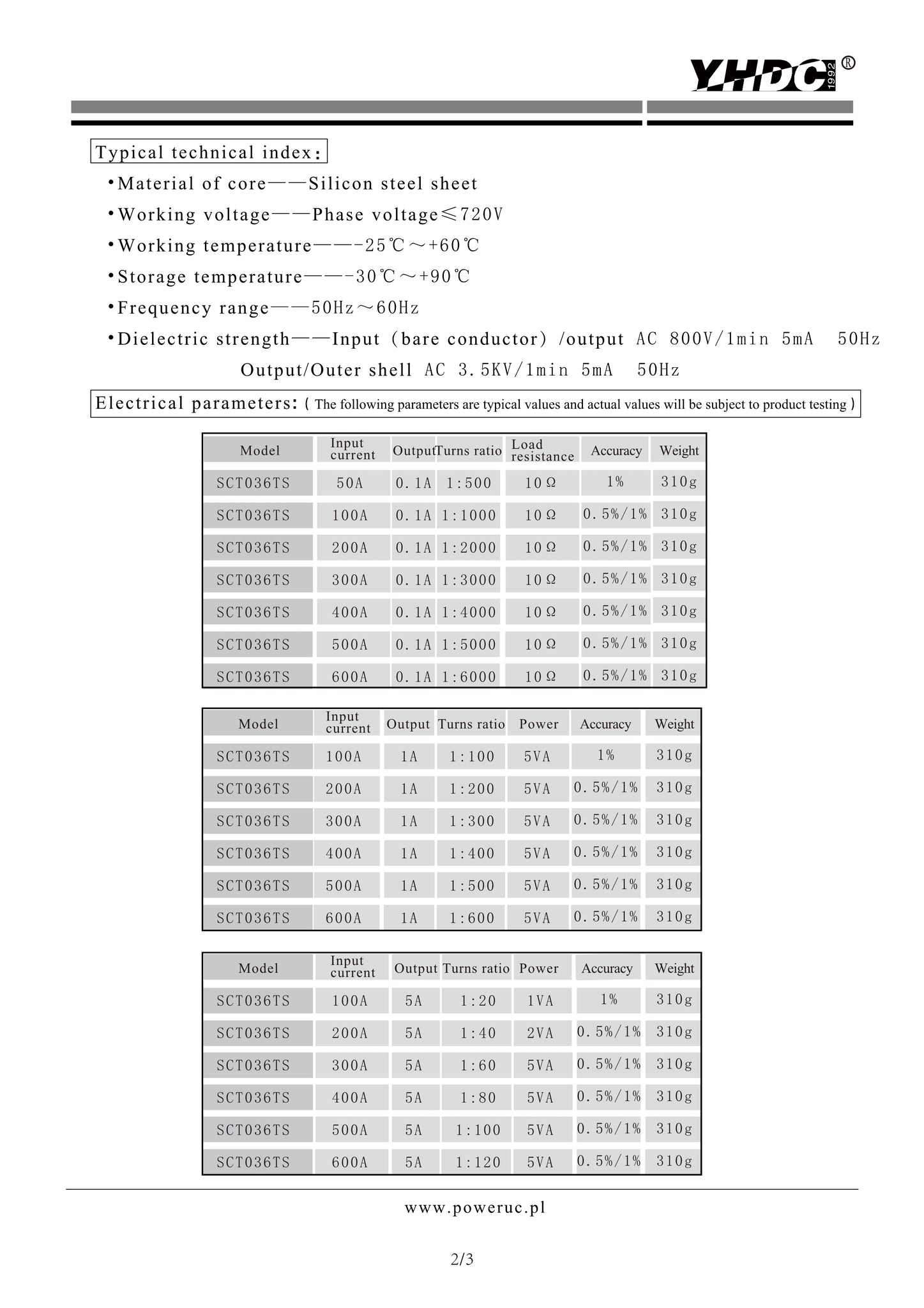

Electric Parameter:

DOWNLOAD-VOLTAGE TYPE OUTPUT

DOWNLOAD-MA CURRENT TYPE OUTPUT

DOWNLOAD-1A CURRENT TYPE OUTPUT

DOWNLOAD-5A CURRENT TYPE OUTPUT
