Split core current transformer SCT12080QT rated input 500A 800A 1000A 1500A 2000A 2500A 3000A rated output 1A/5A/0.333V

PowerUC

Shipping calculated at checkout.
Only 5 left!

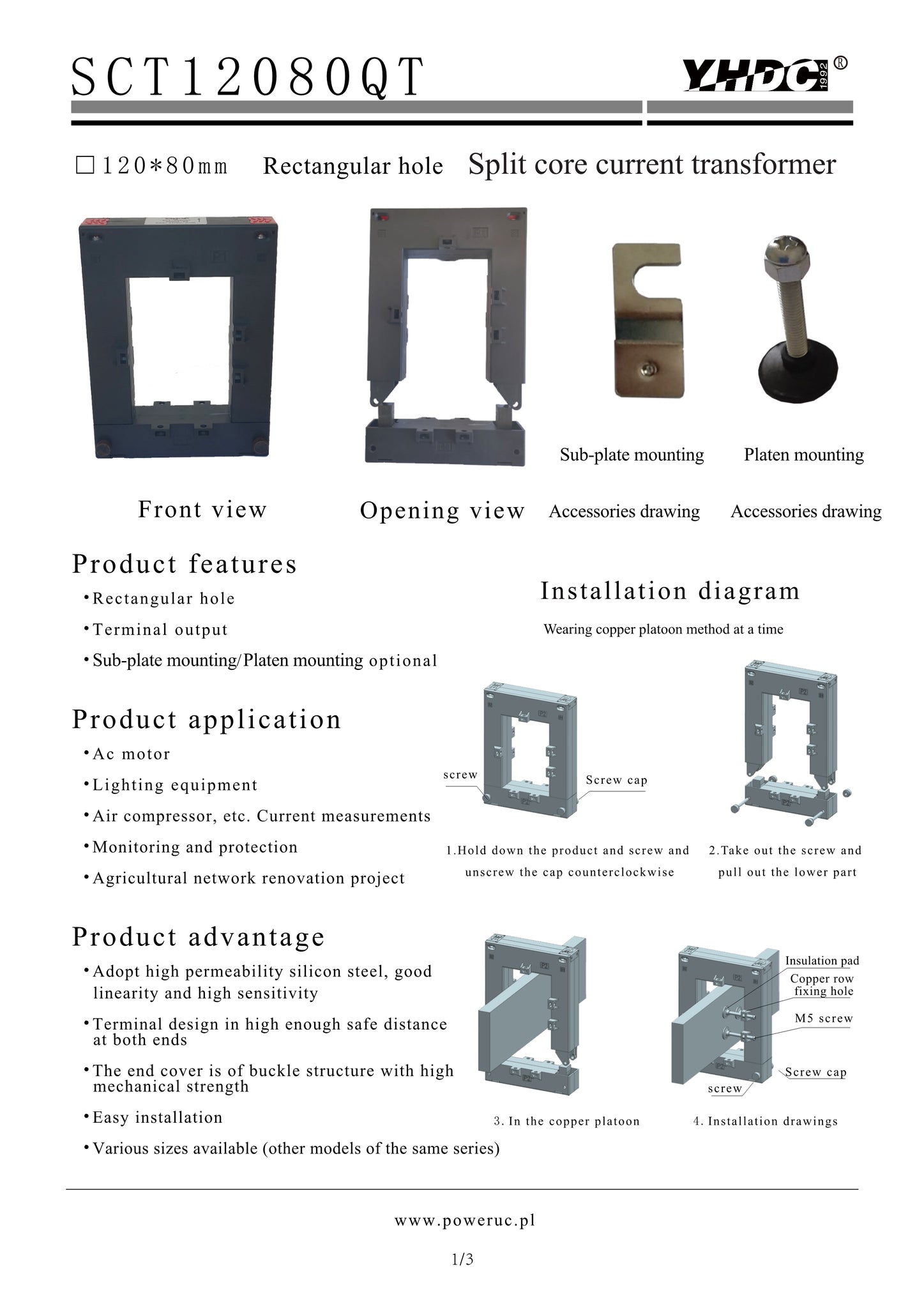

Characteristic:
Rectangle hole, crimping terminal output, hanging installation and sub-plate mounting.

Technical Indicators:

Material of core——Laminated silicon steel
Working voltage——Phase voltage≤720V
Working temperature——-20℃～+60℃
Storage temperature——-25℃～+90℃
Frequency range——50Hz～60Hz
Waterproof grade——IP00
Dielectric strength——Output/shell AC 3.5KV/1min 5mA 50Hz
Weight——1616g（for reference only）

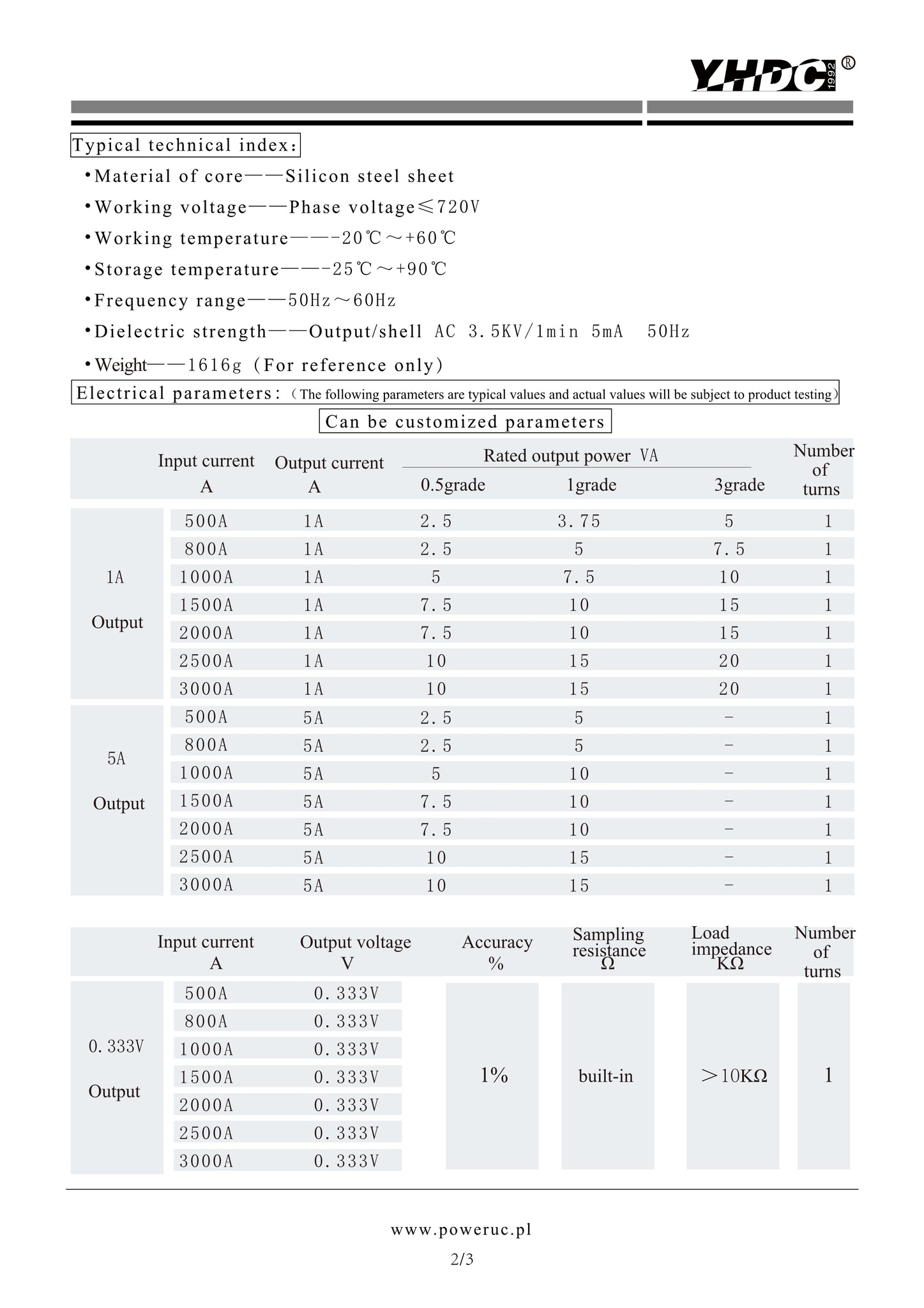

Electric Parameter:

DOWNLOAD
