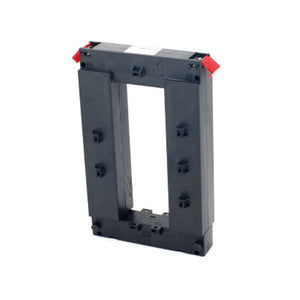

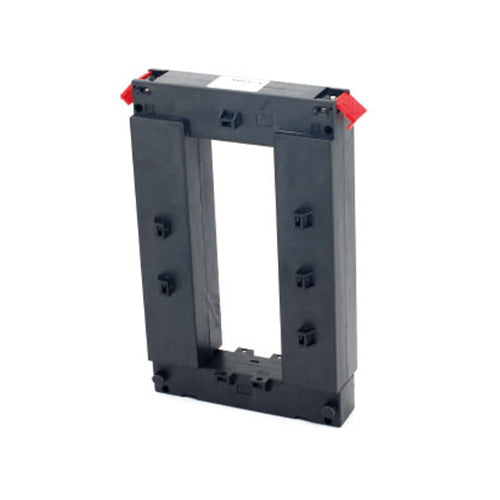

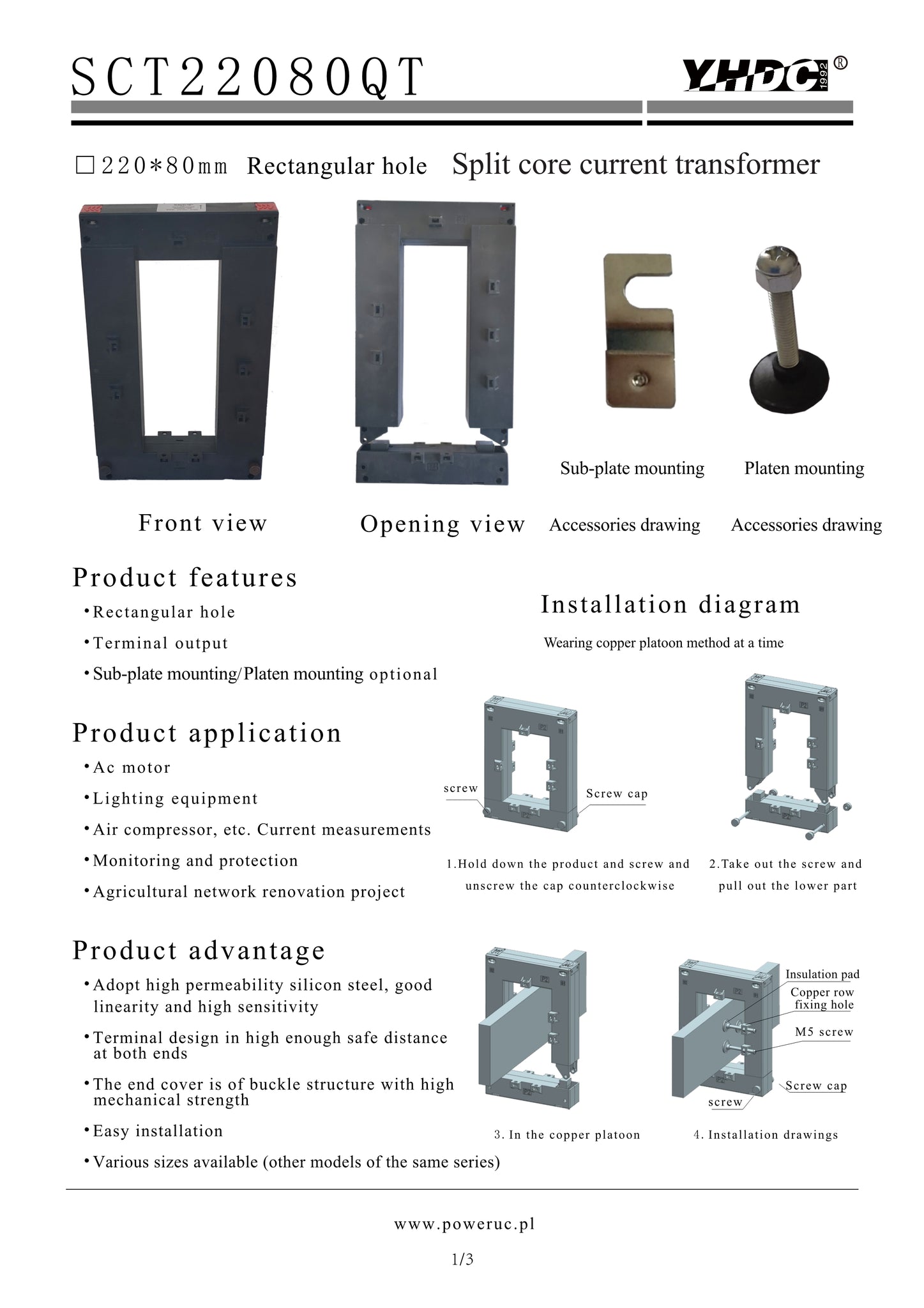

Split core current transformer SCT22080QT rated input 1000A 1500A 2000A 2500A 3000A 4000A 5000A rated output 1A/5A/0.333V
Characteristic:

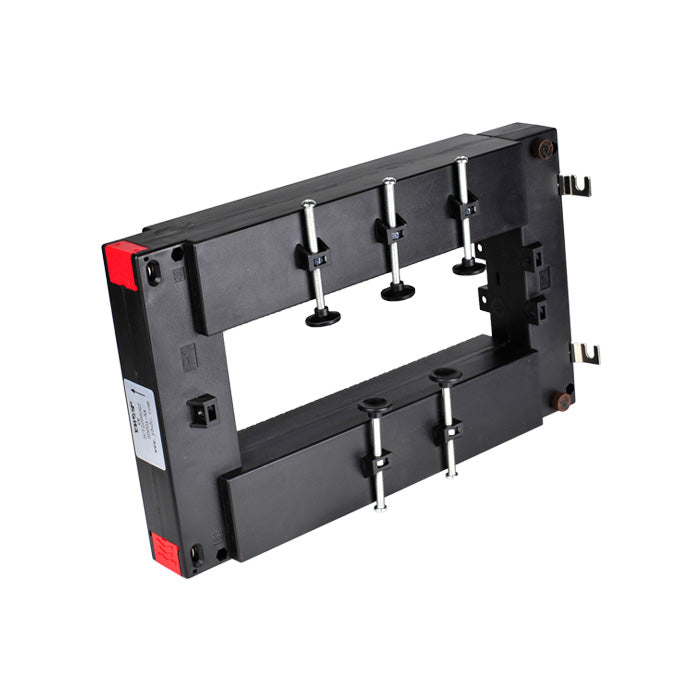

Rectangle hole, screw terminal output, free hanging and plate mounting.

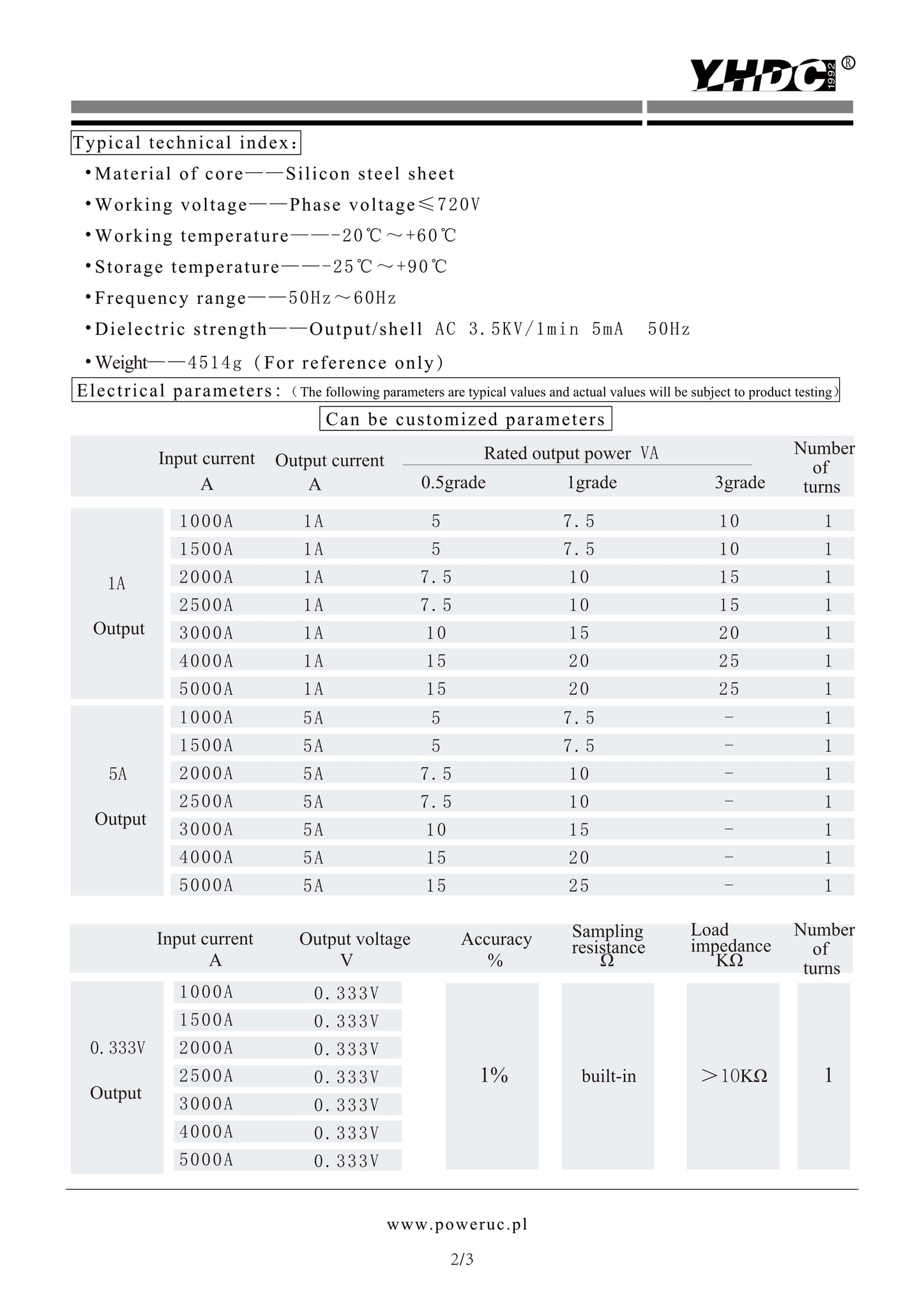

Technical Indicators:
Material of core——Laminated silicon steel
Working voltage——Phase voltage≤720V
Working temperature——-20℃～+60℃
Storage temperature——-25℃～+90℃
Frequency range——50Hz～60Hz
Waterproof grade——IP00
Dielectric strength——Output/shell AC 3.5KV/1min 5mA 50Hz
Weight——4514g（for reference only）
Electric Parameter:
