Through core type precision current transformer TA1030 Rated input 25A/30A Rated output 25mA/30mA - PowerUC

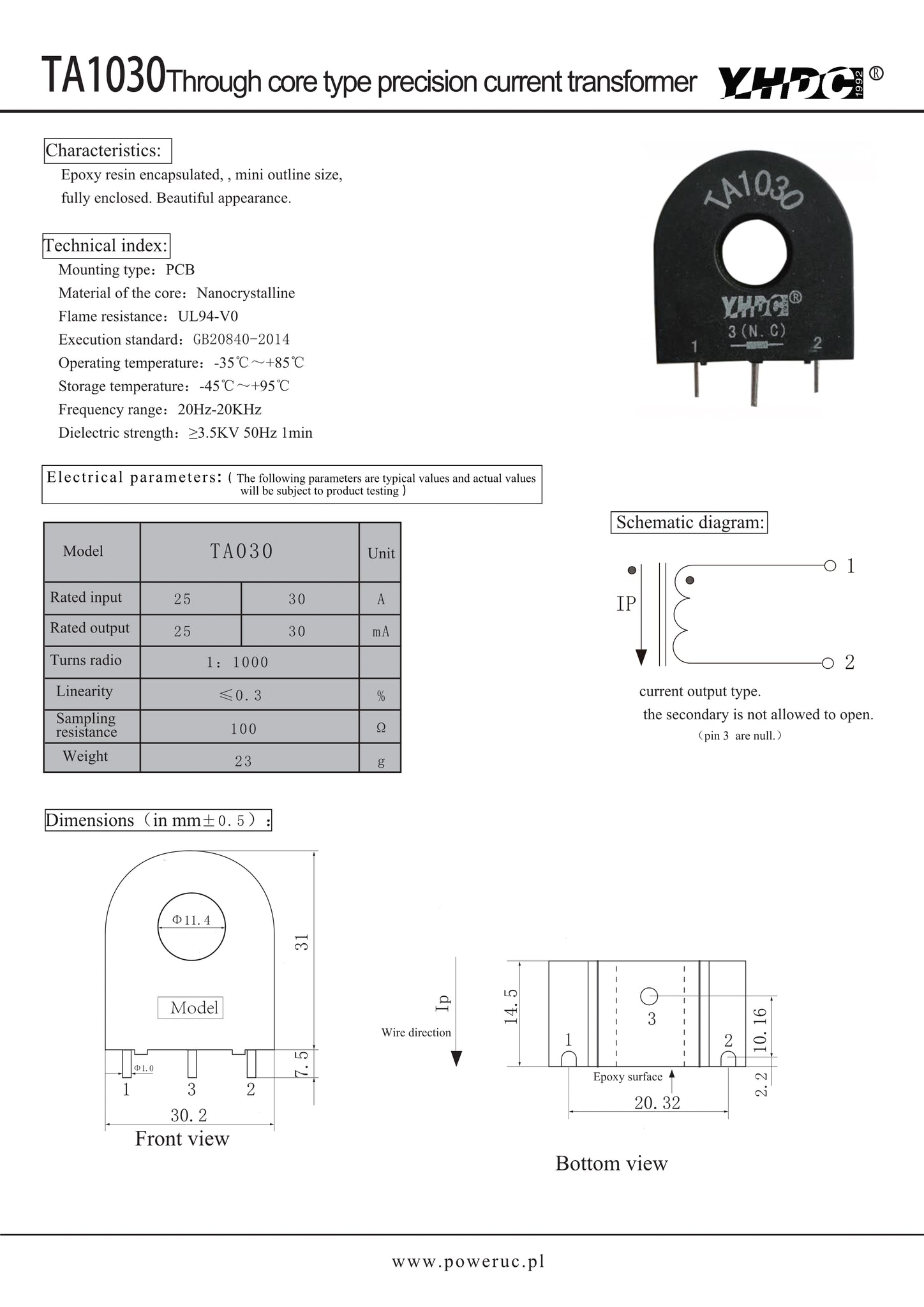

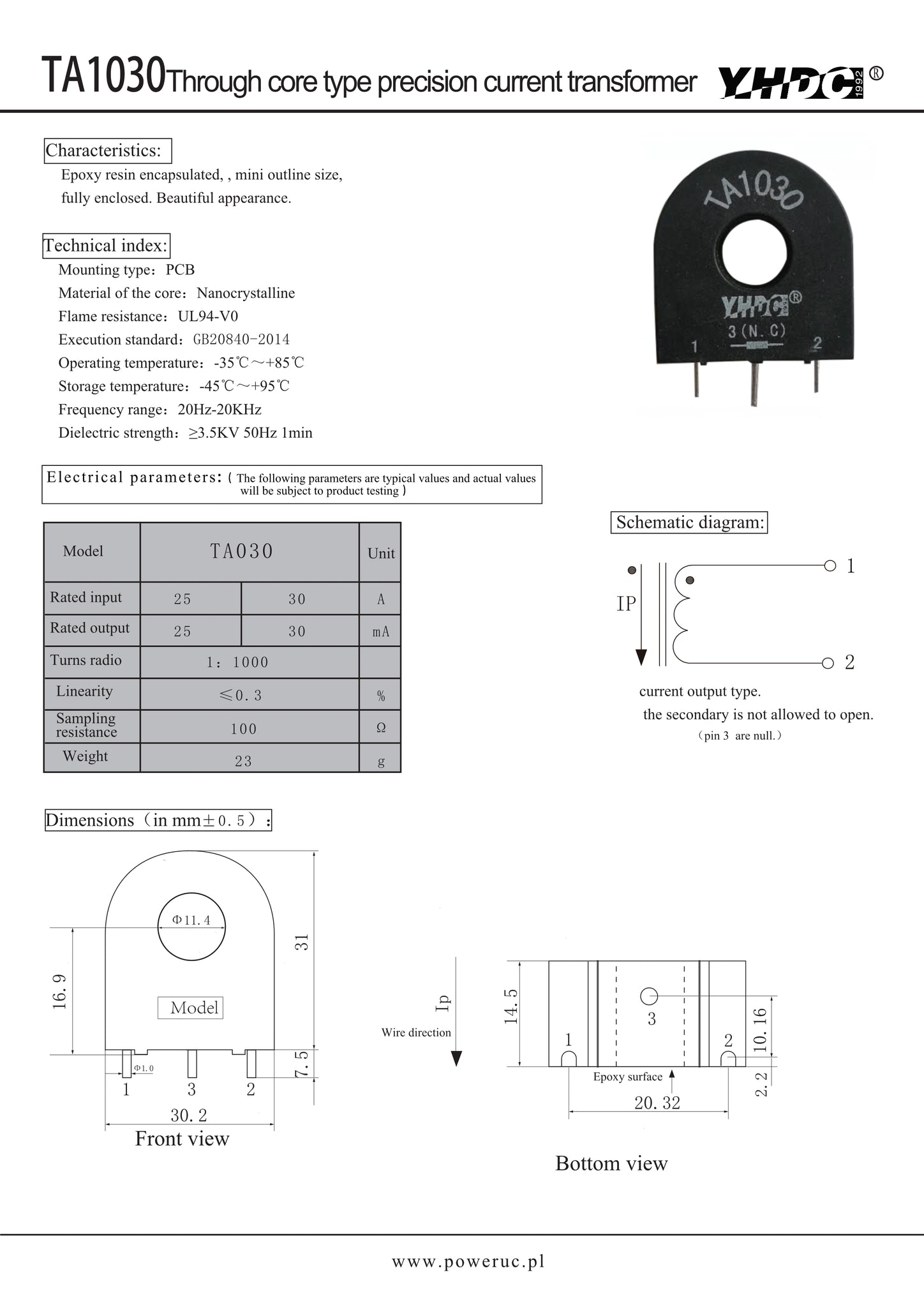

Through core type precision current transformer TA1030 Rated input 25A/30A Rated output 25mA/30mA

PowerUC

Shipping calculated at checkout.
Only 30 left!

Characteristics:
Overcurrent detection, leakage current detection, AC current detection, for analog/digital conversion circuit.

Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: ≥3.5KV 50Hz 1min

Electrical Parameter:

DOWNLOAD
