Hall open loop current sensor HK16 Rated input ±50A ±100A ±200A ±300A ±400A Rated output ±4V - PowerUC

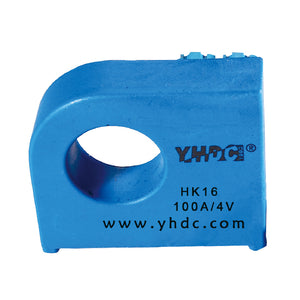

Open loop current sensor HK16 Rated input ±50A ±100A ±200A ±300A ±400A Rated output ±4V

PowerUC

Shipping calculated at checkout.
Only 30 left!

Open loop, wear core aperture Ø16, PCB welding type.  Detect DC, AC and pulse current.

Technical Indicators:
Flame retardant: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: +25°C ~ +70°C
Bandwidth: DC ~ 50KHz
Dielectric strength: 2.5KV 50Hz 1min

Technical Parameters:

DOWNLOAD
