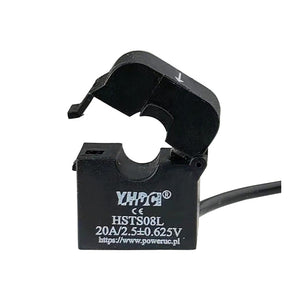

Split core current sensor HSTS08L Rated input ±10A/±20A Rated output 2.5V±0.625V

Split core current sensor HSTS08L Rated input ±10A/±20A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 18 left!

Model:HSTS08L

Circular hole, suspended mounting, lead wire output;

The faulty connection can lead to product damage, detection DC, AC, pulse current; The primary detection current are linearly related to output, and the output signal can be directly entered into the automatic control equipment or PLC port

Technical index:

Flame resistance：UL94-V0

Operating temperature：-25～+70℃

Storage temperature：-25～+70℃

 Dielectric strength：2.5KV 50Hz 1min

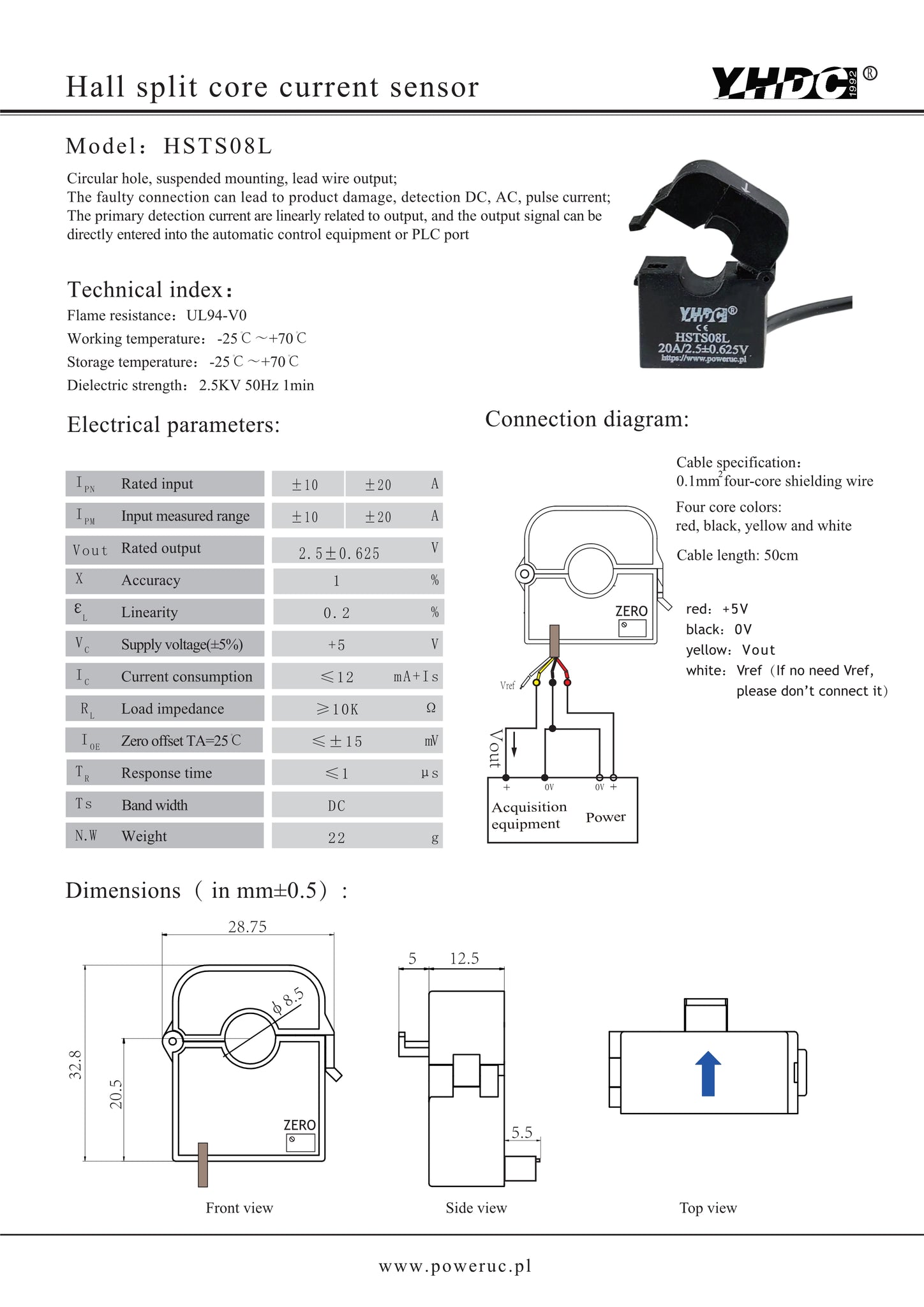

Electric parameters:

DOWNLOAD
