Split core current sensor HSTS40 Rated input ±200A ±500A ±800A ±1000A ±1500A ±2000A Rated output 2.5V±0.625V

Split core current sensor HSTS40 Rated input ±200A ±500A ±800A ±1000A ±1500A ±2000A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 5 left!

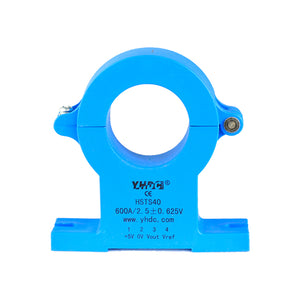

Model：HSTS40

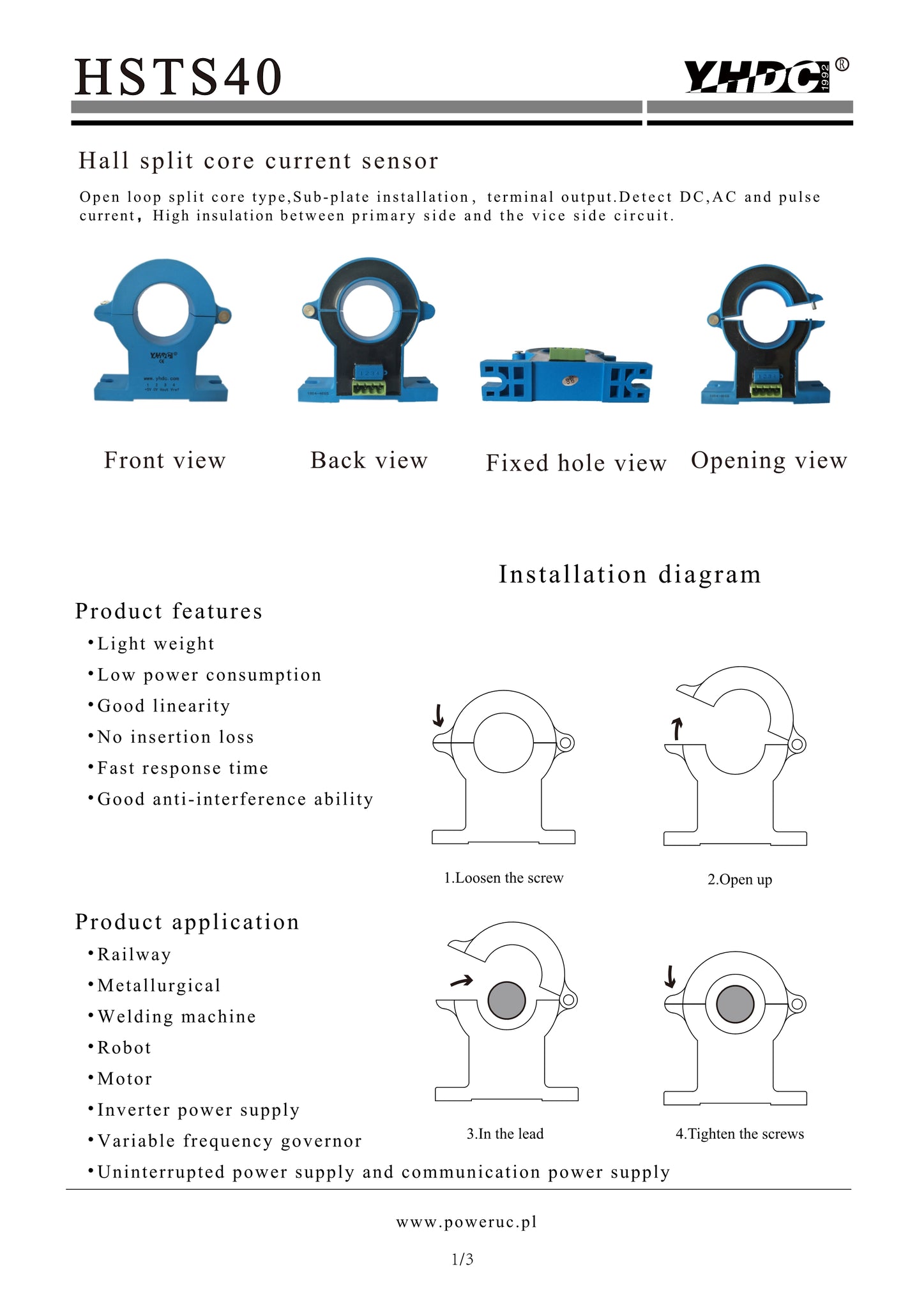

Open loop split core type,Sub-plate mounting type. Detect DC,AC and pulse current.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC～25kHz

Dielectric strength：2.5KV 50Hz 1min

Electric parameters:

DOWNLOAD
