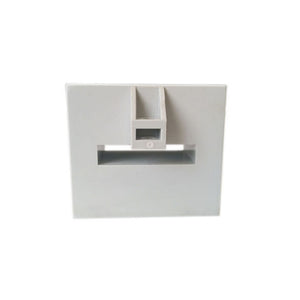

Model:HKS3106/A

Characteristics:

Detect DC,AC and puls e current，High insulation between primary side and the vice side circuit.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Bandwidth: DC ~ 25KHz
Dielectric strength: 3KV 50Hz 1min

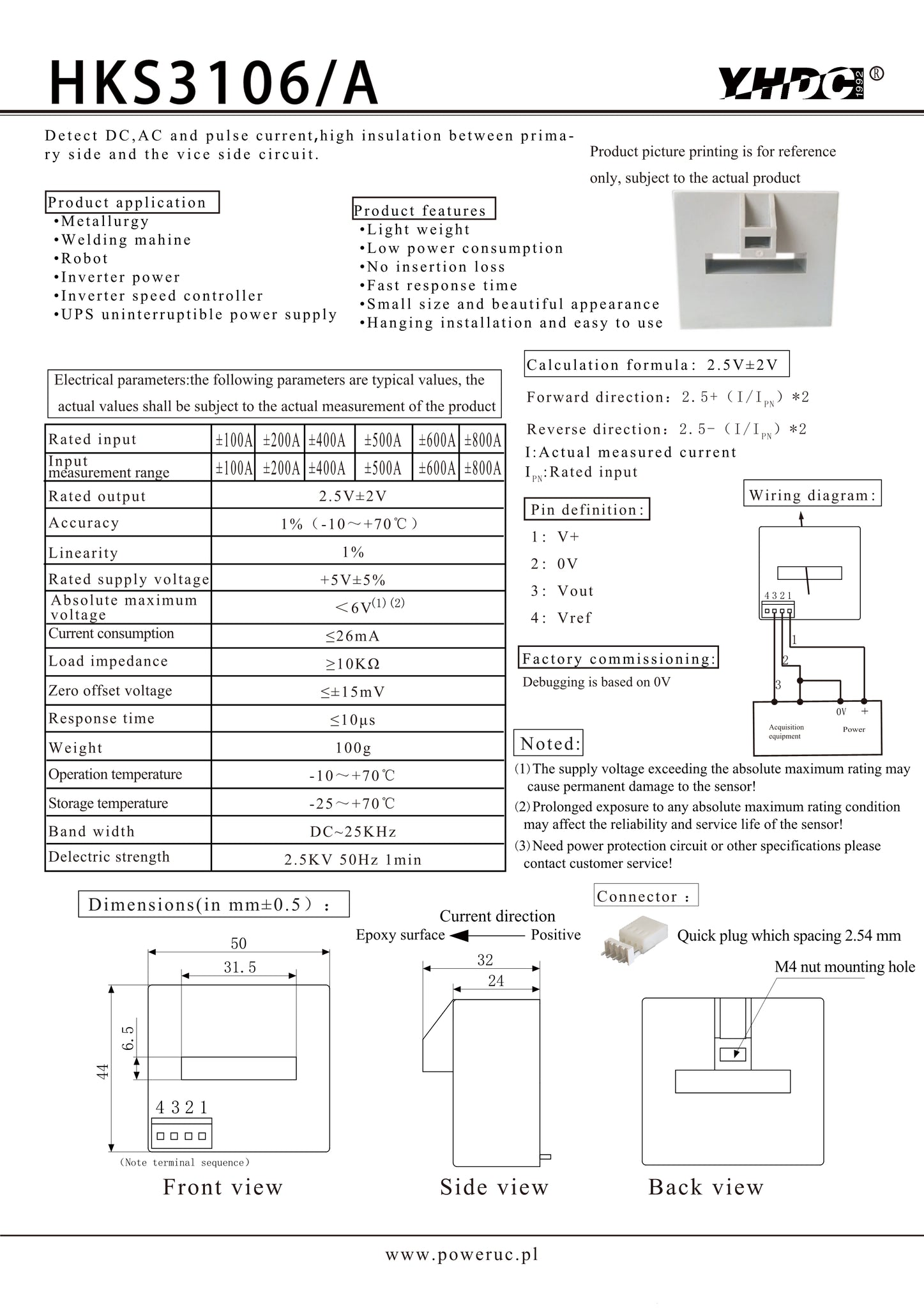

Electrical Parameters:
