Hall open loop current sensor HK2010 Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output ±4V - PowerUC

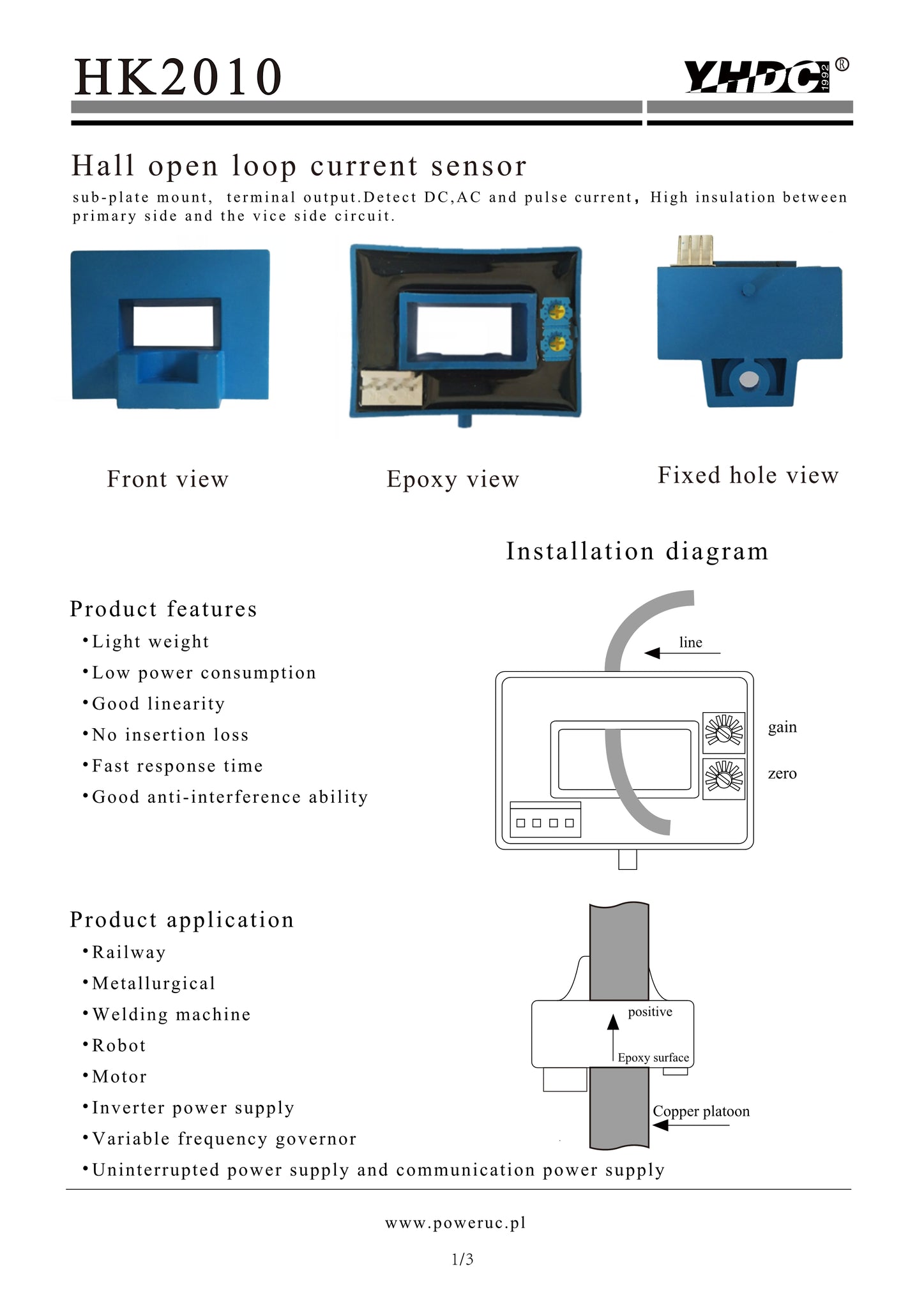

Open loop current sensor HK2010 Rated input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Rated output ±4V

PowerUC

Shipping calculated at checkout.
Only 80 left!

Model:HK2010

Characteristics:

Open loop hall circuit, sub-plate installation, single or double supply voltage.  Detect DC, AC and pulse current.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: +25°C ~ +70°C
Bandwidth: DC ~ 50KHz
Dielectric strength: 3KV 50Hz 1min

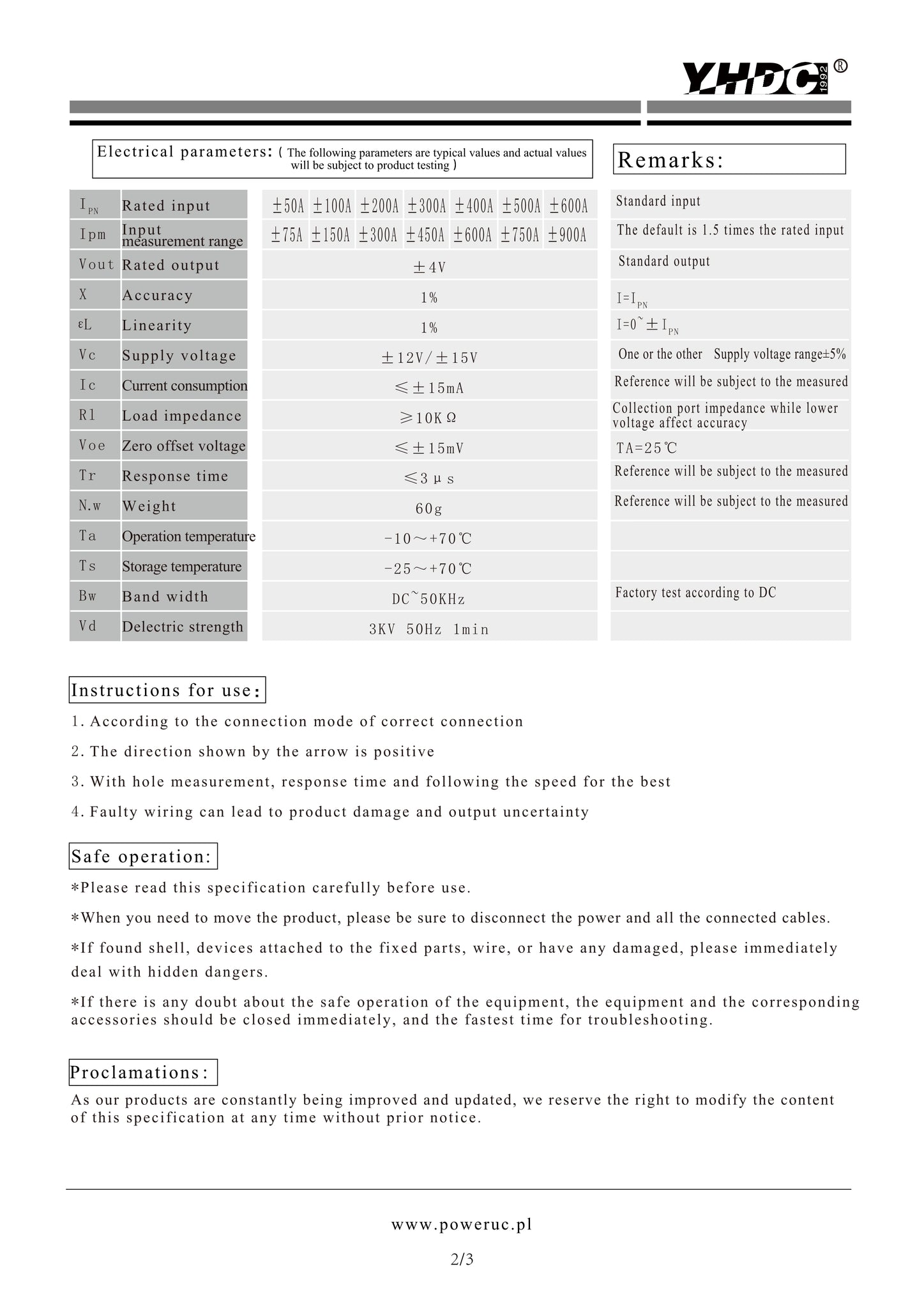

Electrical Parameters:
