Hall open loop current sensor HKBS16 Rated input ±50A ±100A ±200A ±300A ±400A Rated output 2.5V±0.625V - PowerUC

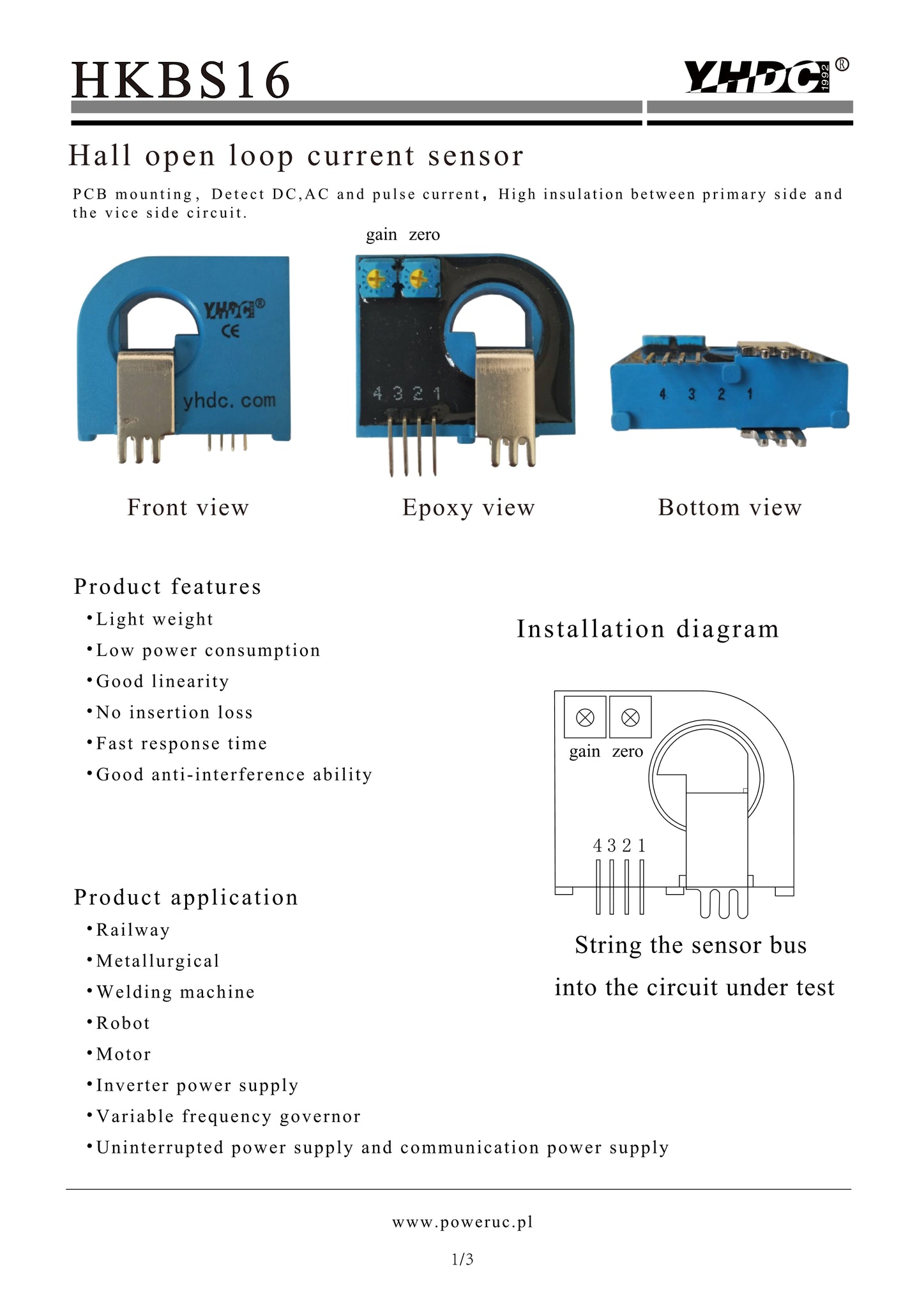

Open loop current sensor HKBS16 Rated input ±50A ±100A ±200A ±300A ±400A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Open loop, busbar built-in, (can through core) PCB welding type.  Detect DC, AC and pulse current.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Bandwidth: DC ~ 50KHz
Dielectric strength: 2.5KV 50Hz 1min

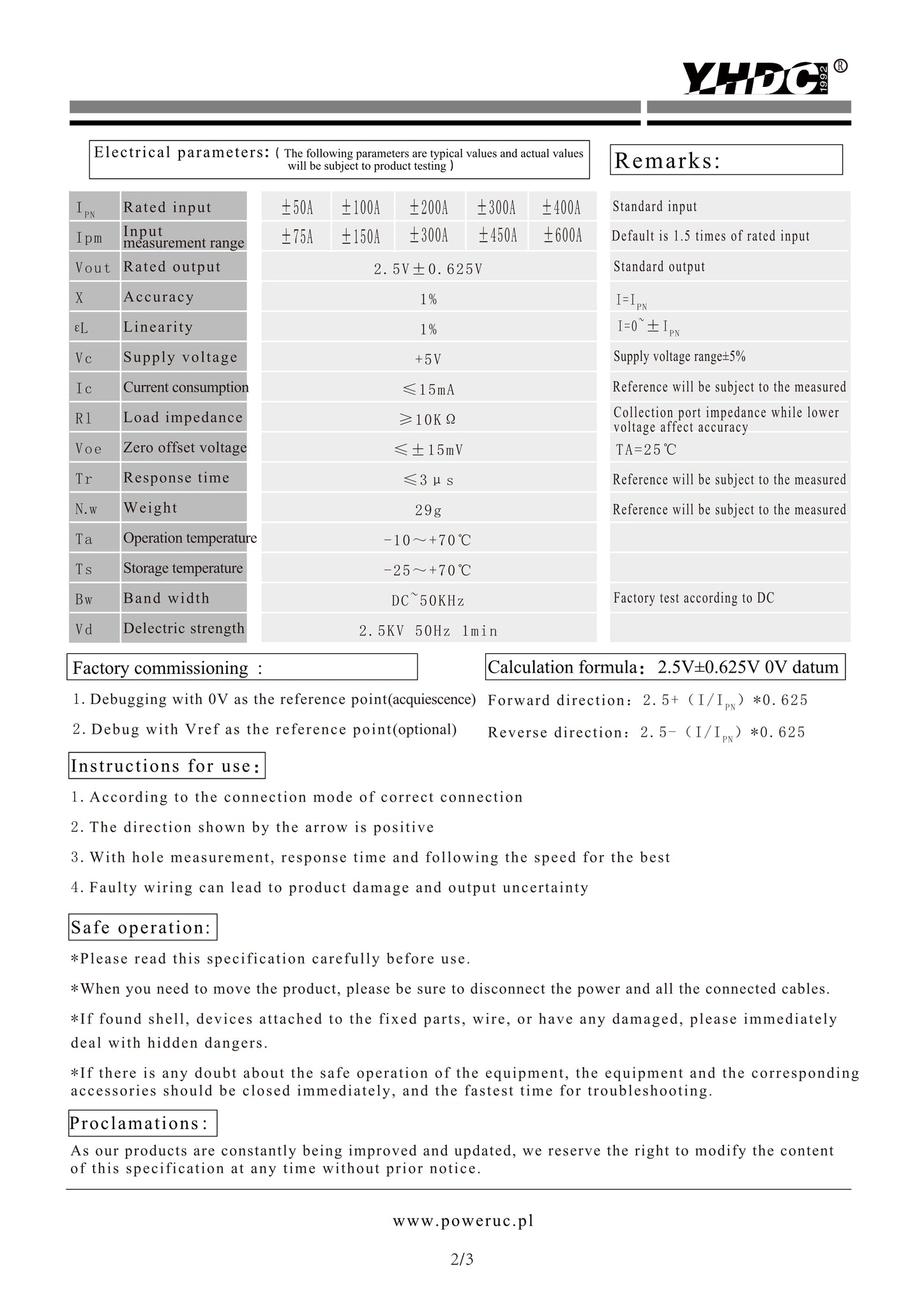

Electrical parameters:

DOWNLOAD
