Closed loop current sensor HAS25 Rated input ±0.25A ±0.5A ±1A ±1.5A ±2A ±3A ±5A Rated output 1.65V±0.625V/ 2.5V±0.625V +3.3V/+5V

Closed loop current sensor HAS25 Rated input ±0.25A ±0.5A ±1A ±1.5A ±2A ±3A ±5A Rated output 1.65V±0.625V/ 2.5V±0.625V +3.3V/+5V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

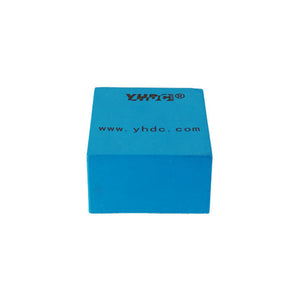

Model：HAS25

Detect DC,AC and puls e current, high insulation between primary side and the vice side circuit.

Technical indicators:

Flame resistance：UL94-V0

Working temperature：-25～+70℃

Storage temperature：-25～+70℃

Dielectric strength：2.5KV 50Hz 1min

Electrical parameters:

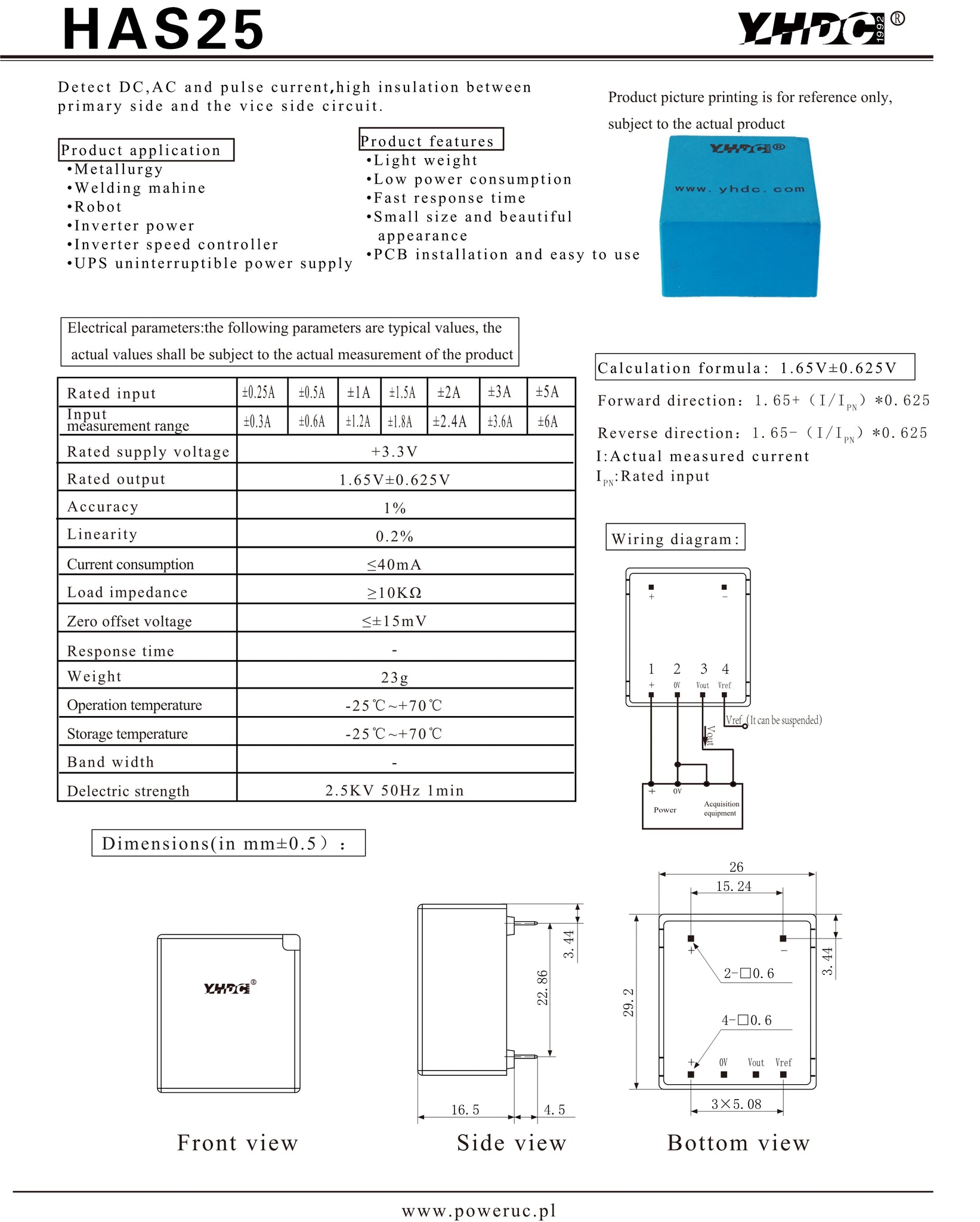

DOWNLOAD-HAS25 1.65V±0.625V+3.3V

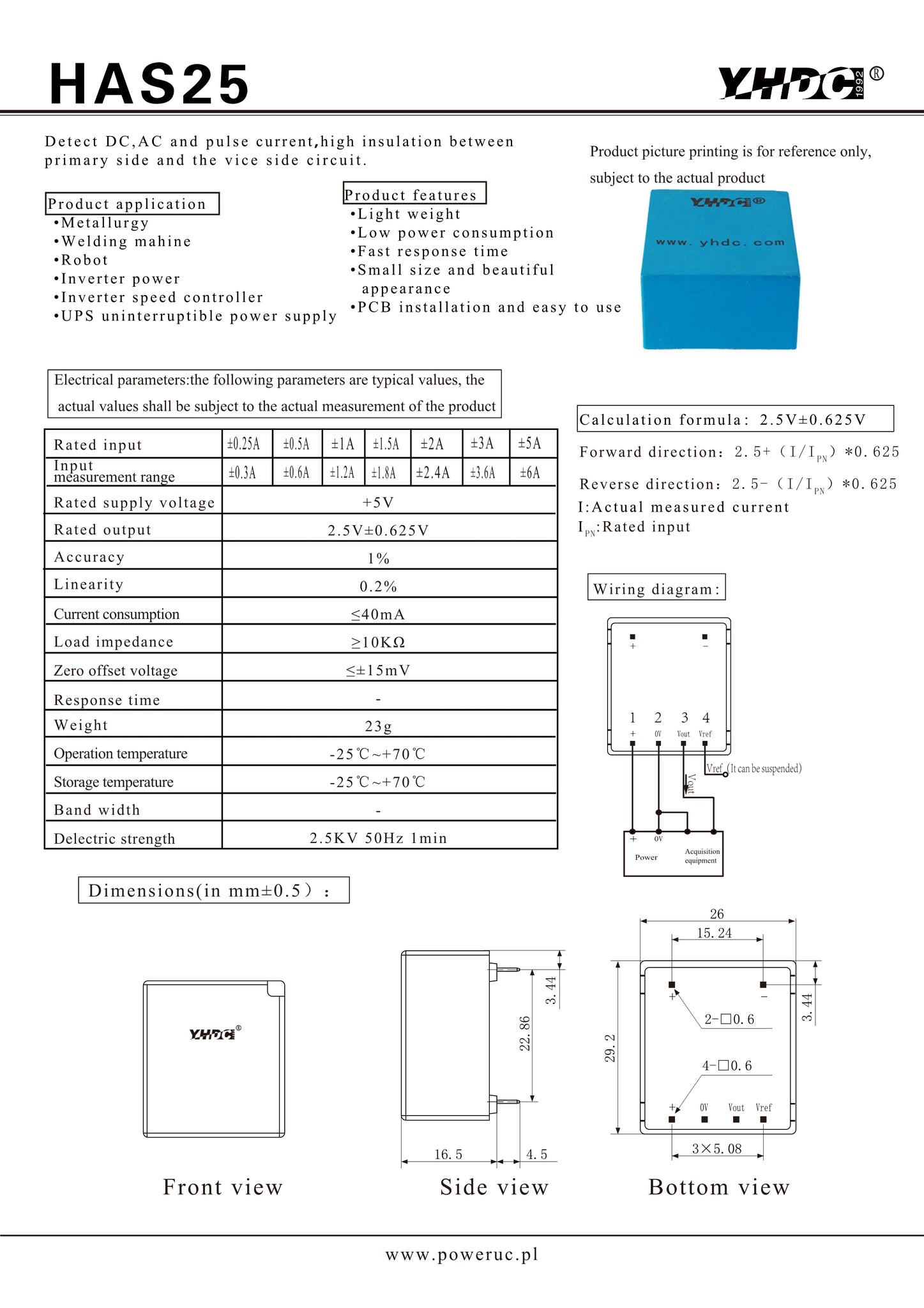

DOWNLOAD-HAS25 2.5V±0.625V +5V
