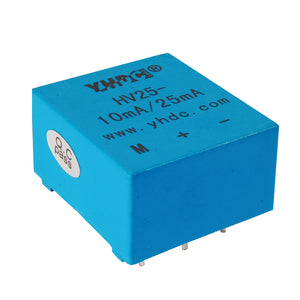

Voltage sensor HV25 Rated input ±5mA/±10mA Rated output ±25mA

PowerUC

Shipping calculated at checkout.

Quantity

Only 0 left!

Will be in stock after

Closed loop current type,PCB mounting type; Current limiting resistance and sampling resistance external. Detect DC,AC and pulse voltage.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Dielectric strength：2.5KV 50Hz 1min

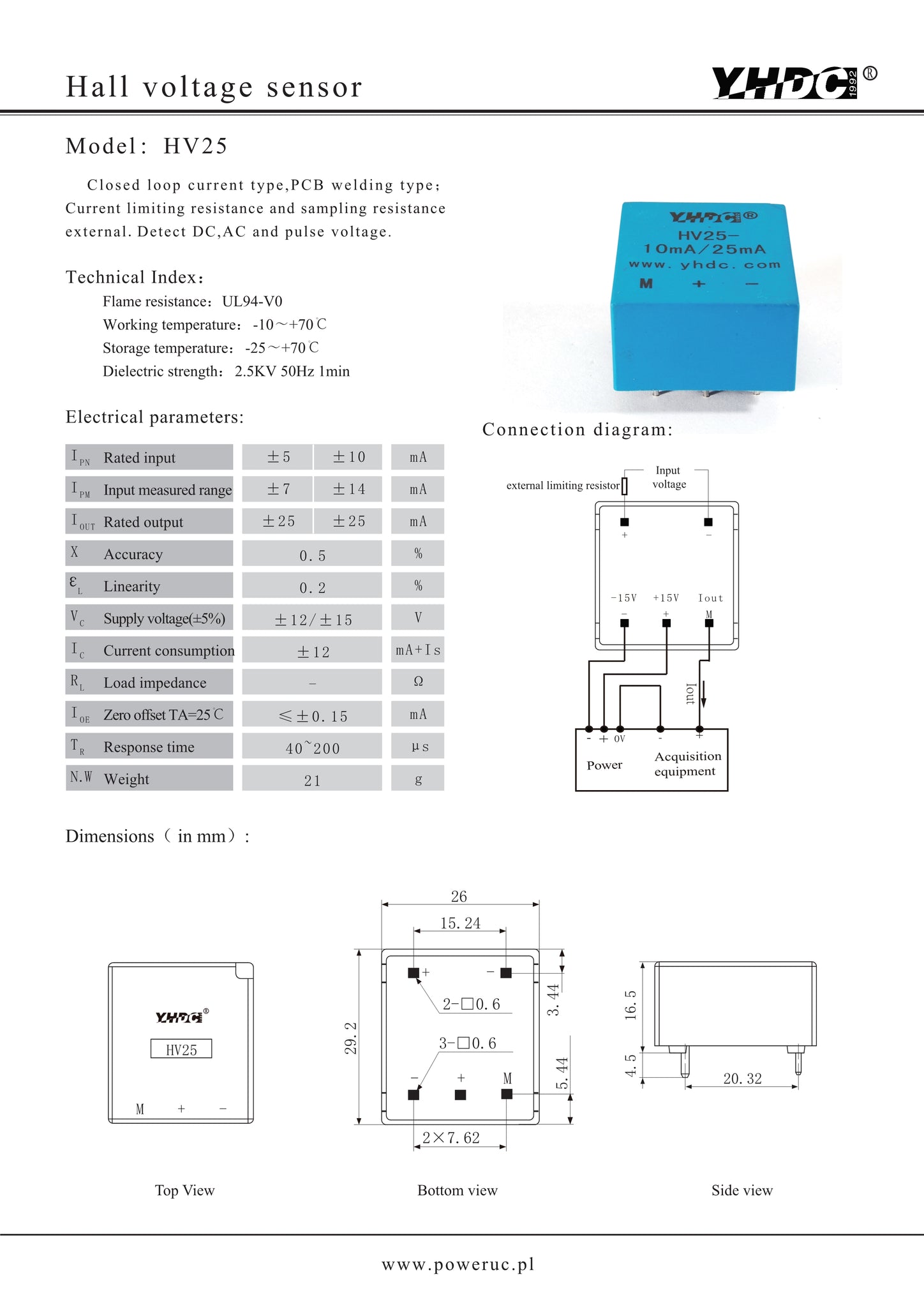

Electric parameters:
