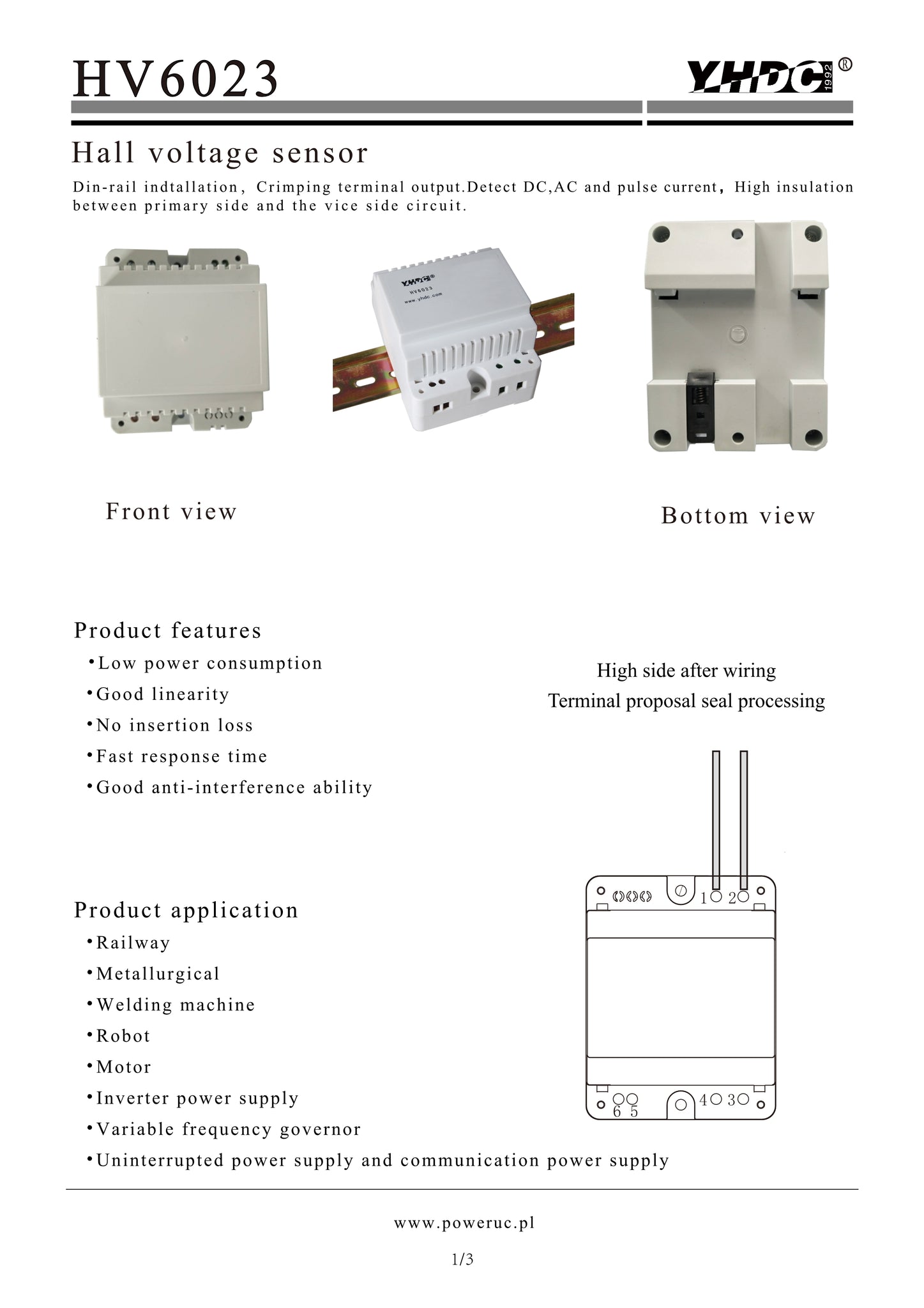

Voltage sensor HV6023 Rated input ±50V ±100V ±200V ±300V ±400V ±500V Rated output ±5V

PowerUC

Shipping calculated at checkout.

Quantity

Only 0 left!

Will be in stock after

Sub-plate mounting type,Crimping terminal input/output; Current limiting resistance and sampling resistance built-in. Detect DC,AC and pulse voltage.

Technical index:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Dielectric strength：3.5KV 50Hz 1min

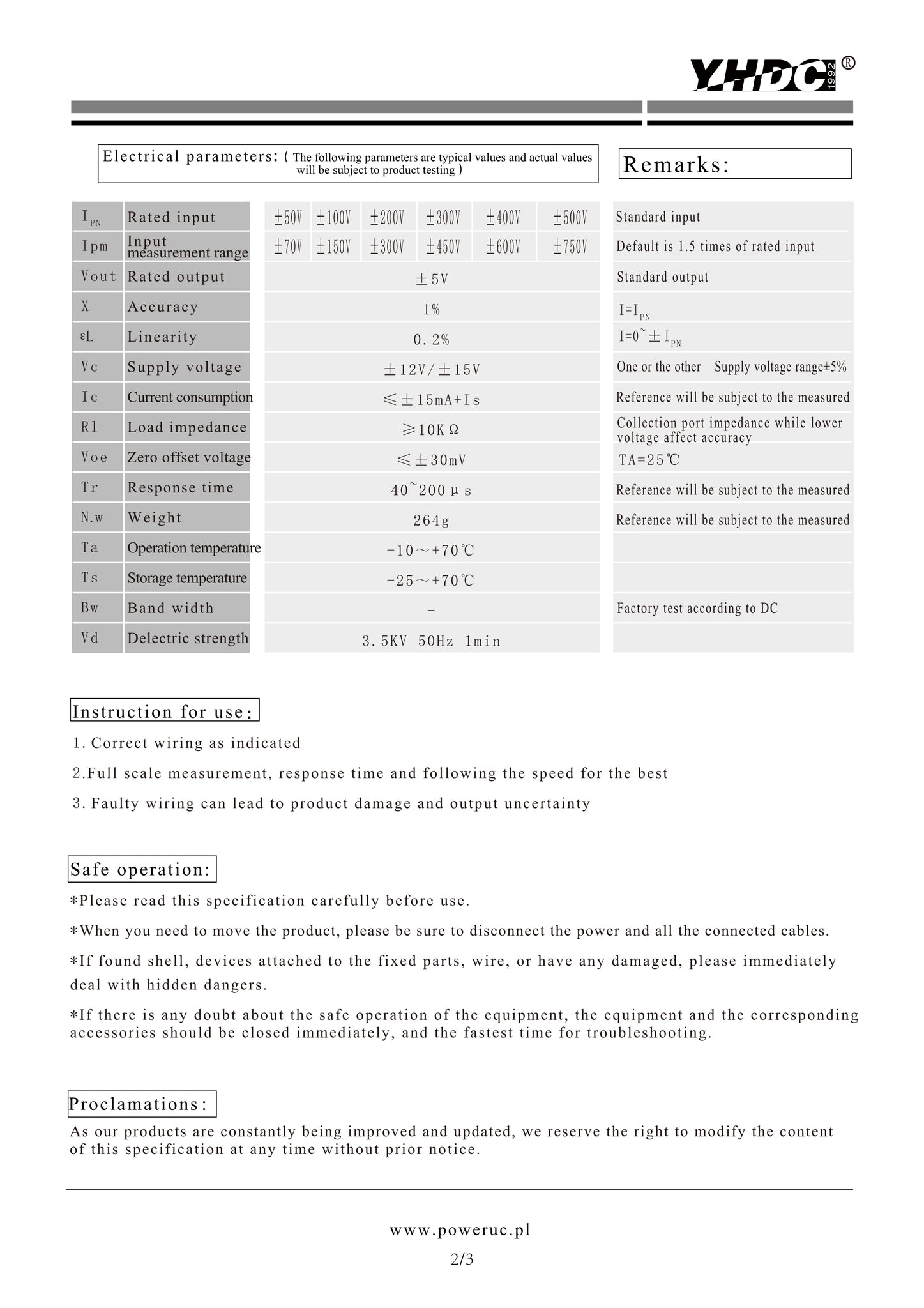

Electric parameters:

DOWNLOAD
